Daewoo KOC-1C0KB Service Manual

36

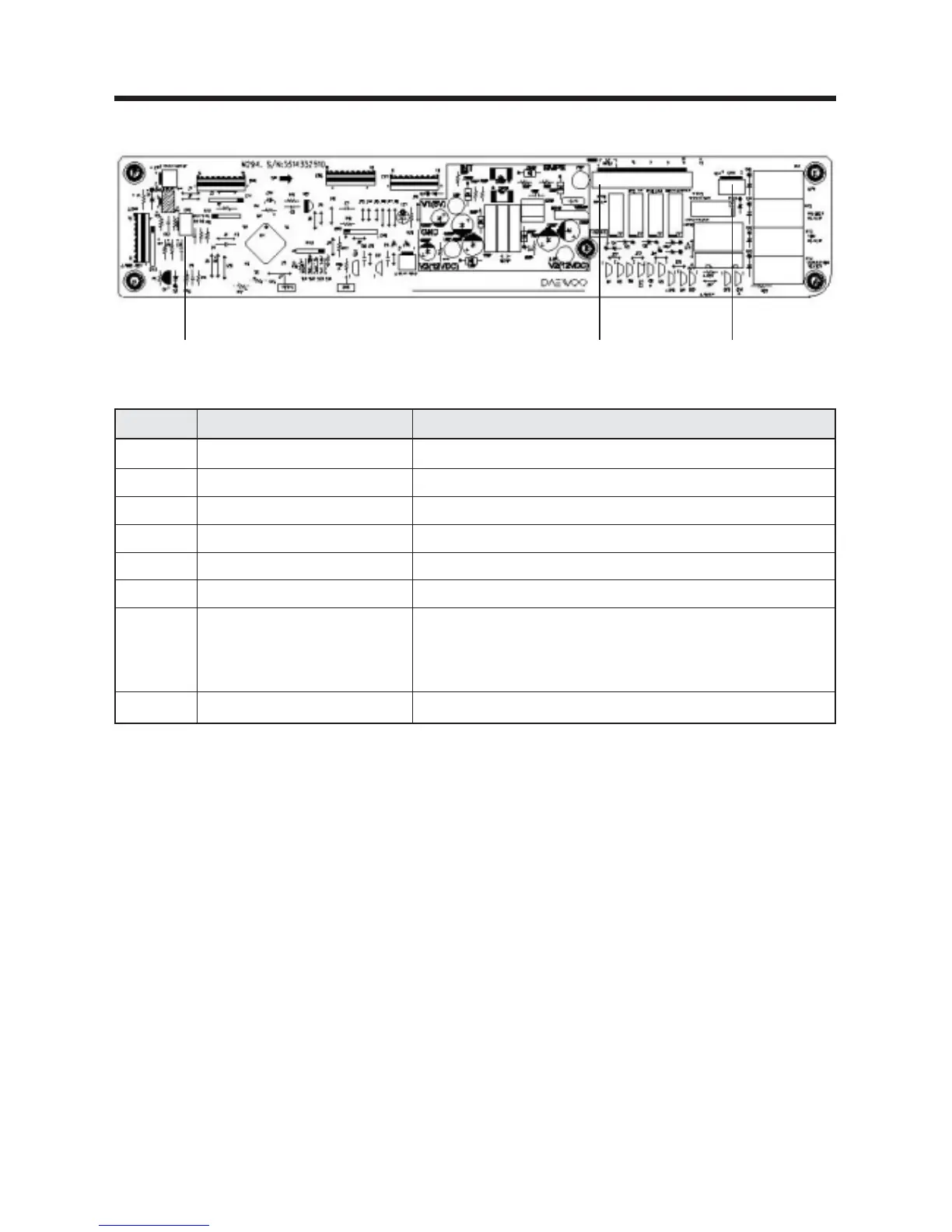

14. PRINTED CIRCUIT BOARD
1 MW R ELAY Control M/W
2 HALOGEN HEATER RELAY Control halogen heater (side heater)
3 TOP HEATER RELAY Control top heater
4 CONVECTION RELAY Control back heater
5 SLOW ACTING RELAY Prevent the transient current (while)operating M/W
6 DOM Let a micon decide Open and close of door
7 SUB R ELAY
8 THERMISTER Temperature sensor
LOCATION PART NAME FUNCTION
MAIN PCB
NO. 1 & 3 : Supply power to PCB
NO. 5 : Convection motor
NO. 7 : Blower-Motor
NO. 9 : Lamp
8 7 6
5
1
2
3
4
