Dahua VTO4202F Series User Manual

Installation 13
3.2.2 Vertical Mounting

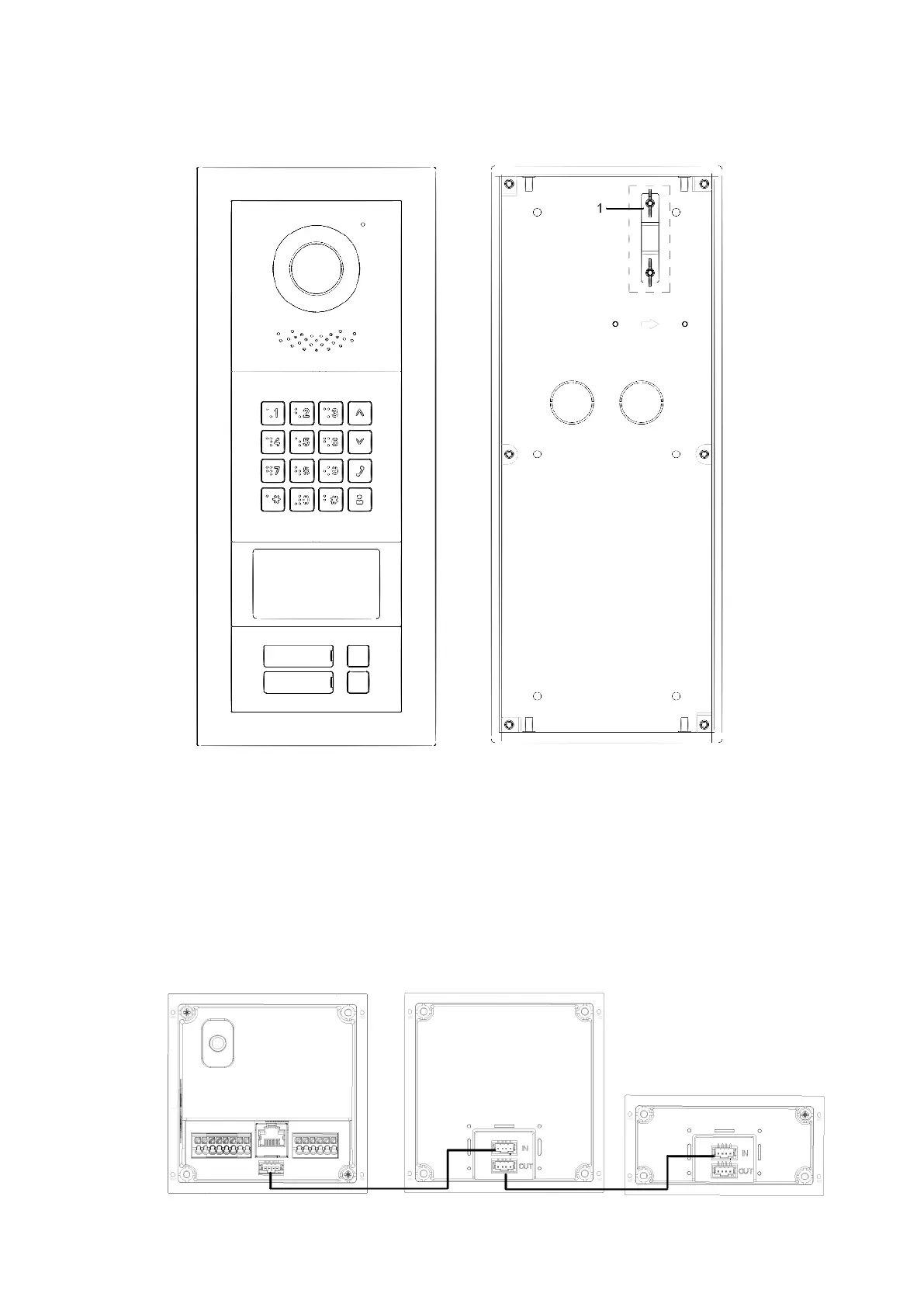

Vertical mounting illustrations Figure 3-6
When the VTO is vertically mounted, make sure that the tamper switch on the rear panel
(marked with "1" in Figure 3-5) is retracted so that once the VTO is dismantled, tamper switch
will be released, and then alarms will be triggered. The alarm will keep ringing for 15 seconds.
Cascade Connection 3.3
To make modules work collaboratively, cascade connection is needed. See a cascade
connection example in Figure 3-7.
Cascade connection Figure 3-7
