Daikin 2MXS-N Series User Manual

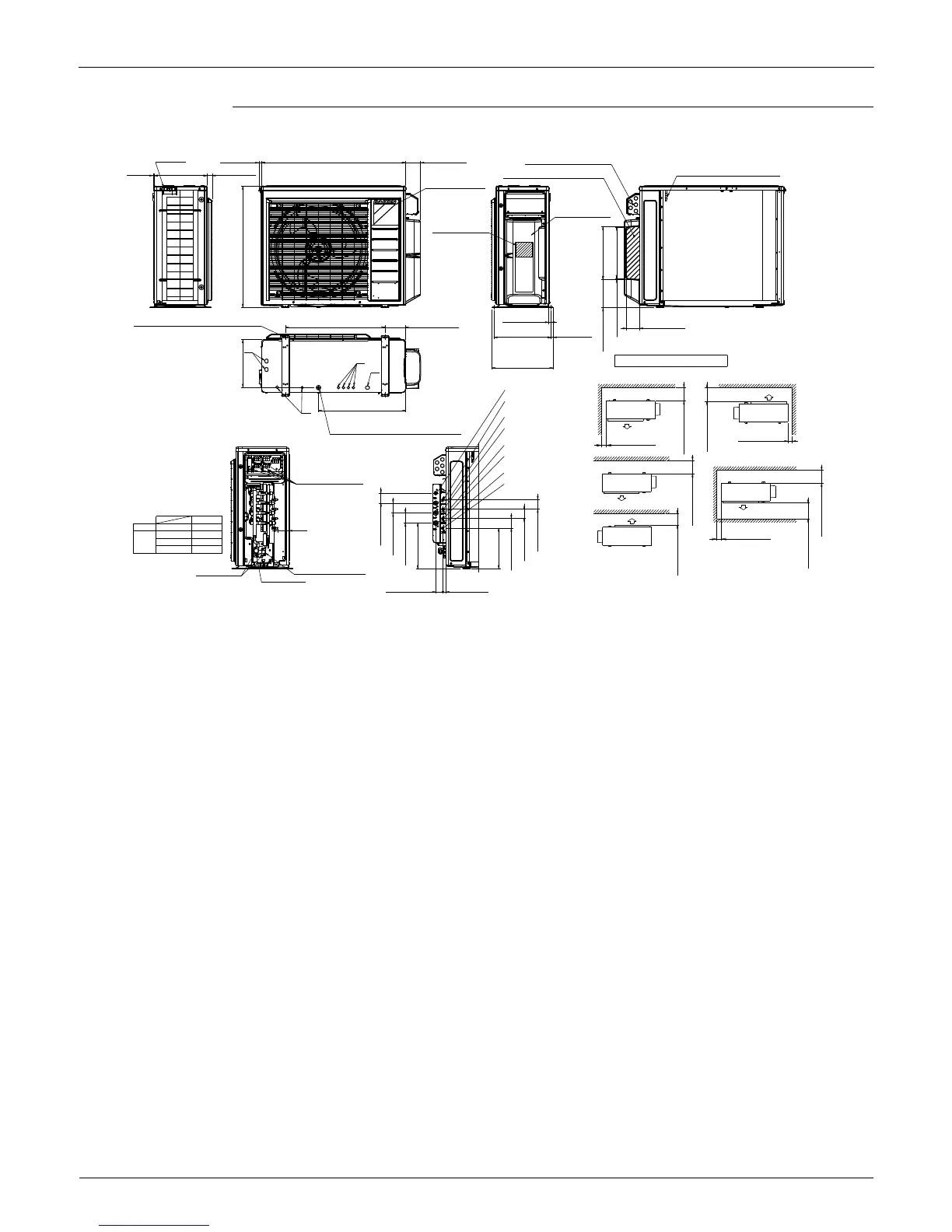

Dimensions EDUS121503A
82 Multi-Split Type Air Conditioners 2/3/4MXS-N Series
4MXS36NMVJU
9/16 (14) 34-1/4 (870)
HANDLE
1-3/16 (30)
28-15/16 (735)
4-15/16 (125)
*B
*A
*B
*A
1-15/16 (50)
1-15/16 (50)
13-3/4 (350)
3-15/16 (100)
3-15/16 (100)
A
3-15/16 (100)
A
2-9/16 (65)
LIQUID
3-11/16 (93)
1-15/16 (50)
3-5/16 (84)
GAS
3-1/8 (80)
13-3/4 (350)
13-3/4 (350)
UNIT: inch (mm)
1/4 (7)
12-5/8 (320)
3-9/16 (90)
BRAND NAME PLATE
MANUFACTURER'S
LABEL
9/16 (14.5)
13-5/8 (346)
14-1/2 (368)
(INSTALLATION LEG
PITCH)
7/16 (11)
STOP VALVE COVER
ELECTRIC WIRE INTAKE
INTERCONNECTING PIPING
OUTDOOR AIR THERMISTOR
12-11/16 (322)
12-1/8 (308)
6-5/8 (169)
1/4 (7)
3-1/16 (78)
MINIMUM SPACE FOR AIR PASSAGE
WALL HEIGHT ON AIR OUTLET SIDE = LESS THAN 47-1/4 (1200)
2-1/4 (57)
2-1/4 (57)
2-1/4 (57)
9-5/8 (245)
10-7/8 (276)
2-3/8 (60)
2-3/8 (60)
2-3/8 (60)
1-11/16 (43) 11/16 (18)
<<ROOM A>>
GAS PIPE
(φ3/8 (φ9.5) SINGLE UNION)
<<ROOM B>>
GAS PIPE
(φ1/2 (φ12.7) SINGLE UNION)
<<ROOM C>>
GAS PIPE
(φ1/2 (φ12.7) SINGLE UNION)
<<ROOM D>>
GAS PIPE
(φ5/8 (φ15.9) SINGLE UNION)
LIQUID PIPE
(φ1/4 (φ6.4) SINGLE UNION)
LIQUID PIPE
(φ1/4 (φ6.4) SINGLE UNION)
LIQUID PIPE
(φ1/4 (φ6.4) SINGLE UNION)
LIQUID PIPE
(φ1/4 (φ6.4) SINGLE UNION)
5-GROUND TERMINALS
LIQUID STOP VALVE
SERVICE PORT
GAS STOP VALVE
IN CASE OF REMOVING STOP VALVE
COVER AND TERMINAL STRIP COVER
φ1/4 (φ6.4)
φ3/8 (φ9.5)
φ1/2 (φ12.7)
φ5/8 (φ15.9)
DRAIN OUTLET
(I.D φ5/8 (φ15.9) HOSE FOR CONNECTION
WITH DRAIN JOINT)
20-11/16 (525)
*A, *B DRAIN OUTLET WHEN
CONDUCTING CONCENTRATED
DRAIN PIPING WORK, ATTACH THE
SUPPLIED DRAIN CAPS.
11-7/16 (291)
23-5/8 (600)
4-HOLES FOR FOUNDATION BOLTS
5/16 OR 3/8 (M8 OR M10)
