SiUS121736EA Wireless Remote Controller Kit for FFQ Series
Printed Circuit Board Connector Wiring Diagram 42

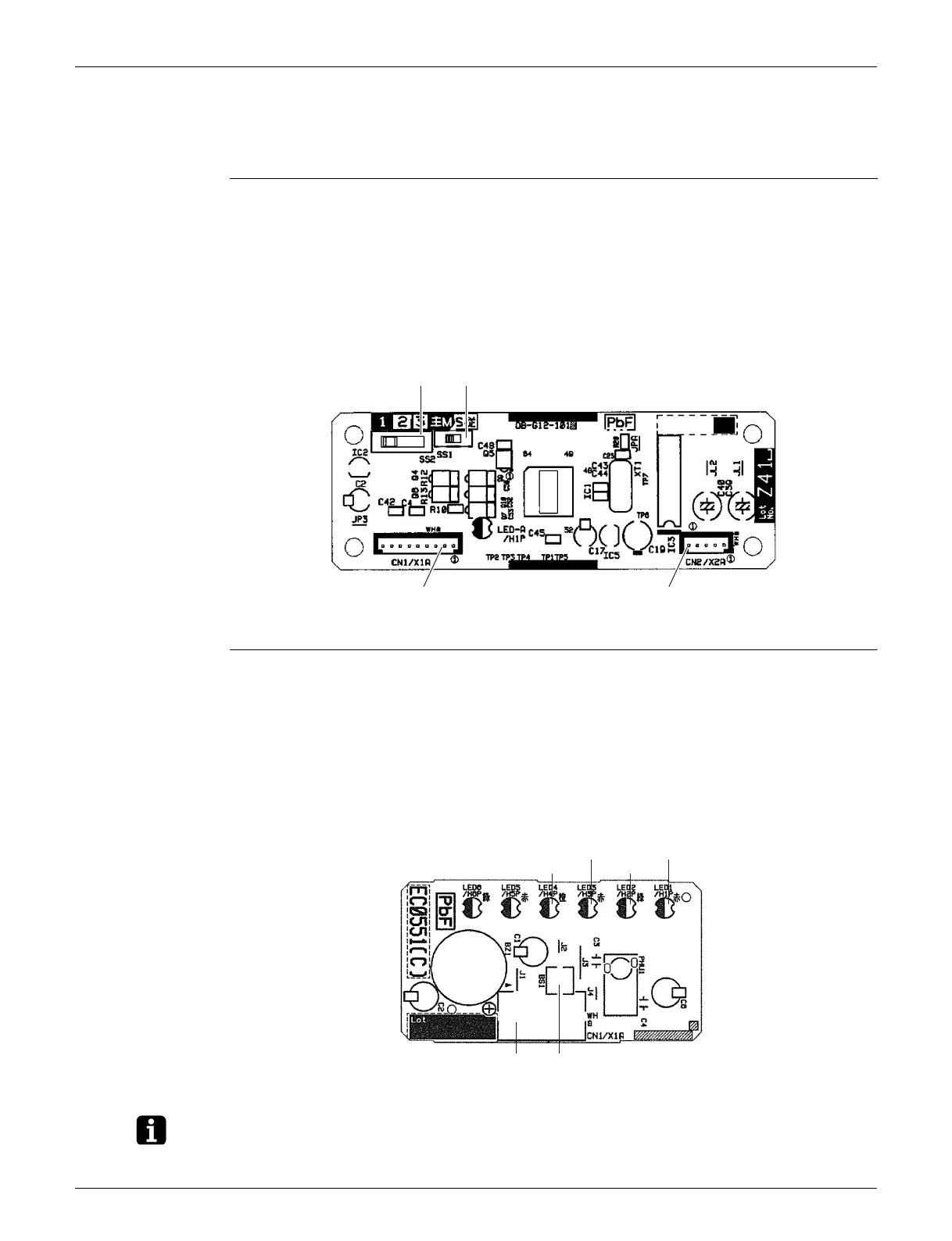

5. Wireless Remote Controller Kit for FFQ Series
5.1 BRC082A41W, BRC082A42W(S)
Transmitter
Board (A2P)
Receiver (A3P)
 LED5 and LED6 do not function.
Note The symbols in the parenthesis are the names on the appropriate wiring diagram.
1) X1A Connector for receiver (A3P)
2) X2A Connector for control PCB (A1P)
3) SS1 MAIN/SUB setting switch
∗ Refer to page 246 for details.
4) SS2 Address setting switch
∗ Refer to page 246 for details.
3P156326-3
X2A
SS2
SS1
X1A
1) X1A Connector for transmitter board (A2P)
2) BS1 Emergency operation switch
3) LED1 (H1P) LED for operation (red)
4) LED2 (H2P) LED for timer (green)
5) LED3 (H3P) LED for filter cleaning sign (red)
6) LED4 (H4P) LED for defrost operation (orange)
3P174795-1
LED 4
X1A BS1
LED 3
LED 2
LED 1
