Accessory package
Machine nameplate
Model name
Type of refrigerant
Refrigerant line
Manufacture No.
Oil Cooling Unit
Heat
Do not touch the external casing of
the main unit or internal equipment
during the operation (otherwise,
you may burn yourself).
Cut
When you carry out the maintenance
work, wear gloves to prevent your hands
from being cut by the heat exchanger.
Electrical Hazard
You may be seriously injured or killed
because of an electric shock or fire. Do not
open the cover of electric component box
during the operation.
Maintenance and inspection should be
carried out by qualified personnel after the
power supply is turned OFF.
Installation
Installation
Procedure
Oil Cooling Unit and Accessories
Check the following items:
∗ Some models do not come with accessories.

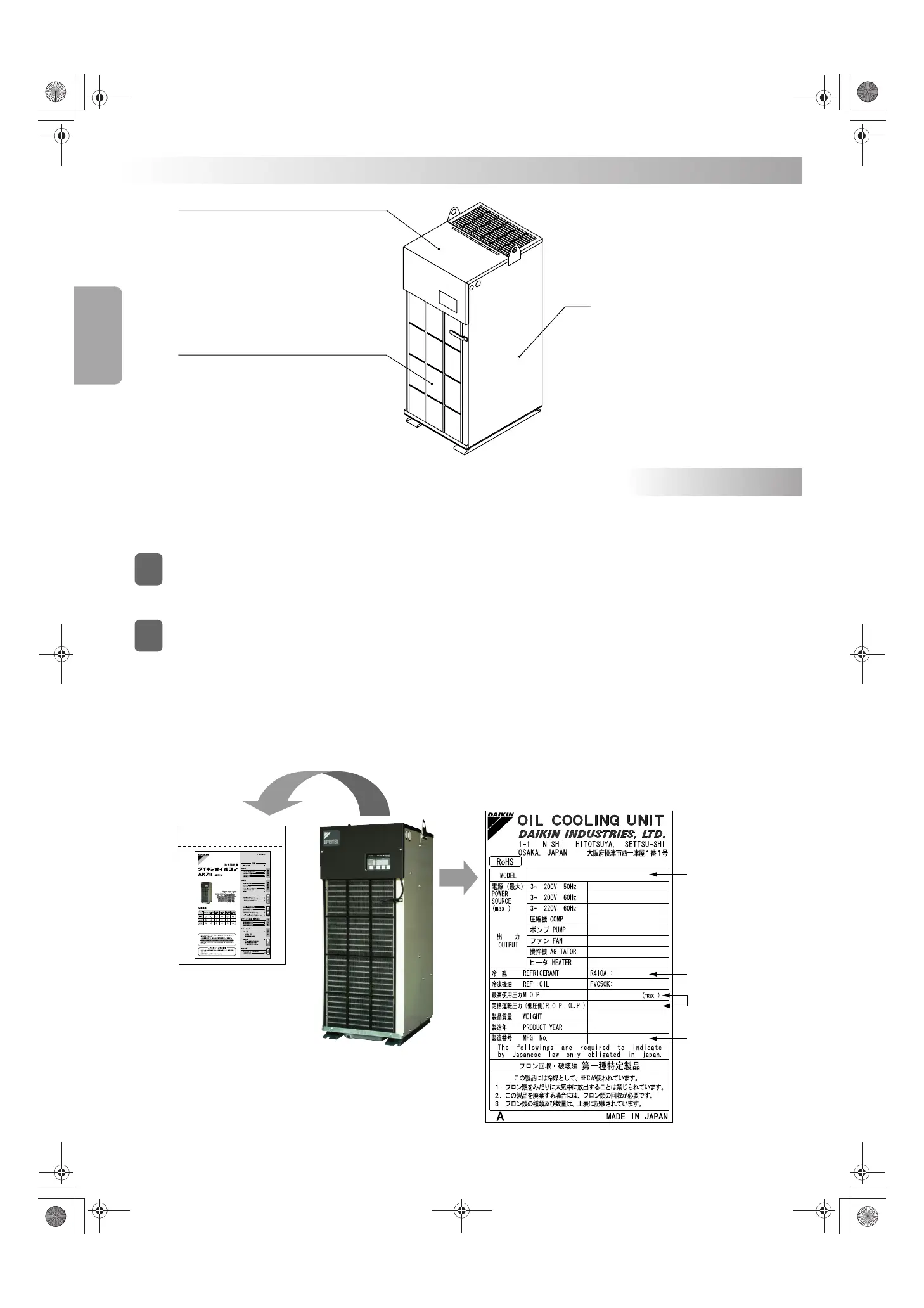

Check the model name and serial No. (MFG. No.) on the nameplate attached to the right side of the Oil Cooling Unit.
Oil Cooling Unit
1
An accessory package
∗1
is attached to the top plate of the Oil Cooling Unit.
Keep this manual in place where users can read it whenever required.
Accessories
2
∗1: Before operation, be sure to remove the accessory package. Otherwise, the package blocks exhaust air flow, resulting in cooling
capacity deterioration.
∗ The attachment position of the nameplate (including the machine label) may be different for some models.
