Daikin Altherma 3 R W Series User Manual

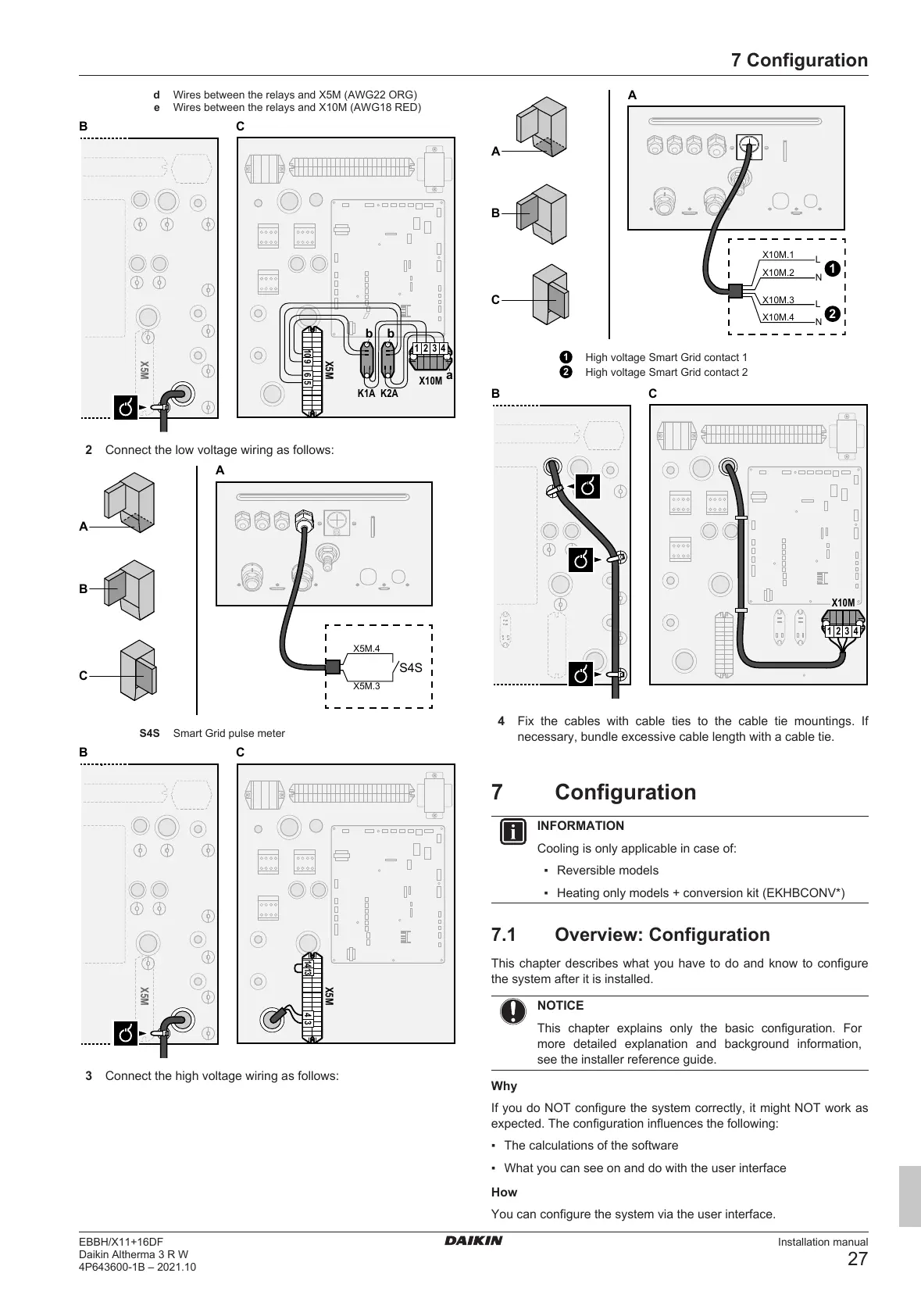

7 Configuration
Installation manual
27
EBBH/X11+16DF
Daikin Altherma 3 R W
4P643600-1B – 2021.10
d Wires between the relays and X5M (AWG22 ORG)
e Wires between the relays and X10M (AWG18 RED)
CB
X5M
X5M
K1A K2A
X10M
910 56
1 2 3 4
a
b b
2 Connect the low voltage wiring as follows:
B
C
A
A
X5M.4
X5M.3
S4S
S4S Smart Grid pulse meter
CB
X5M
X5M
34
1314
3 Connect the high voltage wiring as follows:
B
C
A
A
L
N
L
N
X10M.1
X10M.2
X10M.3
X10M.4
2
1
1
High voltage Smart Grid contact 1
2
High voltage Smart Grid contact 2
CB
X10M
1 2 3 4
4 Fix the cables with cable ties to the cable tie mountings. If
necessary, bundle excessive cable length with a cable tie.
7 Configuration
INFORMATION
Cooling is only applicable in case of:
▪ Reversible models
▪ Heating only models + conversion kit (EKHBCONV*)
7.1 Overview: Configuration
This chapter describes what you have to do and know to configure
the system after it is installed.
NOTICE
This chapter explains only the basic configuration. For
more detailed explanation and background information,
see the installer reference guide.
Why
If you do NOT configure the system correctly, it might NOT work as
expected. The configuration influences the following:
▪ The calculations of the software
▪ What you can see on and do with the user interface
How
You can configure the system via the user interface.
