4 | Components
Service manual
48
RXJ20~50A + FTXJ-A(W)(S)(B)
Split Emura 3 R32
ESIE22-04 – 2022.04
4 Components
CAUTION
When replacing a component ALWAYS make sure the correct spare part for your unit
is installed.

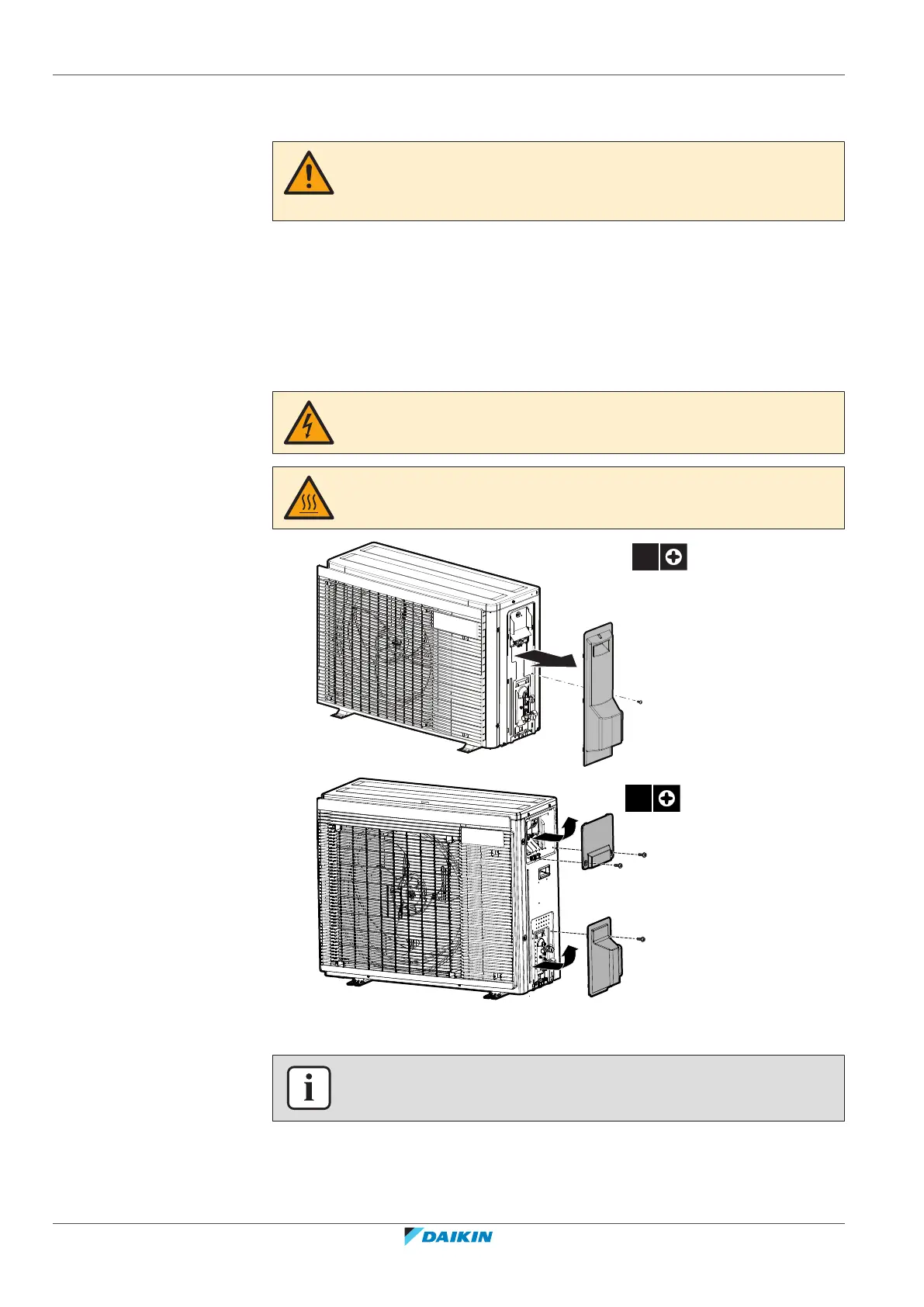

4.1 Plate work
4.1.1 Outdoor unit
To remove the refrigerant connection cover
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING/SCALDING
1×
1
2
2
1
1
3×
To remove the top plate
INFORMATION
This procedure is just an example and may differ on some details for your actual unit.
Prerequisite: Stop the unit operation via the user interface.
1 Turn OFF the respective circuit breaker.
