7 | Technical data
Service manual
78
RXJ20~50A + FTXJ-A(W)(S)(B)
Split Emura 3 R32
ESIE22-04 – 2022.04
7.2 Wiring diagram
7.2.1 Wiring diagram: Indoor unit

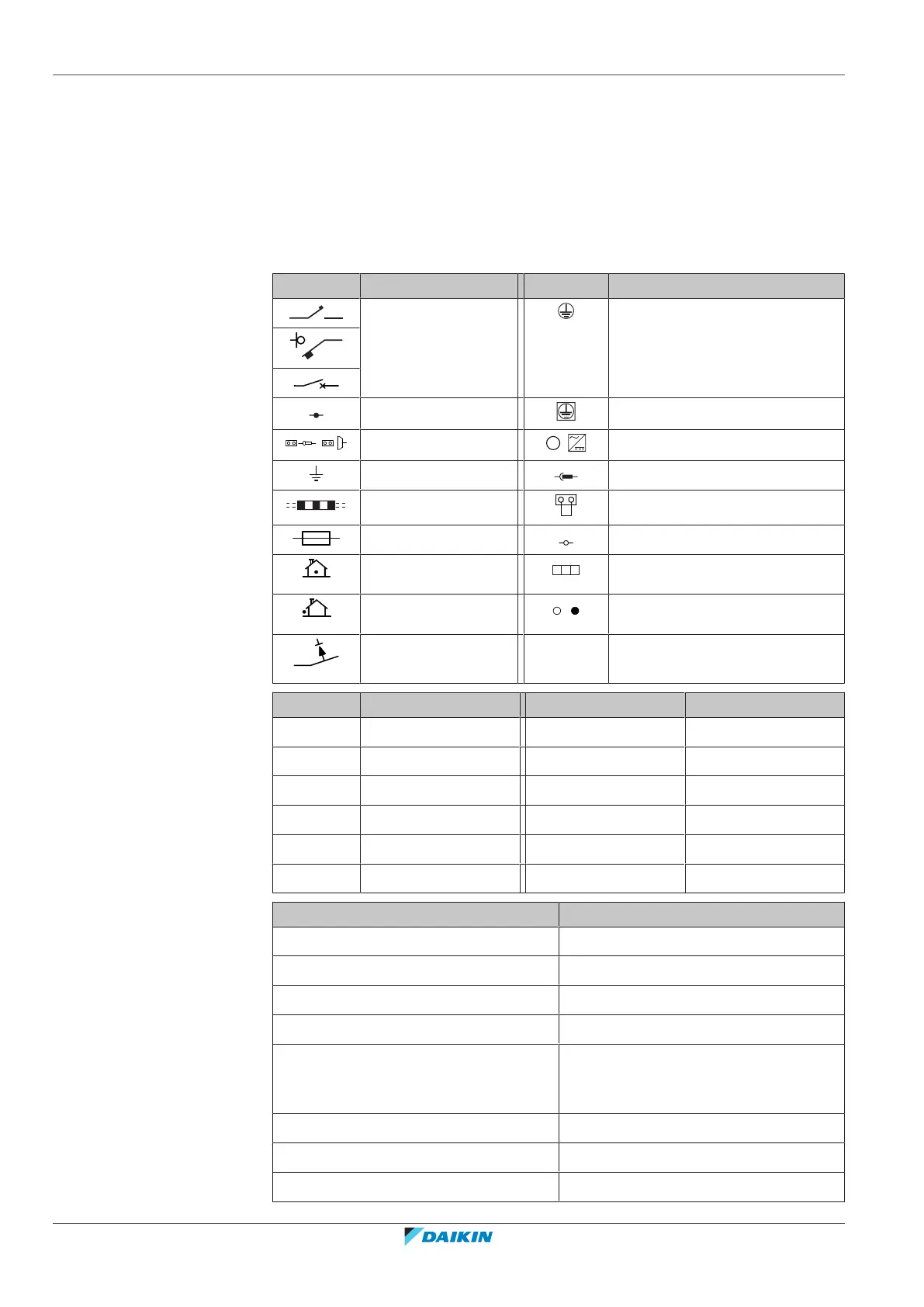

Unified wiring diagram legend
For applied parts and numbering, refer to the wiring diagram on the unit. Part
numbering is by Arabic numbers in ascending order for each part and is
represented in the overview below by "*" in the part code.
Symbol Meaning Symbol Meaning
Circuit breaker Protective earth
Connection Protective earth (screw)
,
Connector
A
,
Rectifier
Earth Relay connector
Field wiring Short-circuit connector
Fuse Terminal
INDOOR
Indoor unit Terminal strip
OUTDOOR
Outdoor unit Wire clamp
Residual current
device
Symbol Colour Symbol Colour
BLK Black ORG Orange
BLU Blue PNK Pink
BRN Brown PRP, PPL Purple
GRN Green RED Red
GRY Grey WHT White
SKY BLU Sky blue YLW Yellow
Symbol Meaning
A*P Printed circuit board
BS* Pushbutton ON/OFF, operation switch
BZ, H*O Buzzer
C* Capacitor
AC*, CN*, E*, HA*, HE*, HL*, HN*, HR*,
MR*_A, MR*_B, S*, U, V, W, X*A,
K*R_*, NE
Connection, connector
D*, V*D Diode
DB* Diode bridge
DS* DIP switch
draft–22/04/2022 08:50

Daikin Emura 3 Series Specifications

General

Refrigerant	R32
Sound Pressure Level (Indoor Unit)	19 dB - 42 dB
Noise Level (Indoor Unit)	19 dB - 42 dB
Features	Eco-friendly refrigerant
Outdoor Unit Dimensions (H x W x D)	550 mm x 780 mm x 285 mm
Outdoor Unit Weight	32 kg
Power Supply	220-240 V, 50 Hz
Energy Efficiency Class (Cooling)	Up to A+++ (depending on model)
Energy Efficiency Class (Heating)	Up to A+++ (depending on model)
