Model Names of Outdoor Units, Control Box and Expansion Valve Kit ESIE09-05
4 General Information
1.3 Expansion Valve Kit

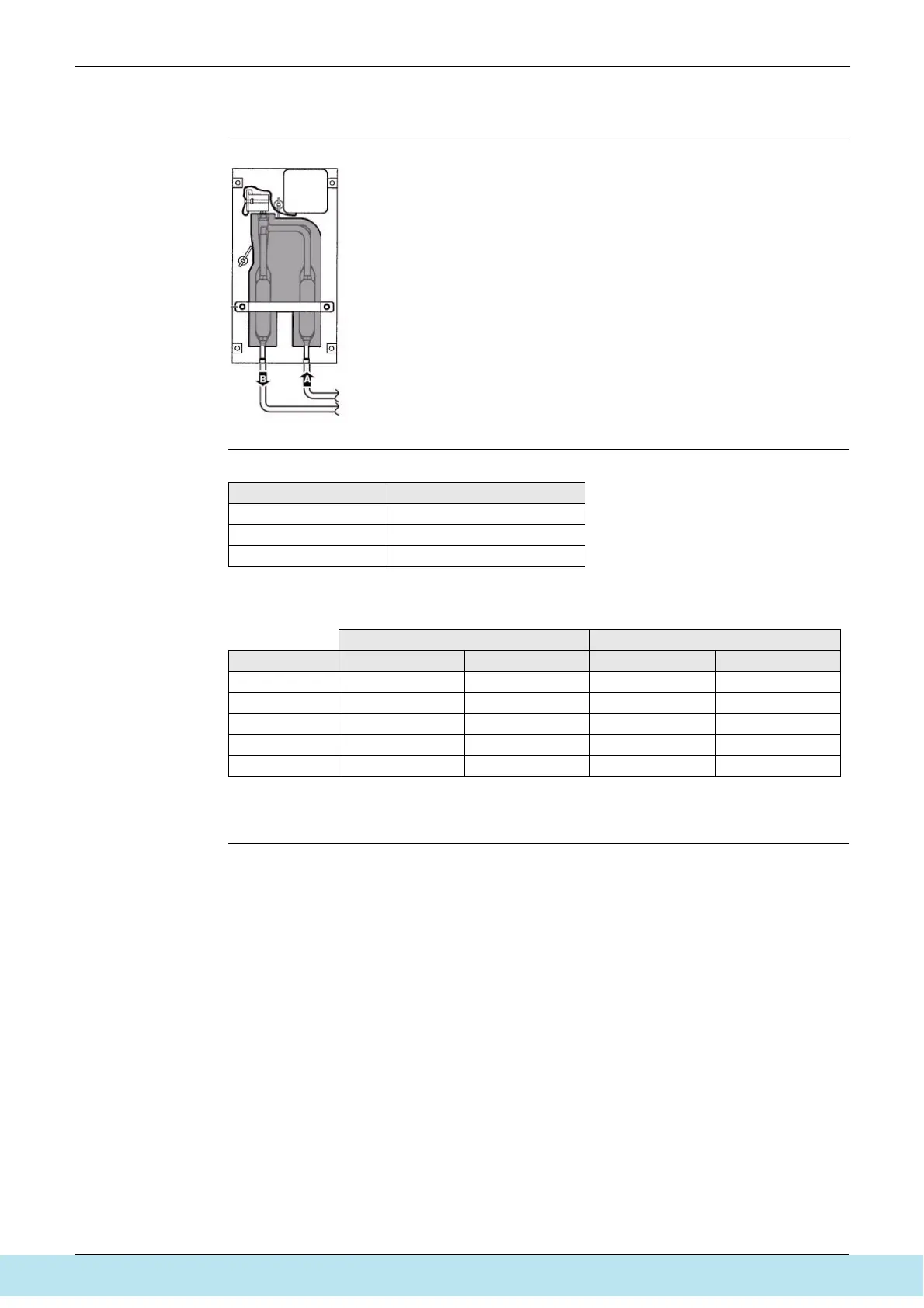

Outlook Expansion valve kit installation drawing:
Model name Limits for outdoor unit (expansion valve kit).
Depending on the heat exchanger, a connectable EKEXV (expansion valve kit) must be
selected to these limitations.
Saturated suction temperature (SST) = 6°C, SH (superheat) = 5 K, air temperature = 27°C DB /
19°C WB.
Outdoor unit (class) EKEXV kit
100 EKEXV63~125
125 EKEXV63~140
140 EKEXV80~140
Allowed heat exchanger volume (dm
3
) Allowed heat exchanger capacity (kW)
EKEXV class Minimum Maximum Minimum Maximum
63 1.66 2.08 6.3 7.8
80 2.09 2.64 7.9 9.9
100 2.65 3.30 10.0 12.3
125 3.31 4.12 12.4 15.4
140 4.13 4.62 15.5 17.6
