When a password is active, pressing UP+DOWN it is possible to reset all passwords (to make the access to protected
values not accessible anymore without the re-insertion of the password). In any main loops it is possible to change the
password for the corresponding level (Unit Config for Tech password, User Setpoint for Operator password and Maint
Setpoint for Manager password).
4.1 Mask tree

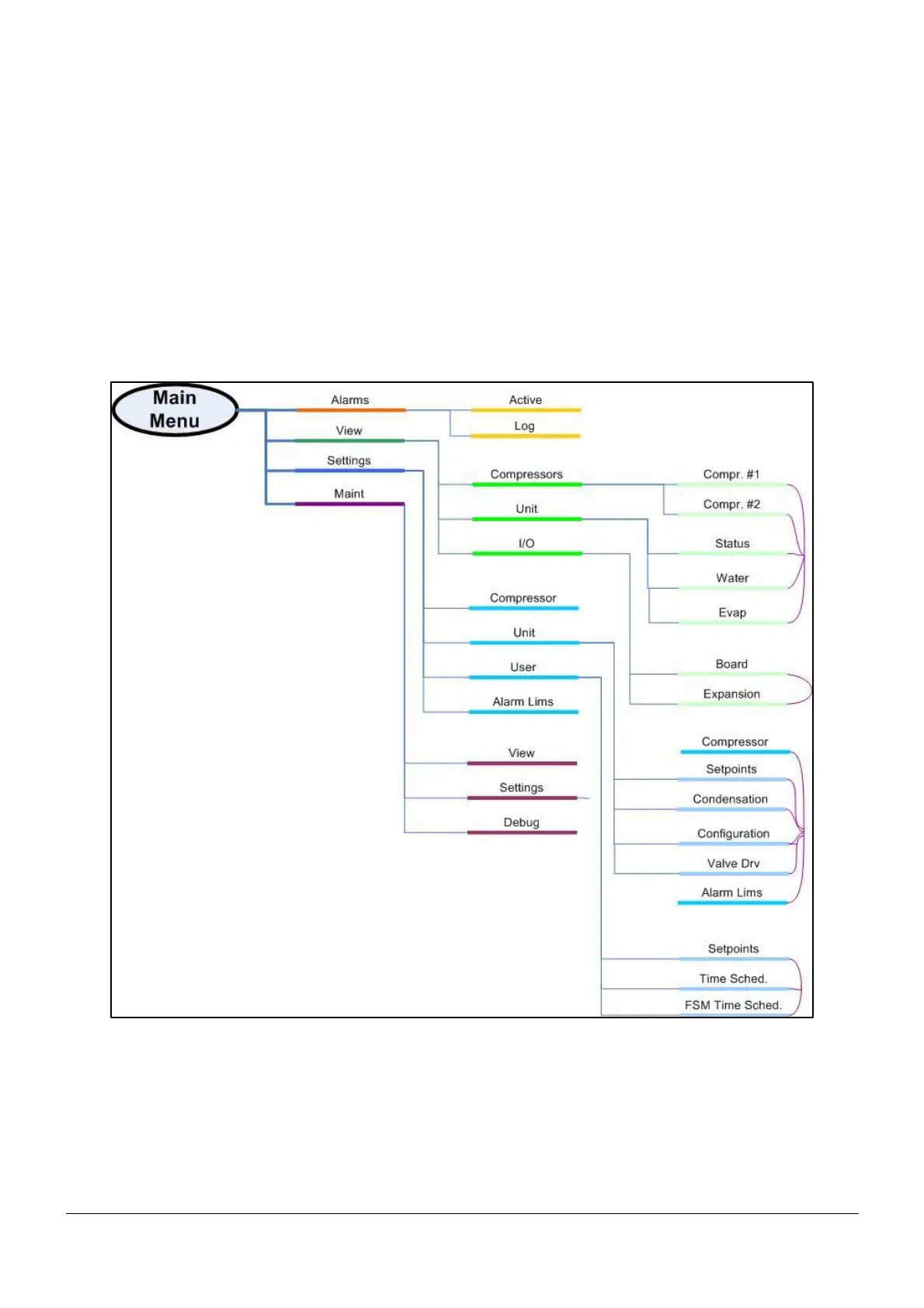

In the picture below the structure of the mask tree beginning from the main menu is shown. Masks loops of the same group
of parameters can be accessed using left and right arrows creating also horizontal loops. Parameters within a same
horizontal loop could accessed with a unique password. In violet the loop horizontally linked are shown. All loops could be
accessed directly from the main menu. Once in the selected loop the other loops, with the same colour in the previous
scheme, could be reached with left and right arrows. This will mean for example that from the loop Unit Configuration it will
be possible to move to Unit Setpoint pressing the right arrow. Loops with no link with other loops could be accessed only
from the menu.
HMI structure
