Display
5

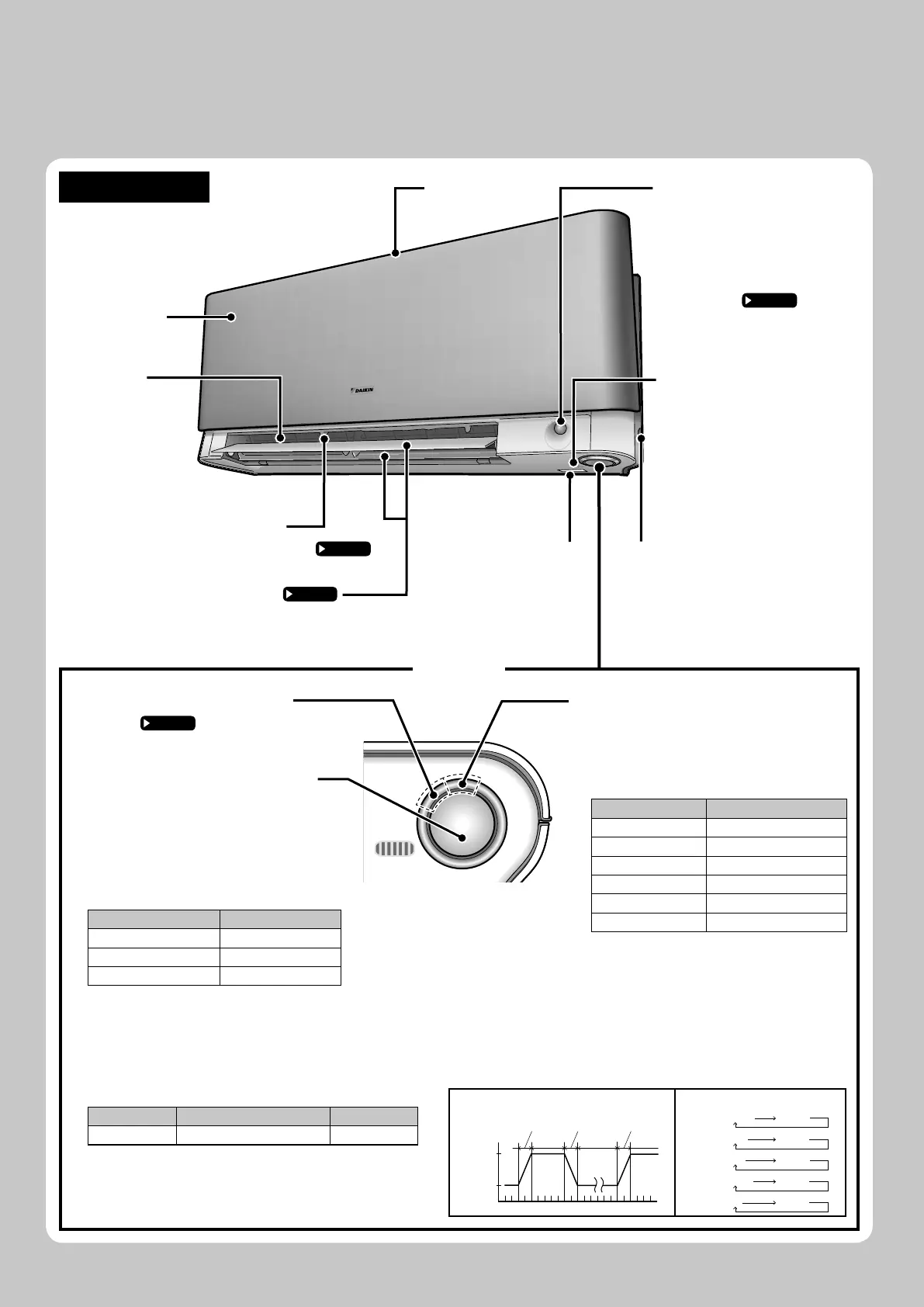

Name of Parts
Indoor Unit
Appearance of the indoor unit may differ.•
Air inlet
Front panel
Air outlet
Louvers (vertical blades)
The louvers are inside of the air outlet. •
Page 13
INTELLIGENT EYE
sensor
It detects the movements of •
people and automatically
switches between normal
operation and energy saving
operation.
Page 16
Flaps (horizontal blades)
Page 13
INTELLIGENT EYE lamp
(green)
Page 16
Signal receiver and Indoor
unit ON/OFF switch
Signal receiver
It receives signals from the remote •
controller.
When the unit receives a signal, you will •
hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Indoor unit ON/OFF switch
Press this switch once to start operation.•
Press once again to stop it.
The operation mode refer to the following table.•
Mode Temperature setting Airfl ow rate
AUTO 25°C AUTO
This switch is useful when the remote controller is •
missing.
TIMER lamp
When operation by timer has been set, the multi-monitor lamp •
periodically changes to orange. After lighting orange for about
5 seconds, it returns to the colour of the operation mode.
The multi-monitor lamp will turn orange on and off in cyclic
manner while the air conditioner is not in operation.
TIMER lamp colour
TIMER lamp colour : For COOL
Orange
Blue
3 min.
5 sec. 5 sec.
2 sec.
2 sec. 2 sec.
Green OrangeDRY :
COOL :
Blue Orange
HEAT :
Red Orange
FAN :
White Orange
Stop :
Off Orange
Model name
plate
Panel tab
Room temperature
sensor
It detects the air temperature •
around the unit.
Multi-monitor lamp and
TIMER lamp
Multi-monitor lamp
The lamp colour changes according to •
the operation.
Operation Multi-monitor lamp
AUTO Red/Blue
DRY Green
COOL Blue
HEAT Red
FAN White
TIMER Orange
01_EN_3P255639-2A.indd 501_EN_3P255639-2A.indd 5 2/16/2011 2:43:02 PM2/16/2011 2:43:02 PM
