14 EMBEDDED WEB INTERFACE
The MicroTech controller has an embedded web interface that can be used to monitor the unit when connected to a local
network. It is possible to configure the IP addressing of the MicroTech as a fixed IP or DHCP depending on the network
configuration.
With a common web browser, a PC can connect with the unit controller entering the IP address of the controller or the host
name, both visible in the View/Set Unit – Controller IP Setup page accessible with the Maintenance password.

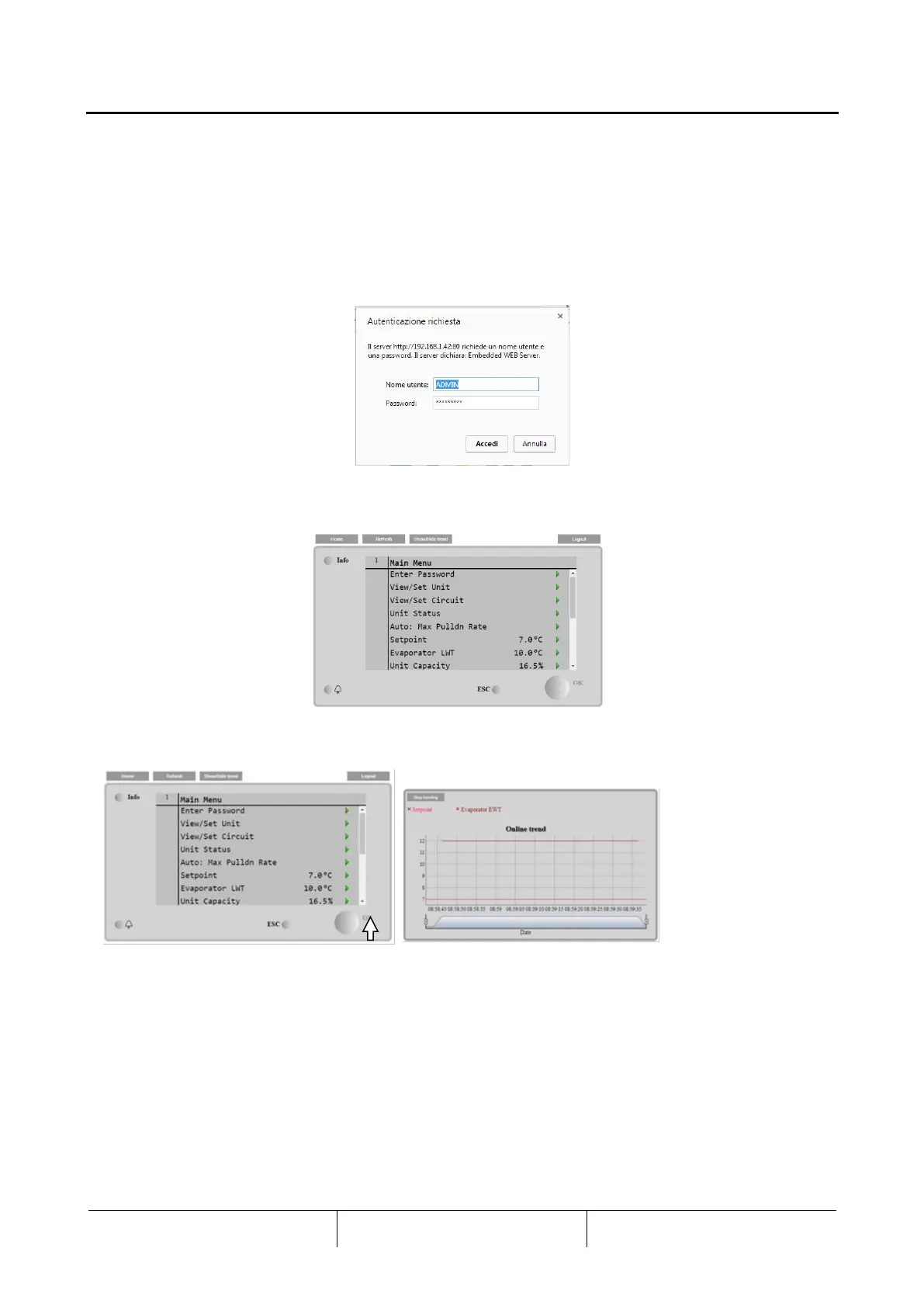

When connected, it will be required to enter a user name and a password. Enter the following credential to get access to
the web interface:
User Name: ADMIN
Password: SBTAdmin!
The Main Menu page will be displayed. The page is a copy of the onboard HMI and follows the same rules in terms of
access levels and structure.
In addition it allows to trend log a maximum of 5 different quantities. It’s required to click on the value of the quantity to
monitor and the following additional screen will become visible:
Depending on the web browser and its version the trend log feature may not be visible. It’s required a web browser
supporting HTML 5 like for example:
• Microsoft Internet Explorer v.11,
• Google Chrome v.37,
• Mozilla Firefox v.32.
These are only an example of the browser supported and the versions indicated have to be intended as minimum versions.
