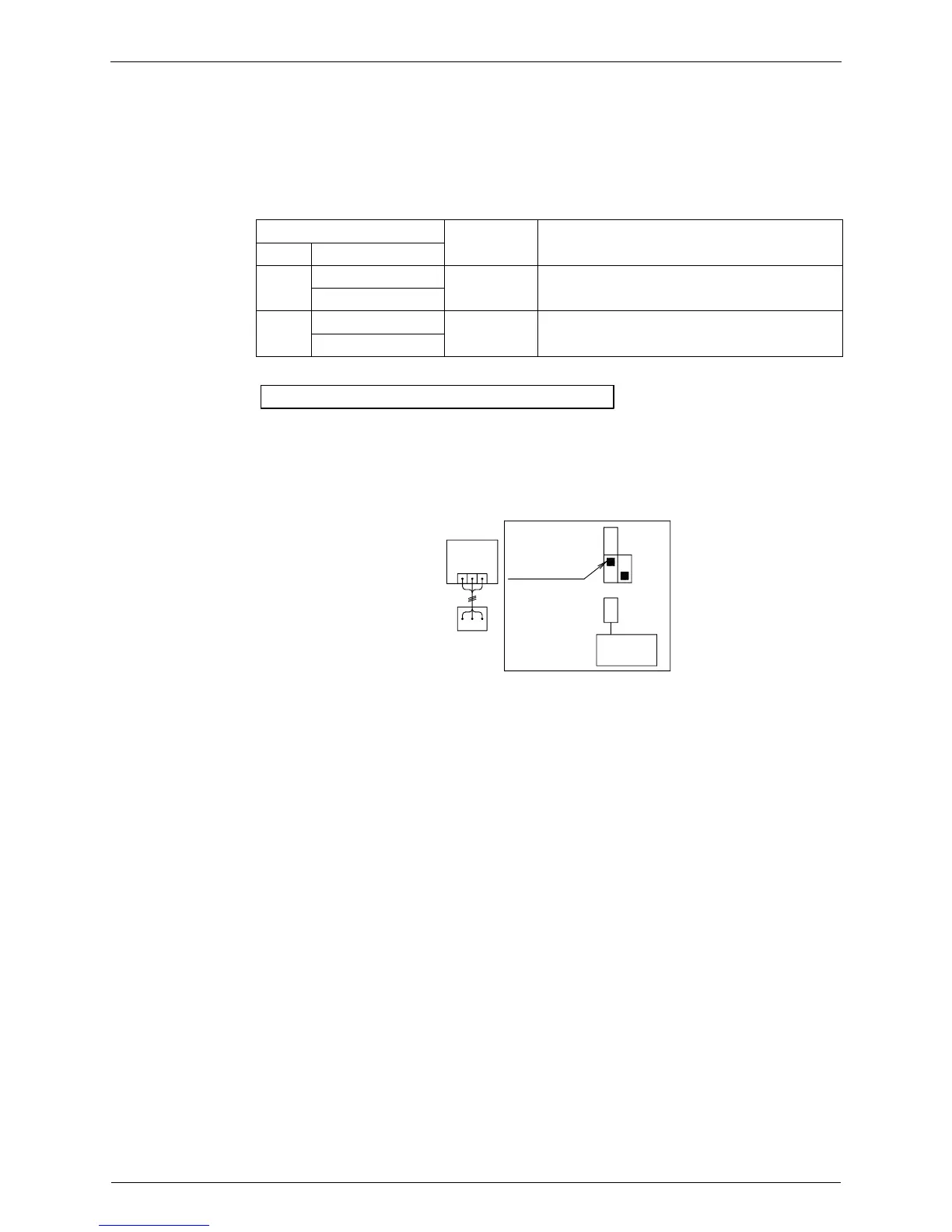

2. Field Settings
2.1 Outdoor Unit
2.1.1 Setting by Dip Switches
The following field settings are made by dip switches on PCB.
Dipswitch
Setting item Description
No. Setting
DS1-1
ON
Cool / Heat
change over
setting
Used to set cool / heat change over setting by remote
controller equipped with outdoor unit.
OFF (Factory setting)
DS1-2
ON
Not used Do not change the factory settings.
OFF (Factory setting)
A B C
A B C
A4P
A2P
DS1-1
switch knob
(R9205)
OUT
IN
ON/OFF
DS1 1 2
Cool/heat selector connection procedure
Cool/heat
selector
C/H
SELECTOR
• Set the remote controller only when changing over the operation mode between
cooling and heating using the remote controller installed in the outdoor.
1. Connect the cool/heat selector (optional accessory) to the terminals (A, B and C)
on the outdoor PCB (A4P).
2. Set the cool/heat selector switch DS1-1 from “IN (inside) ” (which is selected at the
factory before shipment) to “OUT (outside) ”.
