8 Manual Adjustment
Prior to manual adjustment, dis-
connect voltage supply.

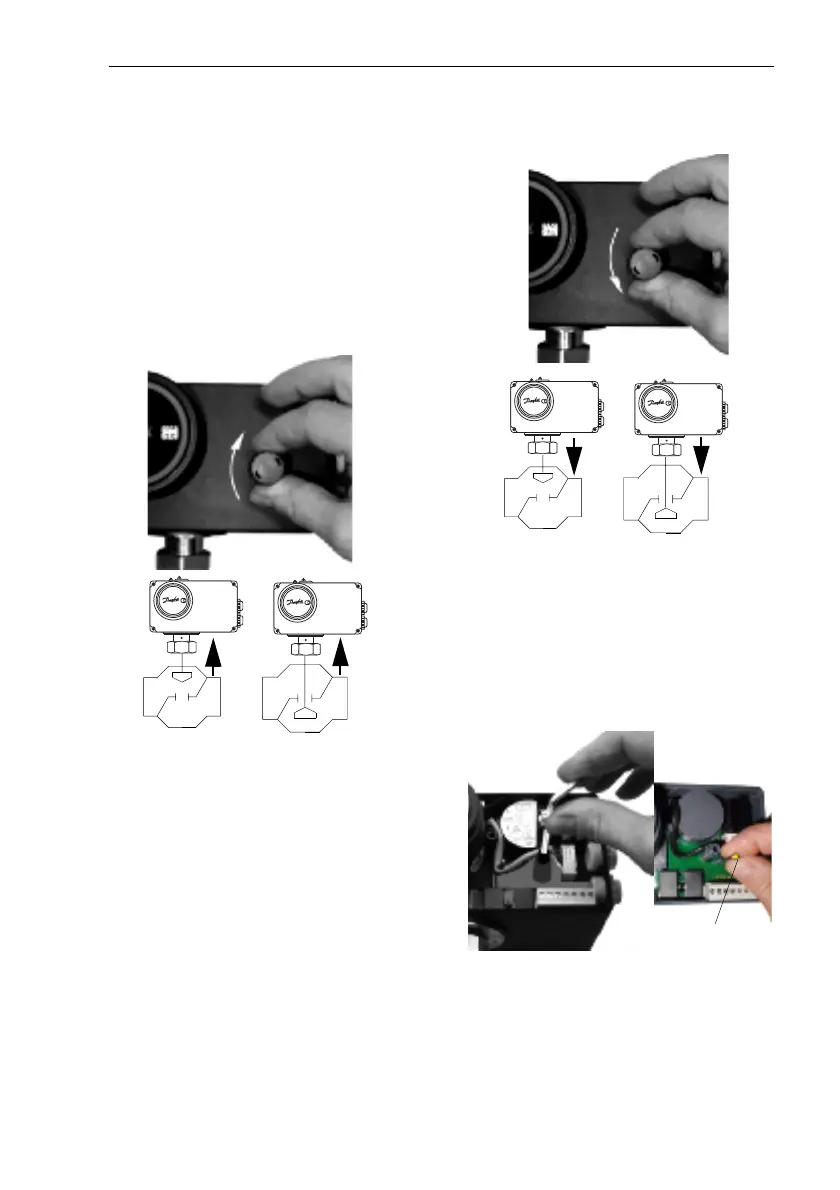

8.1 Actuator AMV210, AME210
Manual adjustment is performed
by turning the rotary switch:
l Retracting the stem of the
actuator
l Extending the stem of the
actuator
8.2 Actuator AMV213, AME213
After having dismounted the co-
ver, you can perform the manual
adjustment by means of a hexa-
gon socket screw key SW 4.
Turning direction see section 8.1.
Block position with pin
1.
VIM2
VIS2
AIQM
VIU2
VIM2, VIS2,
VIU2
AIQM
1
