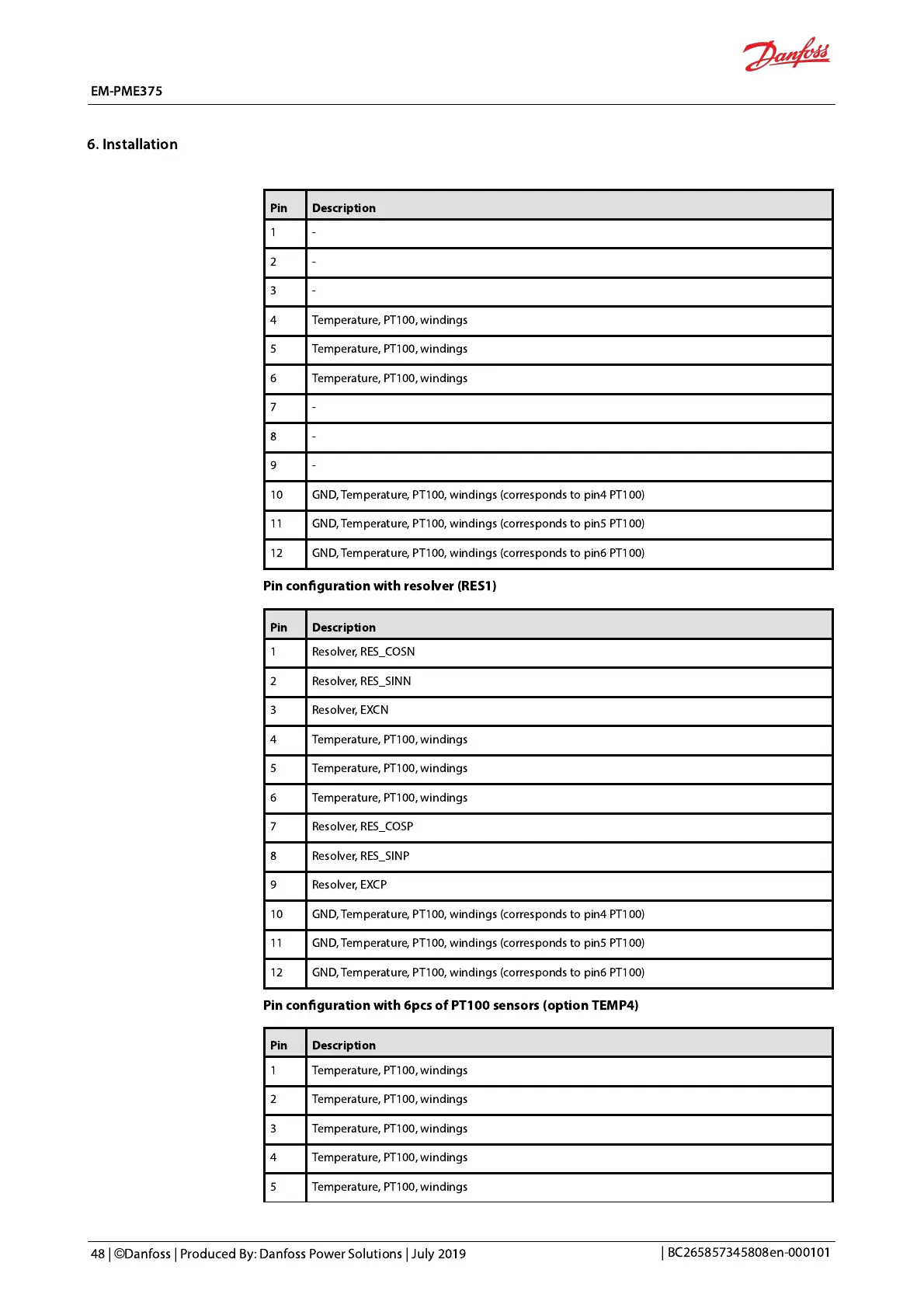

Pin Description
1 -
2 -
3 -
4 Temperature, PT100, windings
5 Temperature, PT100, windings
6 Temperature, PT100, windings
7 -
8 -
9 -
10 GND, Temperature, PT100, windings (corresponds to pin4 PT100)
11 GND, Temperature, PT100, windings (corresponds to pin5 PT100)
12 GND, Temperature, PT100, windings (corresponds to pin6 PT100)
Pin conguration with resolver (RES1)
Pin Description
1 Resolver, RES_COSN
2 Resolver, RES_SINN
3 Resolver, EXCN
4 Temperature, PT100, windings
5 Temperature, PT100, windings
6 Temperature, PT100, windings
7 Resolver, RES_COSP
8 Resolver, RES_SINP
9 Resolver, EXCP
10 GND, Temperature, PT100, windings (corresponds to pin4 PT100)
11 GND, Temperature, PT100, windings (corresponds to pin5 PT100)
12 GND, Temperature, PT100, windings (corresponds to pin6 PT100)
Pin conguration with 6pcs of PT100 sensors (option TEMP4)
Pin Description
1 Temperature, PT100, windings
2 Temperature, PT100, windings
3 Temperature, PT100, windings
4 Temperature, PT100, windings
5 Temperature, PT100, windings
