Danfoss VLT FC 102 N500 User Manual

1.
2.
a.
b.
c.
e30bu141.12
1
2
3
4
5
6
7
8
9
10

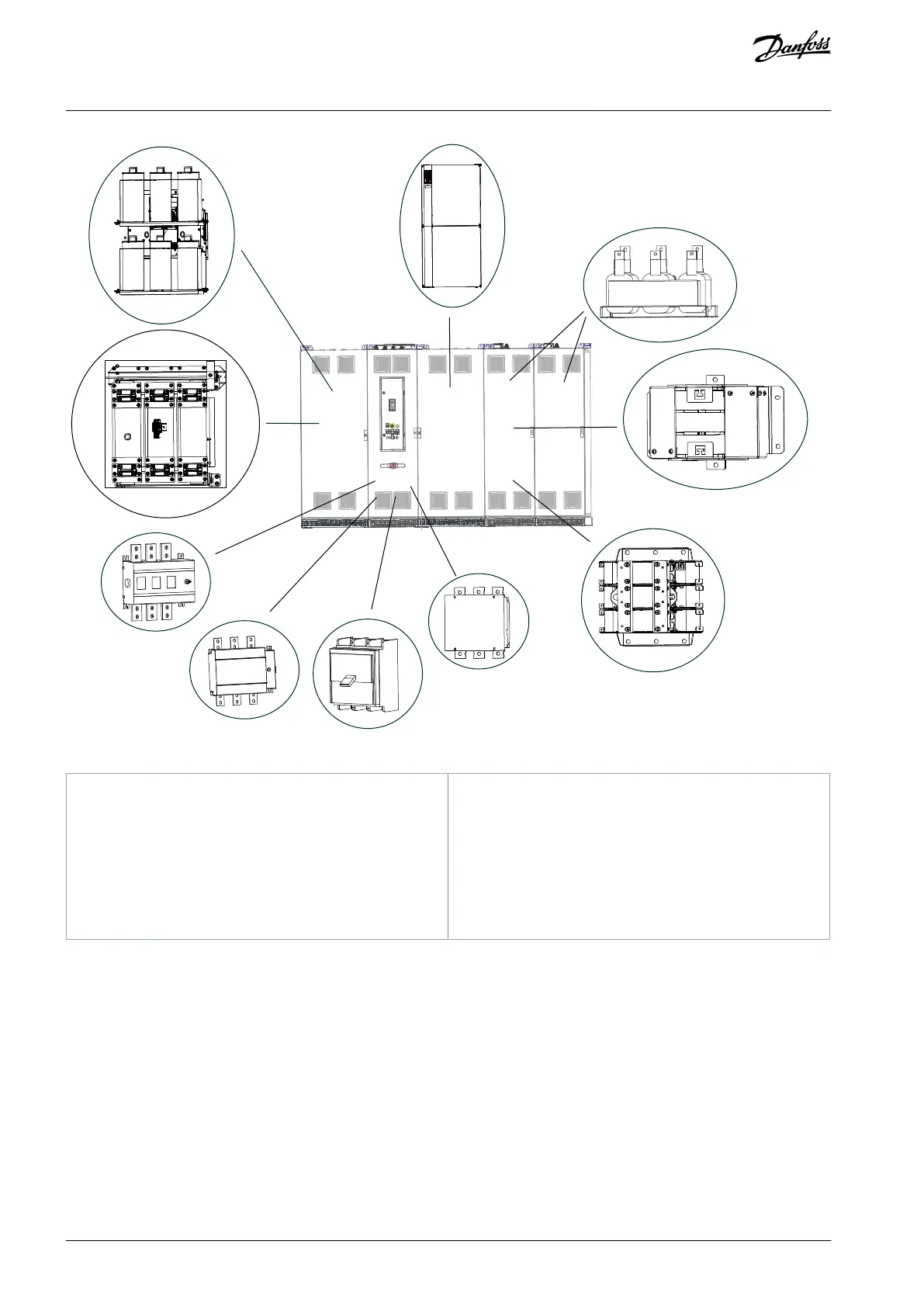

Illustration 6: Visual Representation of a E5h/E6h Enclosure and the Locations of Available Options
1
Passive harmonic lter (PHF)
2
Line reactor
3
Non-fusible disconnect
4
Fusible disconnect
5
Molded-case circuit breaker (MCCB)
6
Mains contactor
7
dU/dt lter
8
Common-mode lter
9
Sine-wave lter
10
Drive module (varies in power rating)
3.4 Drive Identication
3.4.1 Identifying the Drive and Its Options
Enclosure size and specic options are used throughout this guide whenever procedures or components dier based on the drive
and its options. Use the following steps to identify the enclosed drive:
Procedure
Locate the type code (T/C) on the nameplate. The nameplate is found on the exterior of the drive by the bottom grill and
on the control compartment door.
Determine the type of enclosure by obtaining the following information from the type code:
Product group and drive series (characters 1–6).
Voltage rating (character 8).
Model/power rating (characters 10–12).
AQ357954340588en-000201 / 130R088118 | Danfoss A/S © 2020.09
Product Overview
VLT® Refrigeration Drive FC 103
Operating Guide
