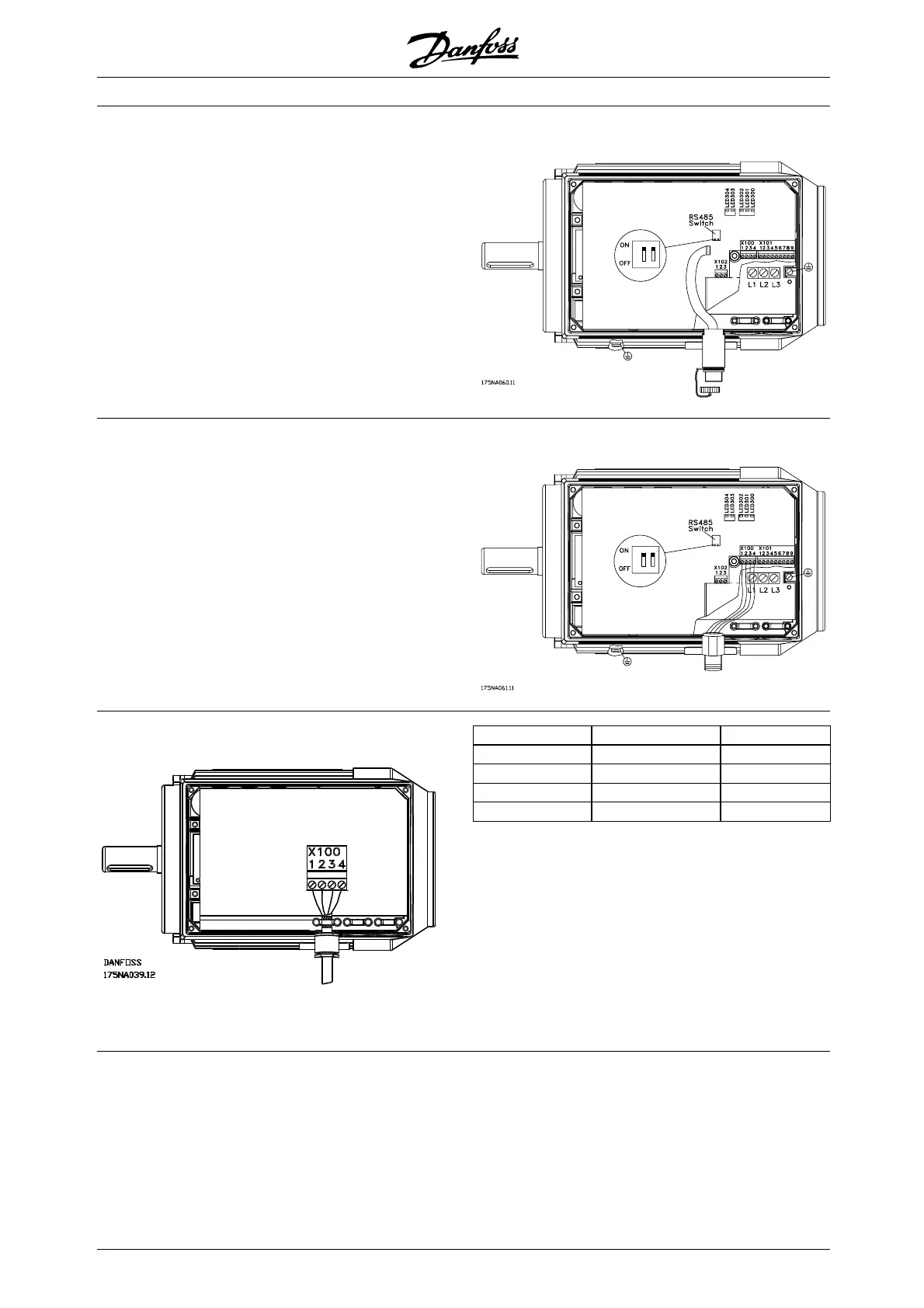

■ Service plug kit (175N2546)
Purpose:
To run LCP2 and PROFIBUS at the same time. The
service plug can be used with FCM 300 of serial
number 03Gxxx and software version as from 2.03.
Used together with cable for plug kit 175N0162.
■ Plug kit (175N2545)
Purpose
To make a plugable connection between
LCP 2 and FCM 300.
Used together with cable for plug kit 175N0162.
■ Remote mounting kit (175N0160)
Connections
Colour of wire/ Terminal X1 00/ D-sub pin
yellow 1 8
green 2 9
red 3 2
blue 4 3
