2.1.6 Function Set-ups
The Function set-up provides quick and easy access to all parameters required for the majority of VLT HVAC Drive applications including most VAV and
CAV supply and return fans, cooling tower fans, primary, secondary and condenser water pumps and other pump, fan and compressor applications.
How to access Function set-up - example
130BT110.1
0

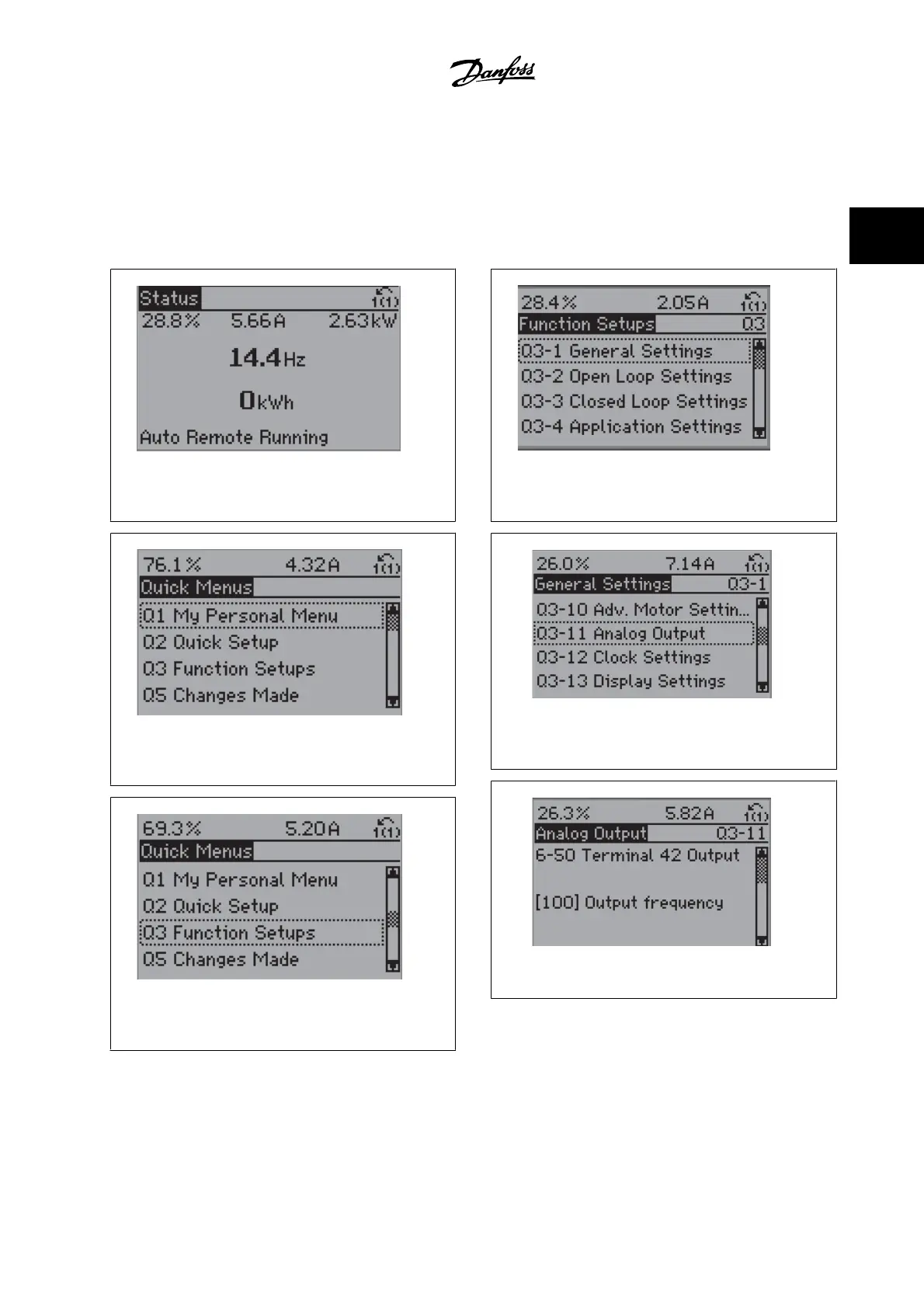

Figure 2.7: Step 1: Turn on the adjustable frequency drive
(yellow LED lights)
130BT111.1
0
Figure 2.8: Step 2: Press the [Quick Menus] button (quick
menu choices appear).
130BT112.1
0
Figure 2.9: Step 3: Use the up/down navigation keys to
scroll down to Function set-ups. Press [OK].
130BT113.1
0
Figure 2.10: Step 4: Function set-ups choices appear.
Choose 03-1
General Settings . Press [OK].
130BT114.1
0
Figure 2.11: Step 5: Use the up/down navigation keys to
scroll down to , e.g., 03-11
Analog Outputs . Press [OK].
130BT115.1
0
Figure 2.12: Step 6: Choose par. 6-50. Press [OK].
VLT
®
HVAC Drive Programming Guide 2 How to Program
MG.11.C6.22 - VLT
®
is a registered Danfoss trademark 2-13
