2.1.2 Type Code

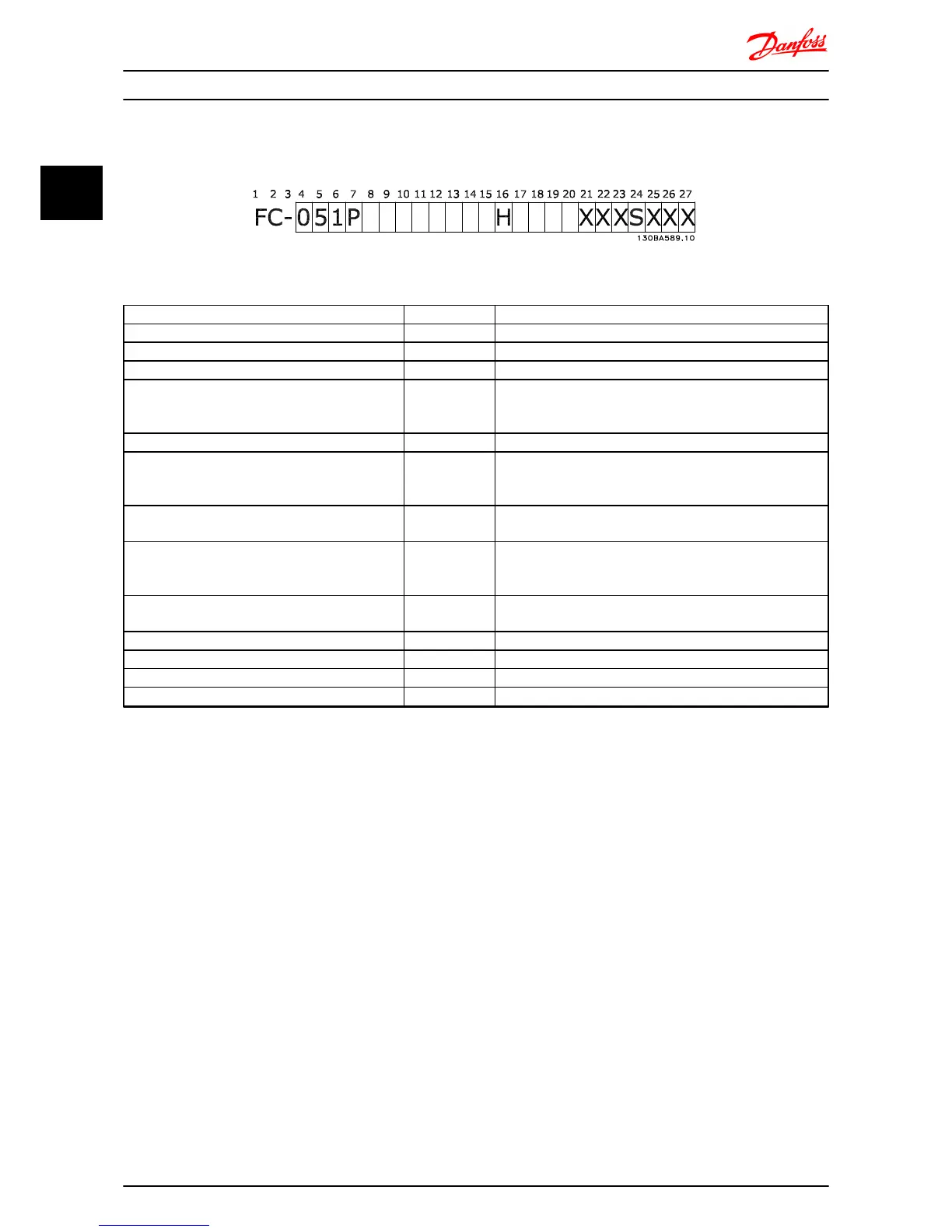

Illustration 2.2
Description Pos. Possible choice
Product group 1-3 Frequency converters
Series and product type 4-6 Micro Drive
Power size 7-10 0.18-7.5 kW
Mains voltage 11-12 S2: Single phase 200-240 V AC
T 2: Three phase 200-240 V AC
T 4: Three phase 380-480 V AC
Enclosure 13-15 IP20/Chassis
RFI filter 16-17 HX: No RFI filter
H1: RFI filter class A1/B
H3:RFI filter A1/B (reduced cable length*)
Brake 18 B: Brake chopper included (from 1.5 kW and up)
X: No brake chopper included
Display 19 X: No Local Control Panel
N: Numerical Local Control Panel (LCP)
P: Numerical Local Control Panel (LCP)) with potentiometer
Coating PCB 20 C: Coated PCB
X. No coated PCB
Mains option 21 X: No mains option
Adaptation A 22 X: No adaptation
Adaptation B 23 X: No adaptation
Software release 24-27 SXXX: Latest release - std. software
Table 2.1 Type Code Description
*See VLT
®
Micro Drive Design Guide, MG02K
Introduction
VLT
®
Micro Drive FC 51 Programming Guide
6 MG02C602 - VLT
®
is a registered Danfoss trademark
22
