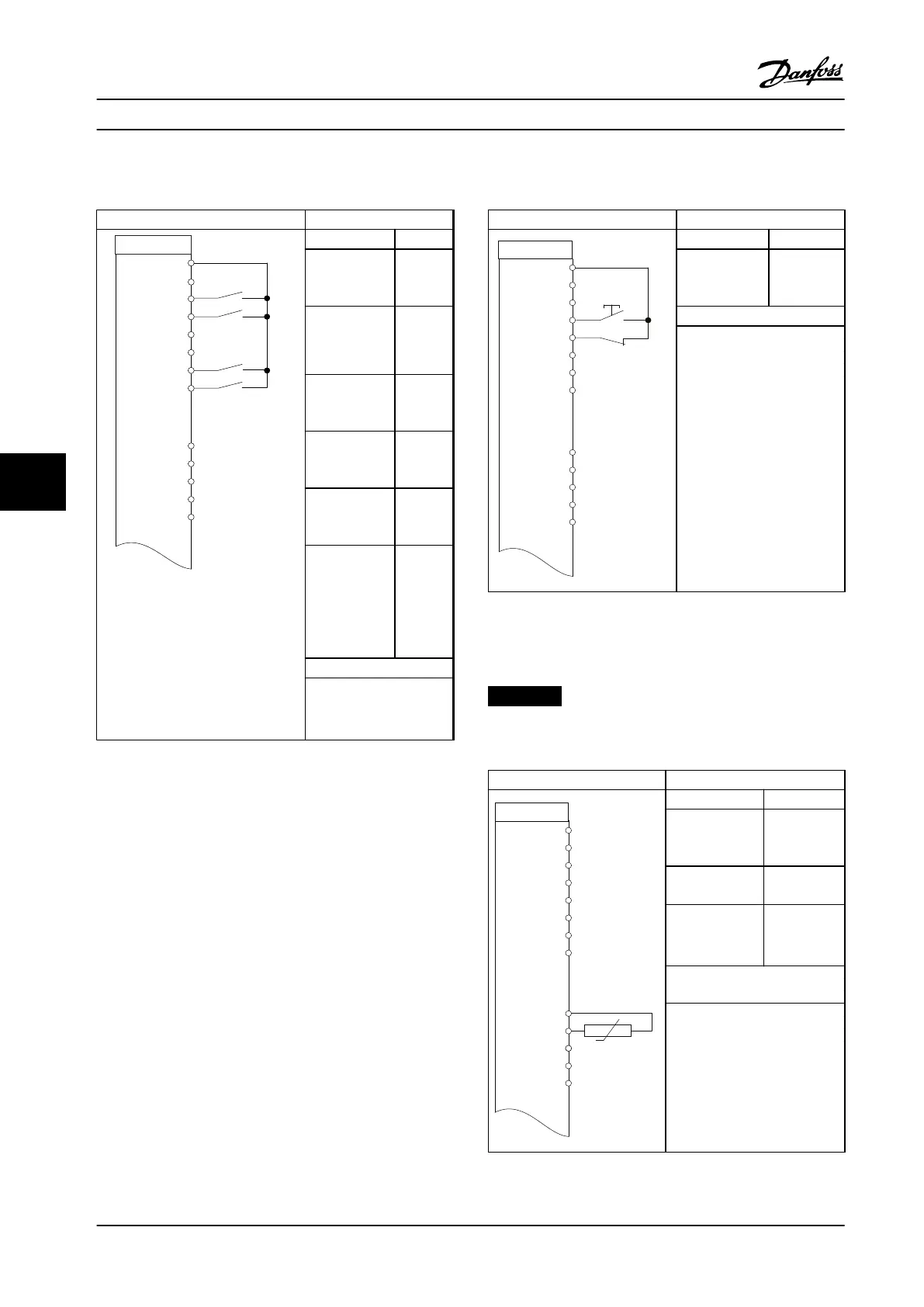

Danfoss VLT Midi Drive FC 280 Instruction Manual

7.1.3 Start/Stop
Parameters
130BE206.11
FC
+24 V
D IN
D IN
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
12
19
18
27
29
32
33
50
53
54
55
42
+24 V 13
Function Setting
Parameter 5-10
Terminal 18
Digital Input
[8] Start
Parameter 5-11
Terminal 19
Digital Input
*[10]
Reversing
Parameter 5-12
Terminal 27
Digital Input
[0] No
operation
Parameter 5-14
Terminal 32
Digital Input
[16]
Preset ref
bit 0
Parameter 5-15
Terminal 33
Digital Input
[17]
Preset ref
bit 1
Parameter 3-10
Preset Reference
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
25%
50%
75%
100%
* = Default value
Notes/comments:
Table 7.6 Start/Stop with Reversing and Four Preset Speeds
7.1.4 External Alarm Reset
Parameters
130BE207.11
FC
+24 V
D IN
D IN
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
12
13
18
19
27
29
32
33
50
53
54
55
42
+24 V
Function Setting
Parameter 5-11
Terminal 19
Digital Input
[1] Reset
*=Default value
Notes/comments:
Table 7.7 External Alarm Reset
7.1.5 Motor Thermistor
NOTICE!
To meet PELV insulation requirements, use reinforced or
double insulation on the thermistors.
Parameters
130BE210.11
+24 V
D IN
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
12
13
18
19
27
29
32
33
50
53
54
55
42
FC
D IN
+24 V
Function Setting
Parameter 1-90
Motor Thermal
Protection
[2] Thermistor
trip
Parameter 1-93 T
hermistor Source
[1] Analog
input 53
Parameter 6-19 T
erminal 53 mode
[1] Voltage
* = Default value
Notes/comments:
If only a warning is needed, set
parameter 1-90 Motor Thermal
Protection to [1] Thermistor
warning.
Table 7.8 Motor Thermistor
Application Examples
VLT
®
Midi Drive FC 280
40 Danfoss A/S © 11/2015 All rights reserved. MG07A122
