DataCard SD160 User Manual

78 Card Design Tasks
 When the split-ribbon option specifies black, printing on that side of the card is done only in
black, even if the original text and images are in color.
 Based on the split-ribbon option selected, the printer flips the card multiple times to print
and apply topcoat. This increases the time it takes to print a card, and the cards may be
stacked upside down in the output hopper.
 If you use the split-ribbon option with manual duplex printing on a simplex printer, a message
displays on the printer LCD panel each time you have to flip the card to print the other side. A
card may be flipped multiple times.

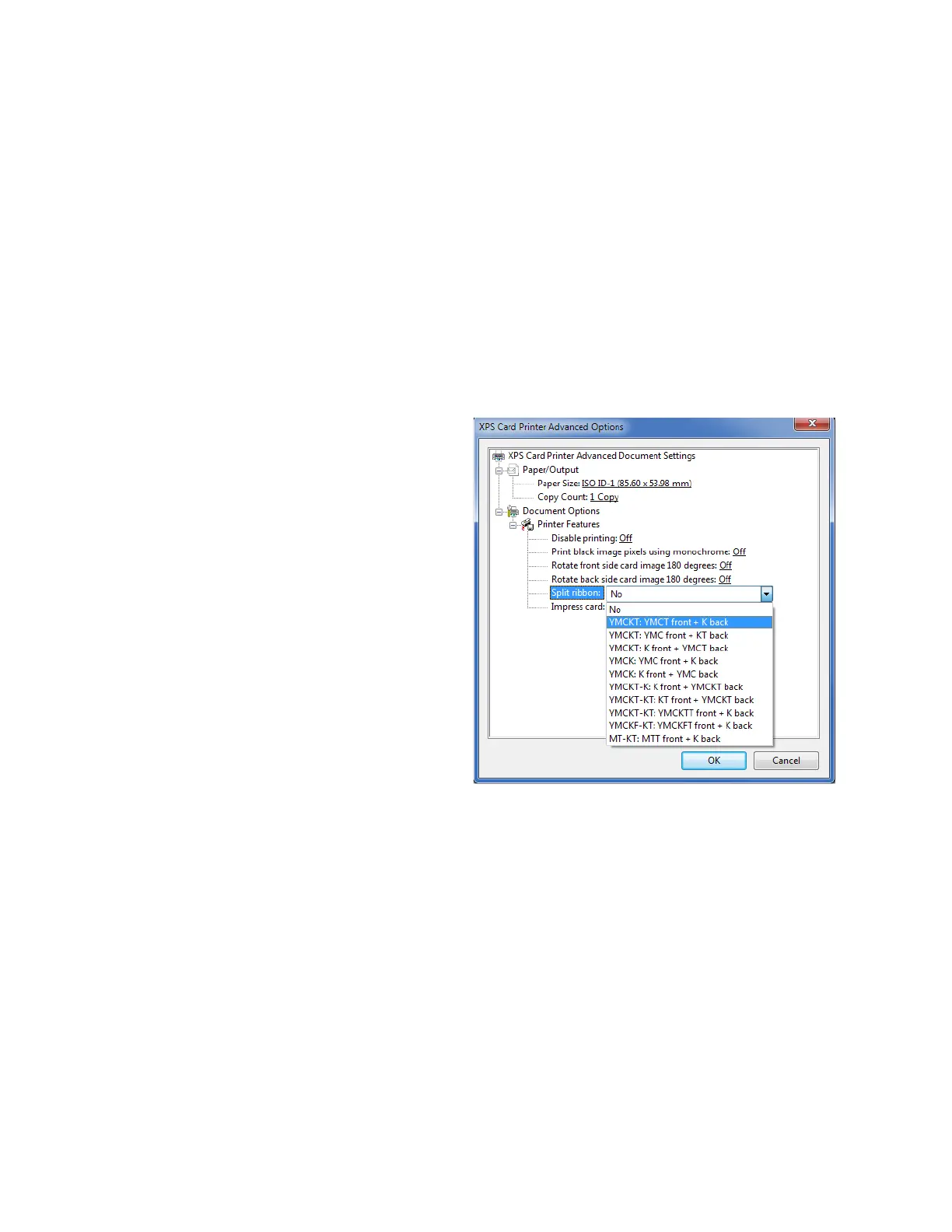

To apply split-ribbon color printing:
1. Open the Printing Preferences window.
2. On the Layout tab, click Advanced.
3. Select a Split ribbon option from the
drop-down list. The default is No,
split-ribbon printing is not used.
4. Click OK to save your selection and
then click Apply on the Layout tab.

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
