Fig. 12

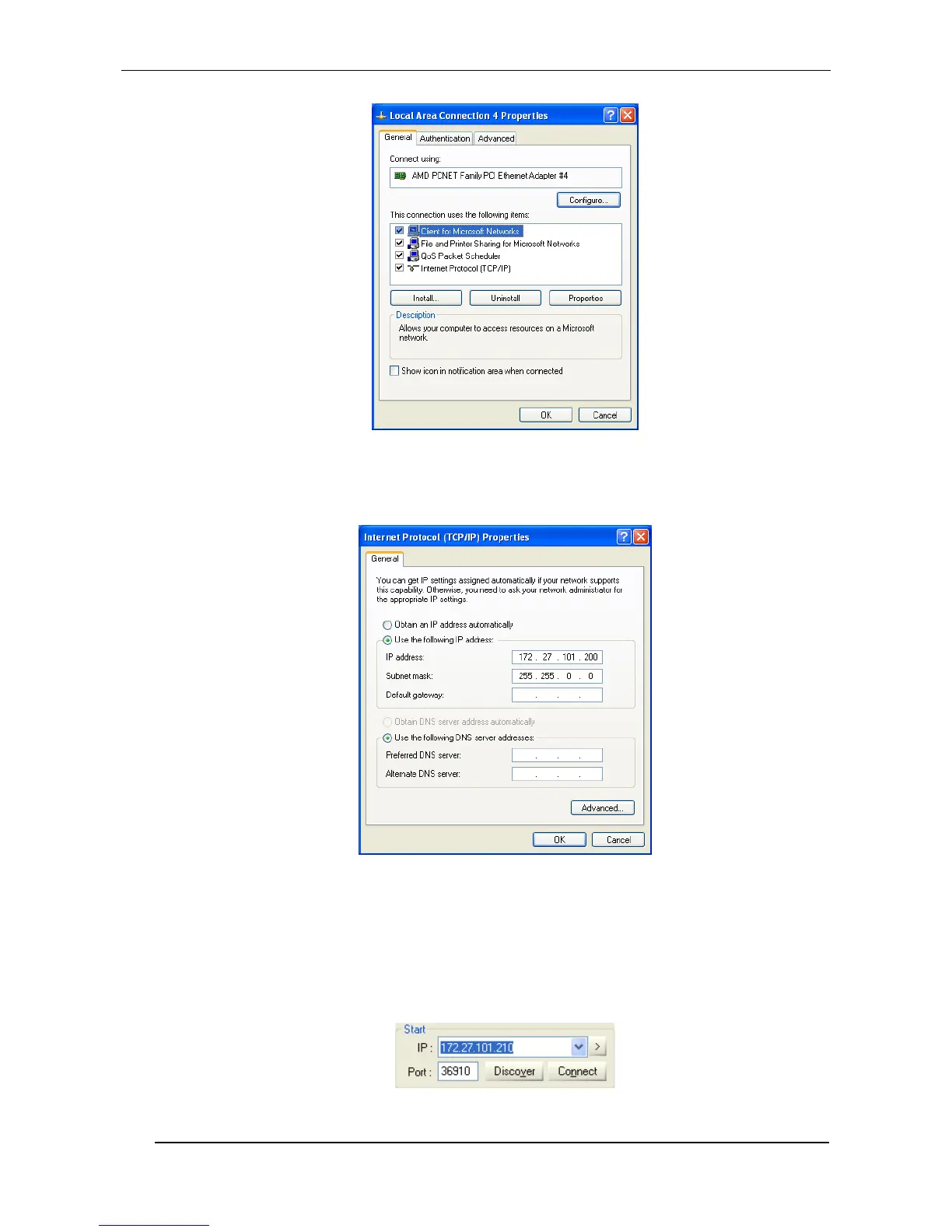

Select “Internet Protocol TCP/IP” and then push the button “Properties”.
Select the “Use the following IP address” and set, for example, the address IP 172.27.101.100 and
the subnet mask 255.255.0.0 leaving empty all the other fields. Confirm with OK.
At this point, the PC is configured with the same subnet of the light curtain. Be sure that only one
DS2ETH is powered on and connected to the network during the configuration session. Press the
button Discover or enter manually the default IP address 172.27.101.210 and then press Connect.
