DS2100
4
1
1.4 GFC-2100 ACCESSORY INSTALLATION
GFC-2100 is a 90° deflection mirror available on request for DS2100. The installation
of the 90° deflection mirror is very easy (Figure 1).
CAUTION
Avoid any contact with the deflection mirror, mirrored rotor, the
lenses or other optical components, otherwise the performance of
the reader will be reduced.
1. Turn off the device.
2. Remove the DS2100 scanning window unscrewing the two cover screws.
3. Fix the mirror to the device by means of the two fixing screws.
4. Remount the scanning window so that the opening face is now at 90° with respect
to the DS2100 body.
Fixing screws
90° deflection mirror
Cover screws
Scanning window

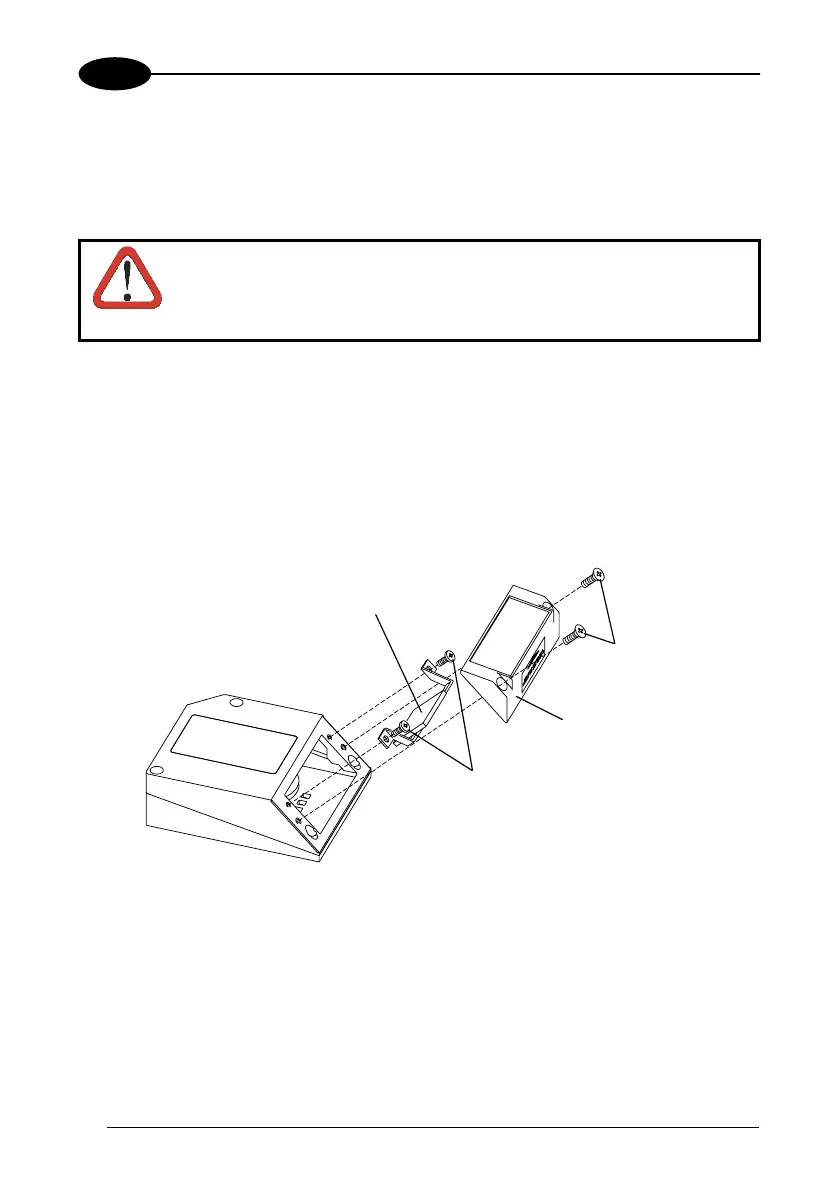

Figure 1 - Installation of the deflection mirror
