3. Connect one end of the Y cable to the keyboard cable and the
other to the keyboard port on the host/computer.
4. Scan the following bar code to program the imager for the UKBW
interface.
Configuring Parameters
Configurable options are available for each interface type, which can be
set using the Product Reference Guide (download from the website listed
on the back cover of this manual). UKBW parameters are available
exclusively in the Universal Keyboard Wedge Programming Guide, using
the programming feature set provided for “PowerScan” models. This
manual can also be downloaded from that website.
K
e
y
b
o
a
r
d

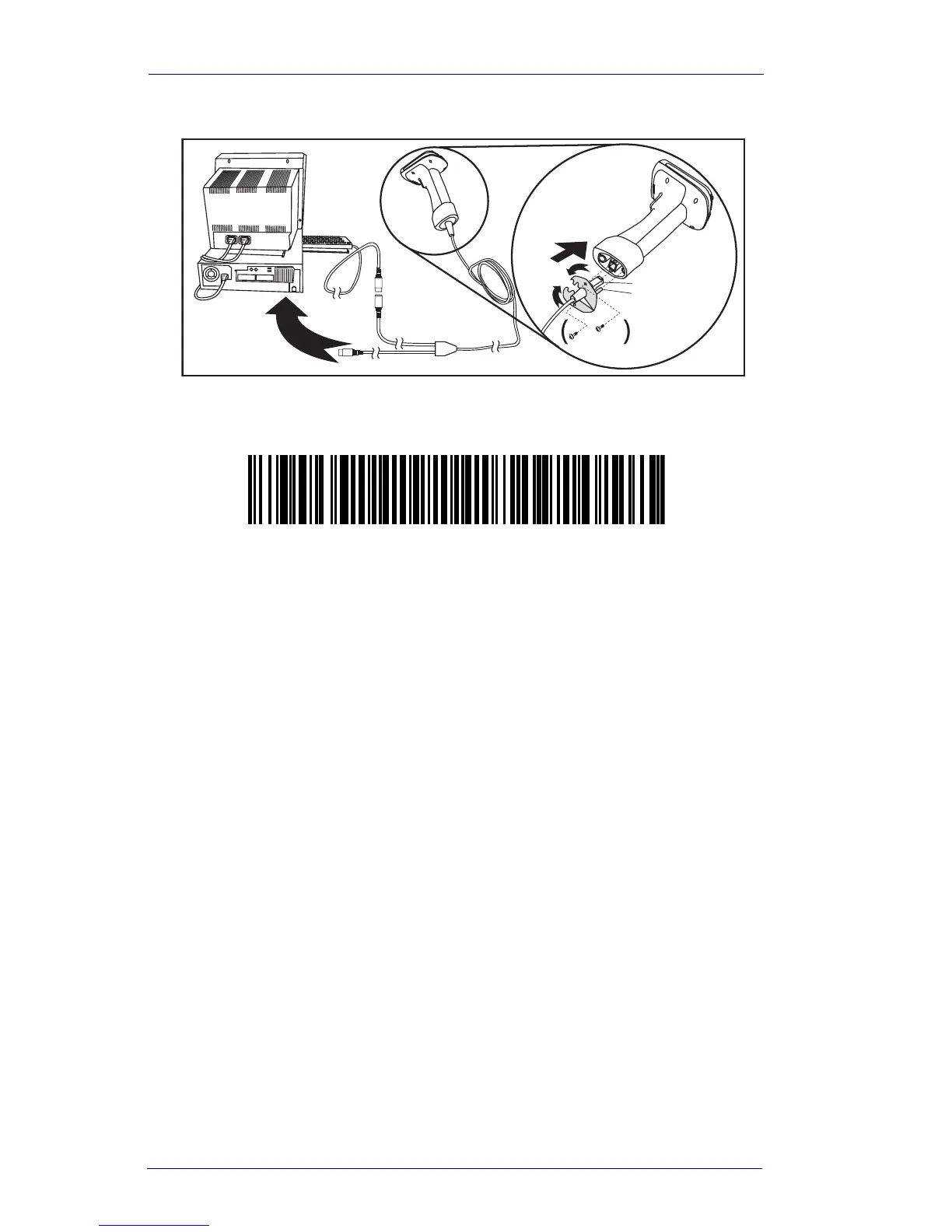

Captive
Screws
Retainer Boss
Cable Connector
~pap232 ; 232CTS1³ .
Universal Keyboard Wedge (UKBW) Interface
To Next Page
