Datalogic QuickScan QD2590 Quick Reference Guide

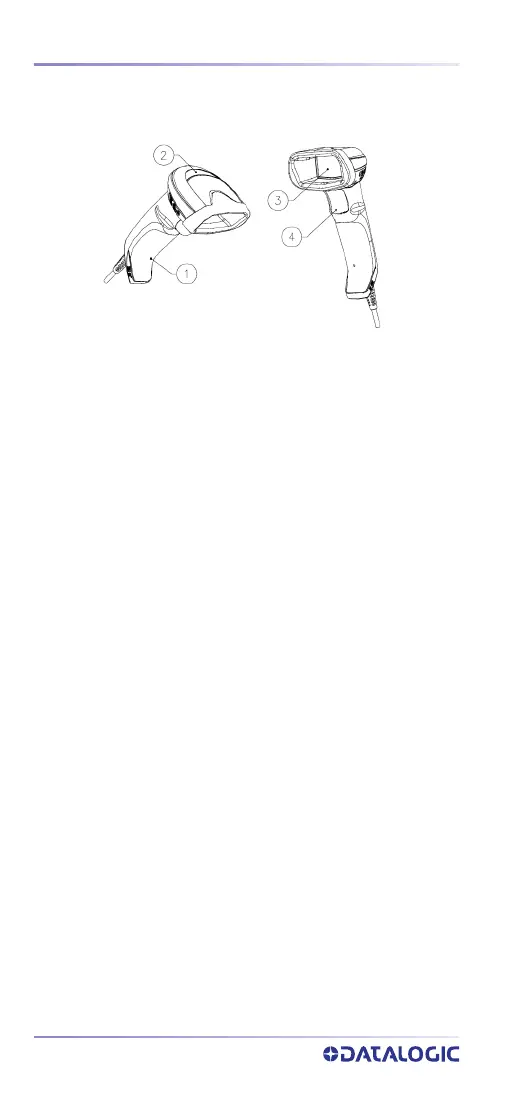

Parts of the Reader
8 QUICKSCAN™ QD2590
PARTS OF THE READER
SELECTING THE INTERFACE TYPE
Upon completing the physical connection between the
reader and its host, proceed directly to Interface Selection
below for information and programming for the interface
type supported by the reader and scan the appropriate
bar code to select your system’s correct interface type,
according to your application.
For interfaces other than those listed in this manual, see
the QuickScan™ QD2590 Product Reference Guide (PRG),
available online at www.datalogic.com.
Interface Selection
The reader will support all the following host interfaces:
• RS-232 STD
• RS-232 WN
• IBM46XX port 9b (a specific cable's required)
• USB HID POS
• USB Toshiba TEC
• USB (Keyboard, COM, OEM)
• USB Composite (Keyboard + COM)
• USB for Magellan Scanners
• Keyboard Wedge
Information and programming options for each interface
type are provided in this section. For defaults and addi-
1. Cable Release Hole 3. Scan Window
2. LED 4. Trigger

Datalogic QuickScan QD2590 Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Scanner resolution	0.17 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Codabar 125, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 3 of 9, Code 32, Code 39, Code 93, DUN 14, DataBar14, Discrete 2 of 5, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, Facing Identification Mark, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), HIBC, IATA, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Intelligent Mail, Interleaved 2 of 5, JAN, Latent image, MSI, Matrix 2 of 5, PDF417, PLANET, POSTNET, Pharmacode, Plessey, PostBar, RM4SCC / KIX, S-Code, Telepen, Trioptic, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 800 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, QR Code
Cable length	2 m
Standard interfaces	USB
Connectivity technology	Wired
Product color	Black
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Input voltage	5 V
Power consumption	450 mA
Cables included	USB Type-C
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS
Material	Polyvinyl chloride (PVC)
Connector 1	USB C
Product type	USB cable
Connector gender	Male/Male
Brand compatibility	Datalogic
Connector 1 form factor	Straight
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	126 mm
Width	148 mm
Height	68 mm
Weight	145 g
