Datalogic QuickScan QS2500 Quick Reference Guide

2QS2500
How to Scan

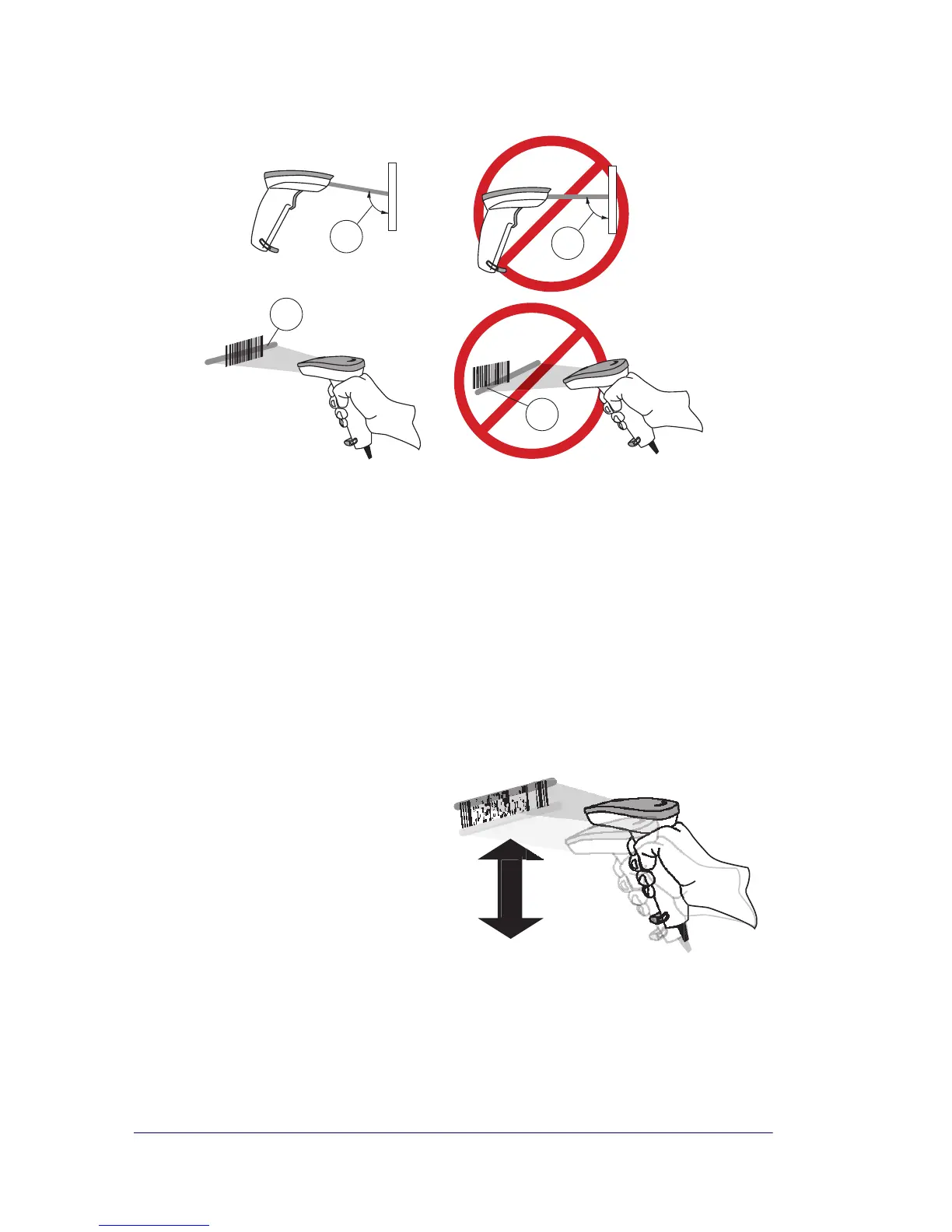

The figure below shows the right and wrong ways to scan.
1. The scanner must be pointed at a slight angle to the bar code
so that the light reflect off the bar code can be “seen” by the
scanner. Do not hold the scanner perpendicular to the bar
code.
2. The scan beam must cross the entire label. The scanner can-
not read the bar code data without seeing the entire label.
Scanning PDF417 Bar Codes
To read a PDF417 bar code,
aim the scan line at the top of
the bar code, and in a smooth
motion, pull the scan line
through the bar code. You
will hear a series of ticks, fol-
lowed by a final beep when
the bar code’s content has
been completely decoded. You may need to sweep the bar code
several times in order to complete the read.
1
1
2
2

Datalogic QuickScan QS2500 Specifications

General

Wavelength	660 nm
Maximum scan area	102/127 mm
Yaw reading angle	-75 - 75 °
Decoding standards	UPC A, E / EAN 8, 13 / JAN 8, 13, Code 128, Code 93, Pharmacode 39, Code 39, Codabar, Interleaved 2 - 5, Industrial 2 - 5, Matrix 2 - 5, GS1 DataBar, UK/Plessey, MSI/Plessey, Code 16K, Telepen, PDF-417, Code 11
Pitch reading angle	-60 - 60 °
Input voltage	5 V
Power consumption	250 mA
Dimensions (WxDxH)	74 x 114 x 185 mm
Certification	UL, cUL, FCC-A, EN 55022-B, VCCI-A, IEC 60825 Class 1 LED, EU RoHS
Product color	Gray
Storage temperature (T-T)	-30 - 65 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	179 g
