Datamax E-Class Mark II Maintenance Manual

Removal and Replacement
4-6
Replacement:
1. Route the Cables through the Cutout.
2. Position the Print Mechanism in the Bottom Enclosure and then open and it secure with the four
Screws.
3. Reinstall the Electronics Tray; see Section 4.3.
4. Adjust the Printhead; see Section 2.4.
4.5 Drive Motor
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Print Mechanism; see Section 4.4.
3. Remove the two Motor Mounting Screws that secure the Drive Motor to the Print Mechanism.

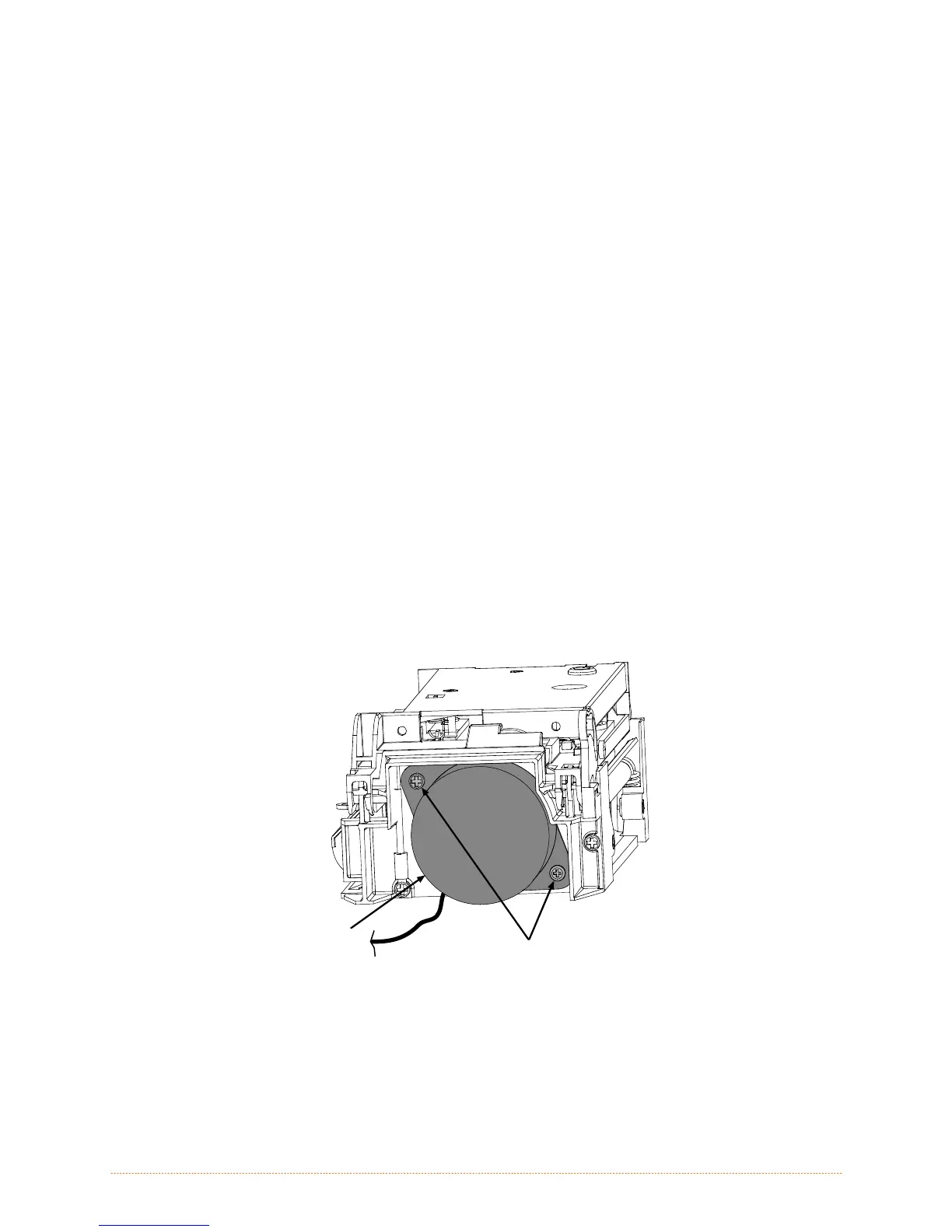

Drive
Motor
Motor
Mounting
Screws
4. Slightly pull the Drive Motor outward to disengage the gear, and then slide the motor down and
out the Lower Hole in the Print Mechanism.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
