Dell Chromebook 3100 User Manual

Steps

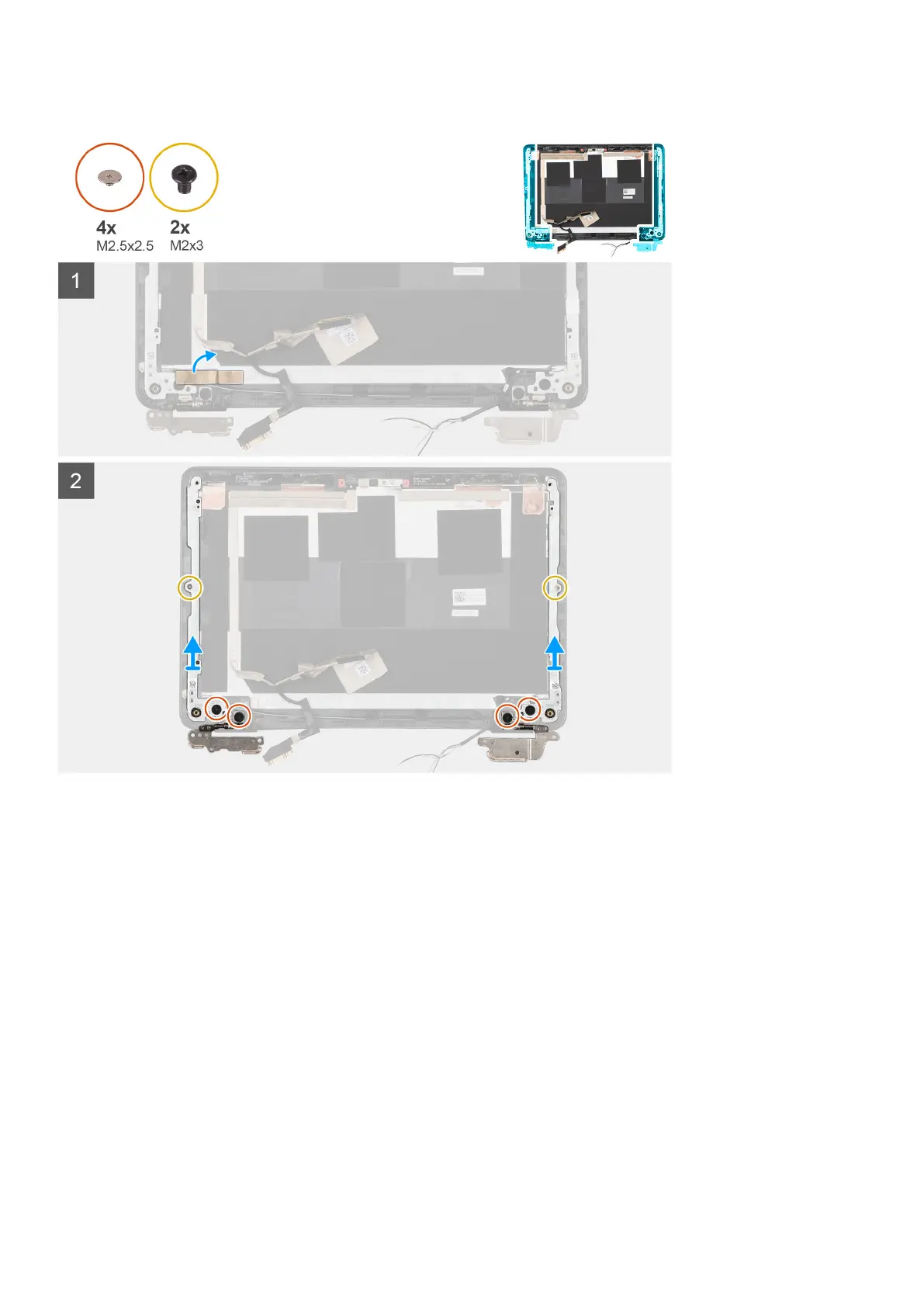

1. Peel the conductive tape that secures the display cable in place from the left display hinge.
2. Remove the four (M2.5x2.5) and two (M2x3) screws that secure the left and right display hinges.
3. Remove the display hinges from the display back cover.
Installing the display hinges
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the display hinges and provides a visual representation of the installation
procedure.
Removing and installing components
53

Dell Chromebook 3100 Specifications

General

RAM	4GB LPDDR4
Storage	16GB/32GB eMMC
Display	11.6-inch HD (1366 x 768) Anti-Glare
Operating System	Chrome OS
Battery Life	Up to 14 hours
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Graphics	Intel UHD Graphics 600
Processor	Intel Celeron N4000
Ports	2 x USB 3.1, 1 x MicroSD card reader, 1 x headphone/microphone combo jack
Battery	42 Whr, 3-cell Li-ion
