Dell Chromebook 3100 User Manual

About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
Steps

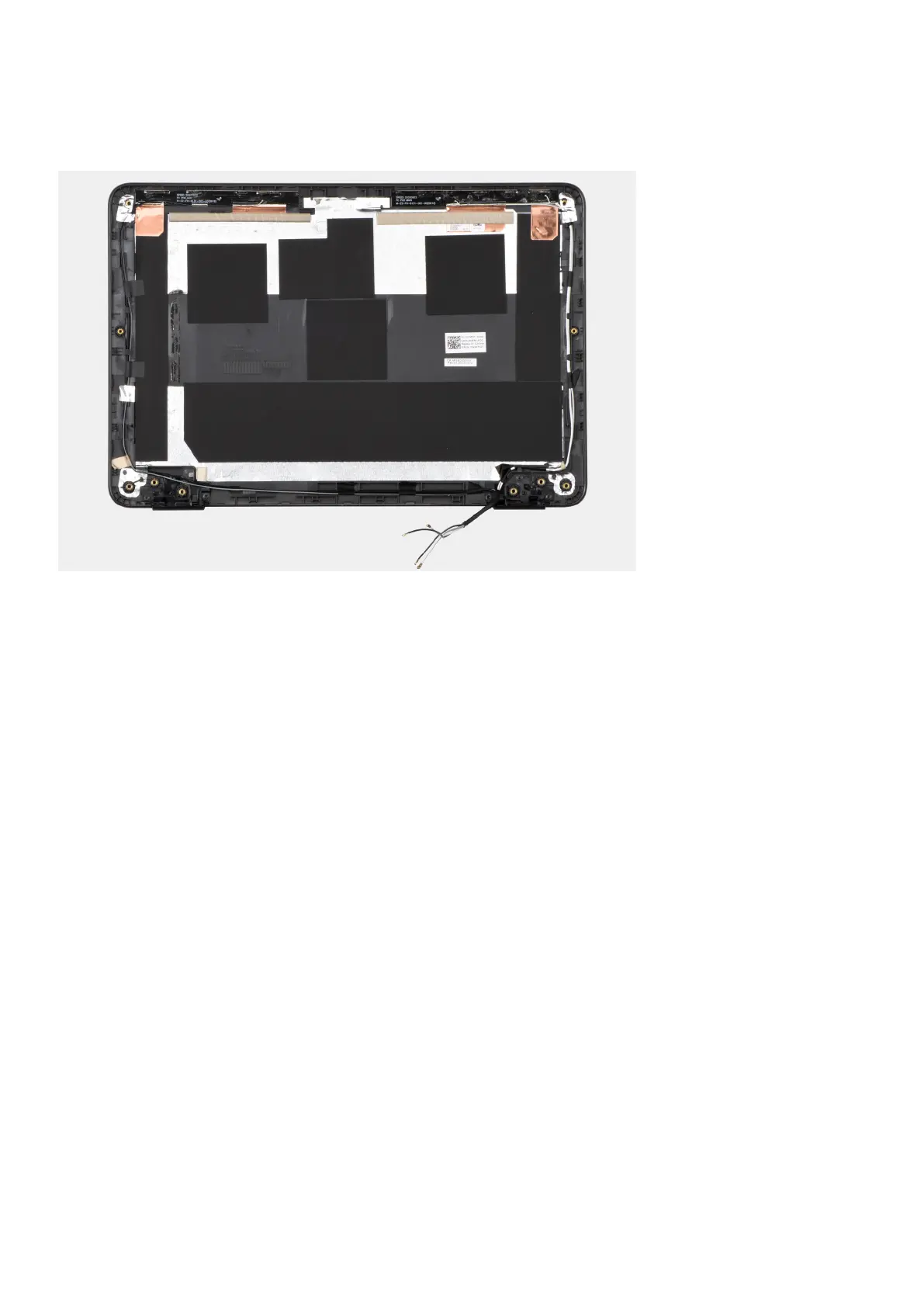

Place the display back-cover on a flat surface and perform the following steps to install the display back cover.
Next steps
1. Install the display cable.
2. Install the camera.
3. Install the display hinges.
4. Install the display panel.
5. Install the display bezel.
6. Install the display assembly.
7. Install the WWAN card for 4G LTE enabled systems.
8. Install the base cover.
9. Follow the procedure in after working inside your computer.
Palmrest assembly
Installing the palmrest assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the palmrest assembly and provides a visual representation of the installation
procedure.
58
Removing and installing components

Dell Chromebook 3100 Specifications

General

RAM	4GB LPDDR4
Storage	16GB/32GB eMMC
Display	11.6-inch HD (1366 x 768) Anti-Glare
Operating System	Chrome OS
Battery Life	Up to 14 hours
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Graphics	Intel UHD Graphics 600
Processor	Intel Celeron N4000
Ports	2 x USB 3.1, 1 x MicroSD card reader, 1 x headphone/microphone combo jack
Battery	42 Whr, 3-cell Li-ion
