Dell Chromebook 3100 User Manual

Installing the display cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

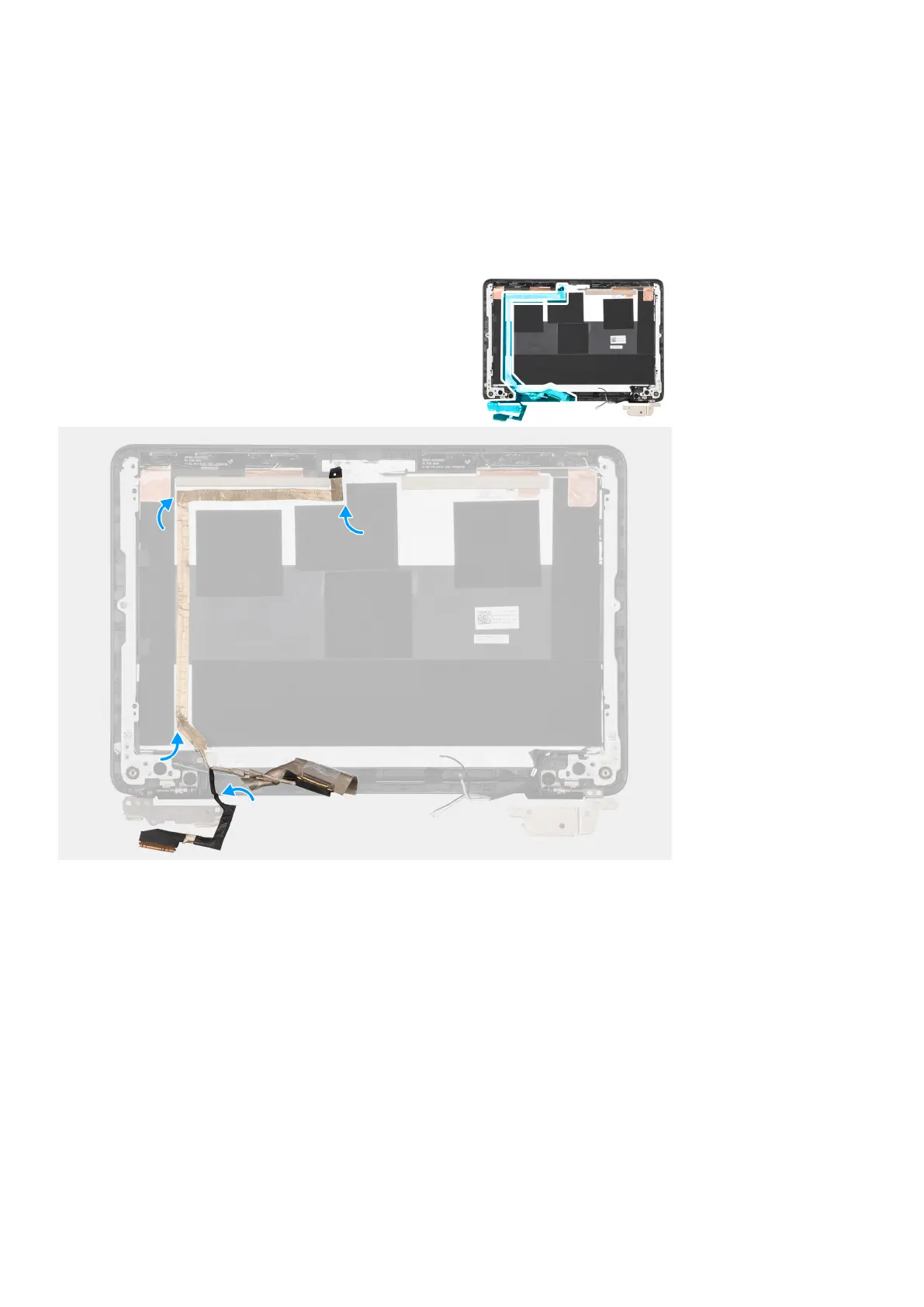

The following image indicates the location of the display cable and provides a visual representation of the installation procedure.
Steps
1. Adhere the tape to securing the display cable to the display back cover.
2. Route the display cable through its routing channel.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the WWAN card for 4G LTE enabled systems.
5. Install the base cover.
6. Follow the procedure in after working inside your computer.
56
Removing and installing components

Dell Chromebook 3100 Specifications

General

RAM	4GB LPDDR4
Storage	16GB/32GB eMMC
Display	11.6-inch HD (1366 x 768) Anti-Glare
Operating System	Chrome OS
Battery Life	Up to 14 hours
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Graphics	Intel UHD Graphics 600
Processor	Intel Celeron N4000
Ports	2 x USB 3.1, 1 x MicroSD card reader, 1 x headphone/microphone combo jack
Battery	42 Whr, 3-cell Li-ion
