Dell E178FPC Service Manual

17" LCD Color Monitor Dell E178FPC
16
4. Input/Output Specification
4.1 Input Signal Connector
VGA Connector:
Pin No. Description Pin No. Description
1 Video-Red 9 Computer 5V/3.3V
2 Video-Green 10 GND-sync
3 Video-Blue 11 GND
4 GND 12 DDC data
5 Self-test 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC clock
8 GND-B

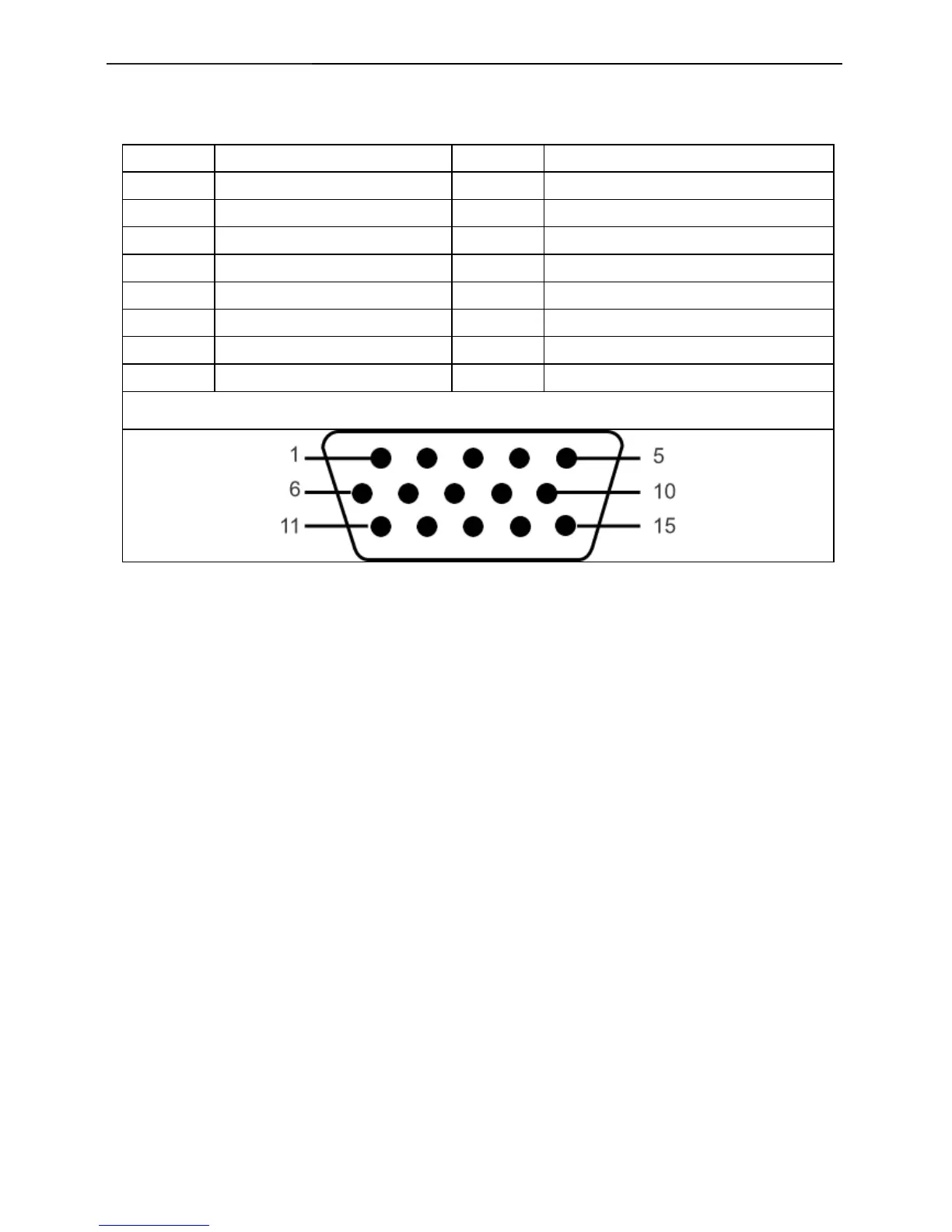

VGA Connector layout
