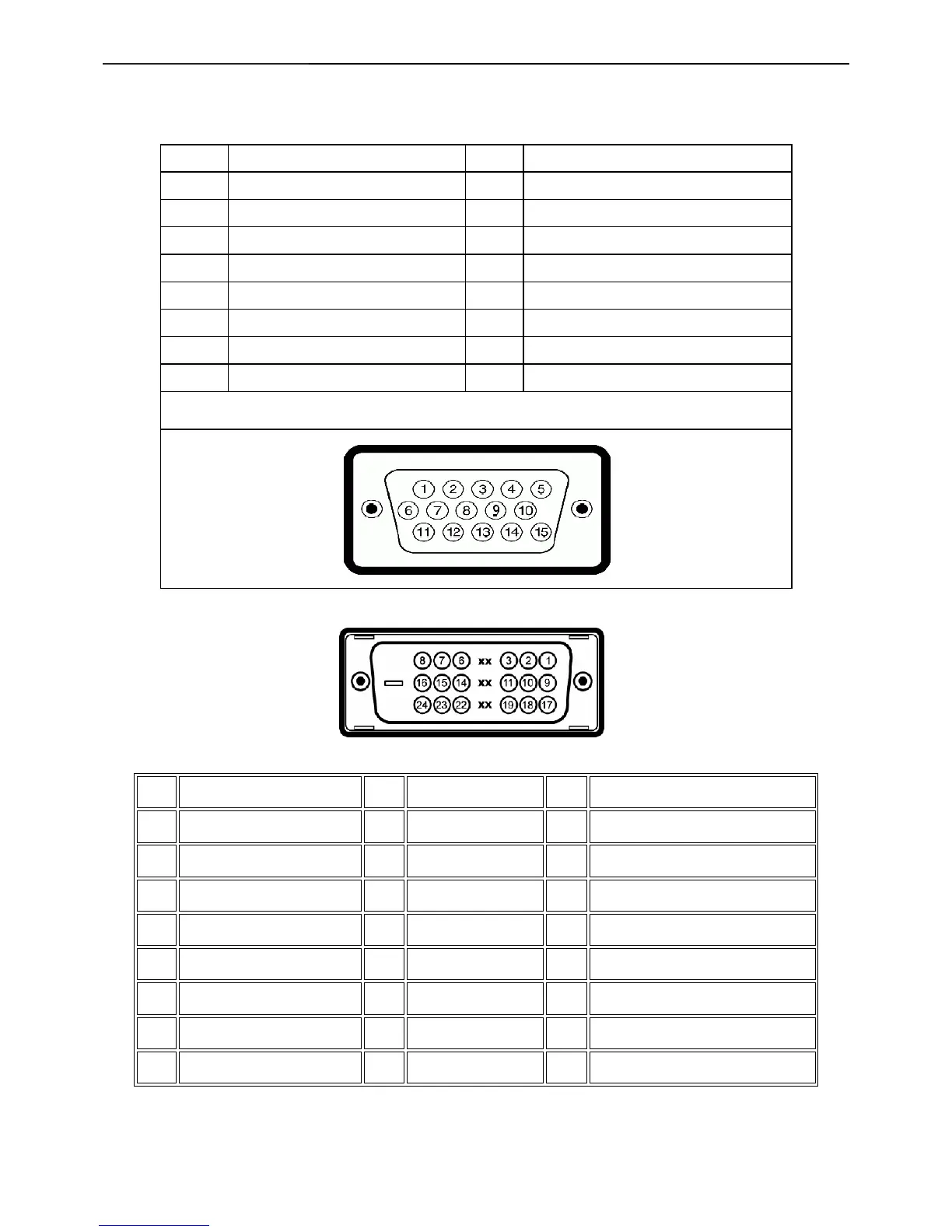

4. Input/Output Specification
4.1 Input Signal Connector
VGA Connector:
Pin No. Description Pin No. Description
1. Red Video 9.
Computer 5V/3.3V
2. Green Video 10. GND-sync
3. Blue Video 11. GND
4. GND 12. DDC data
5. Self-test 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC clock
8. B-Ground
VGA Connector layout
DVI Connector:
Note: Pin 1 is at the top right.
Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment
1 T.M.D.S. Data 2- 9
TMDS RX1- 17 TMDS RX0-
2 T.M.D.S. Data 2+ 10
TMDS RX1+ 18 TMDS RX0+
3
TMDS Ground
11
TMDS Ground 19 TMDS Ground
4 Floating
12
Floating 20 Floating
5 Floating
13
Floating 21 Floating
6 DDC Clock
14
+5V/+3.3V power 22 TMDS Ground
7 DDC Data
15
Self test 23 TMDS Clock+
8
Floating
16
Hot Plug Detect
24 TMDS Clock-
