Dell E1909Wc User Manual

19" LCD Color Monitor Dell E1909Wc
40

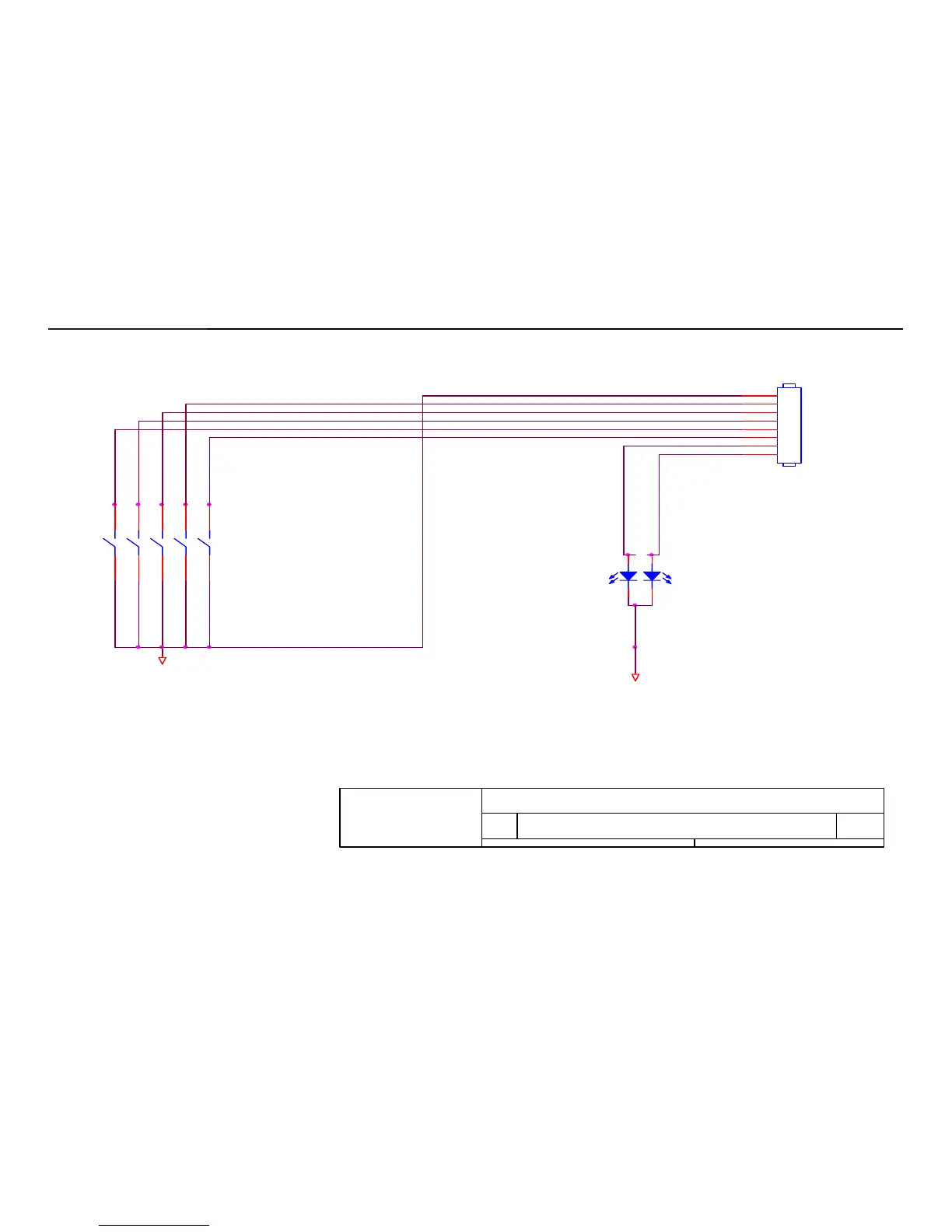

7.3 Key Board
SOURCE
A
Key Board
A
11Friday , April 25, 2008
Title
Size Document Number Rev
Date: Sheet
of
DOWN
GND
GND
ON/OFF
CN1
CONN
1
2
3
4
5
6
7
8
MENU
LED1
LED
3 4
1 2
715G2801-B-2
UP
SW1
SW
1 3 5
2 4 6 8
7 9
10

Dell E1909Wc Specifications

General

Brand	Dell
Model	E1909Wc
Category	Monitor
Language	English
