Dell E198FP User Manual

Automatic Save
With the OSD open, if you make an adjustment and then either proceed to another menu, or exit the OSD, the monitor automatically saves any adjustments
youhavemade.IfyoumakeanadjustmentandthenwaitfortheOSDtodisappeartheadjustmentwillalsobesaved.
OSD Warning Messages
A warning message appears on the screen indicating that the monitor is out of sync.
This means that the monitor cannot synchronize with the signal that it is receiving from the computer. Either the signal is too high or too low for the monitor to
use.SeeSpecificationsfortheHorizontalandVerticalfrequencyrangesaddressablebythismonitor.Recommendedmodeis1280X1024@60Hz.
retention. Using the LCD Conditioning feature may take several hours. Severe cases of image retention are known as burn-in, the
LCD Conditioning feature does not remove burn-in.


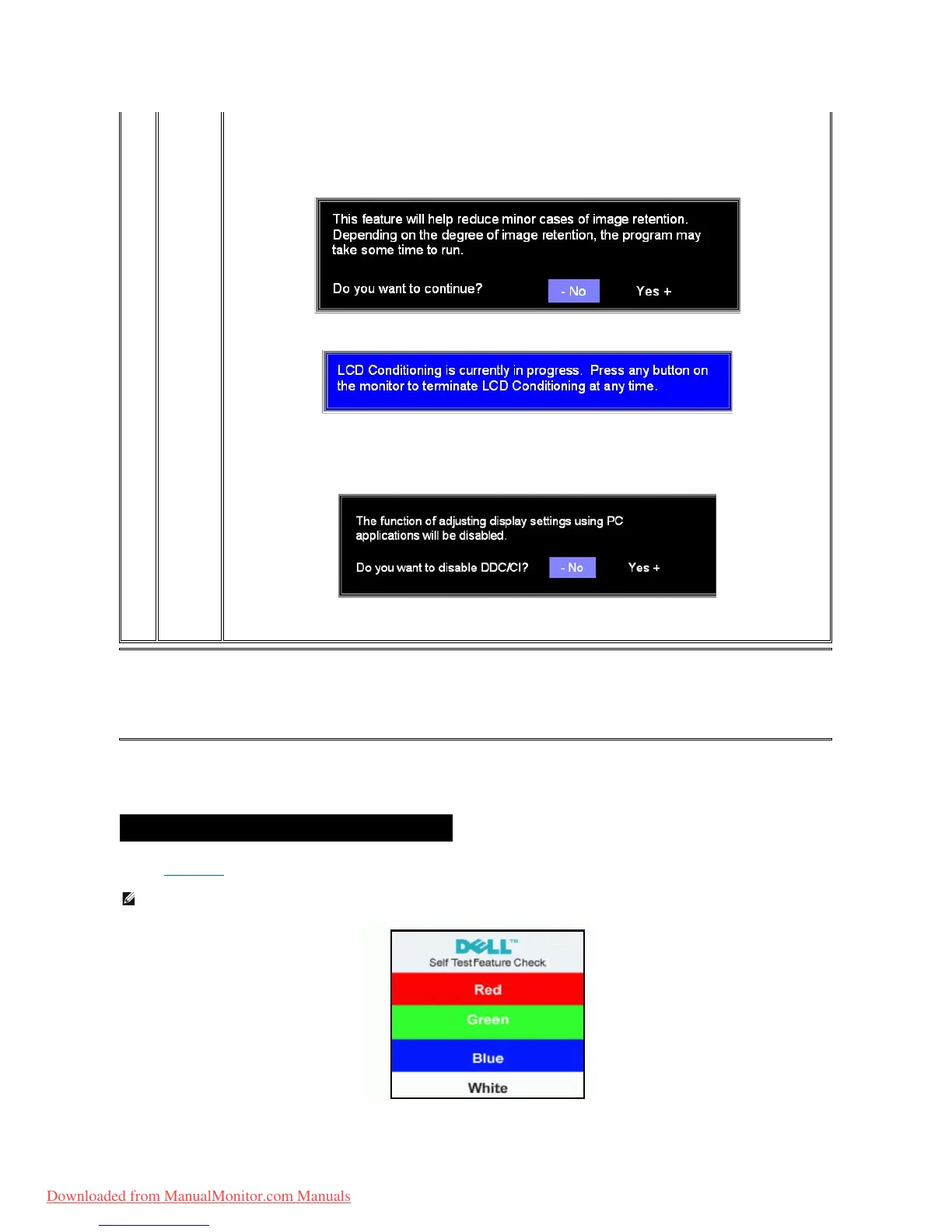

Below warning message appears once user select "Enable LCD Conditioning":
NOTE: Press any button on the monitor to terminate LCD Conditioning at any time.
DDC/CI(DisplayDataChannel/CommandInterface)allowsyoutoadjustthemonitorparameters(brightness,color,balance,
etc.)viasoftwareapplicationsonyourPC.
Select Disable to disable this feature.
Forbestuserexperienceandoptimumperformanceofyourmonitor,keepthisfeatureenabled.
NOTE: Use LCD Conditioning only when you experience a problem with image retention.
NOTE:If user select 'disable' for DDC/CI,the warning message will appear on screen.Then user can select Yes or No according to
need.
Cannot Display This Video Mode
Optimumresolution1280X102460Hz
NOTE: The floating 'Dell - self-test Feature Check' dialog will appear on-screen if the monitor cannot sense a video signal.
Downloaded from ManualMonitor.com Manuals

Dell E198FP Specifications

General

Brand	Dell
Model	E198FP
Category	Monitor
Language	English
