Dell E198FP User Manual

Power Management Modes
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use.
This is referred to as Power Save Mode*. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically
"wake up". The following table shows the power consumption and signaling of this automatic power-saving feature:
Activate the computer and wake up the monitor to gain access to the OSD.

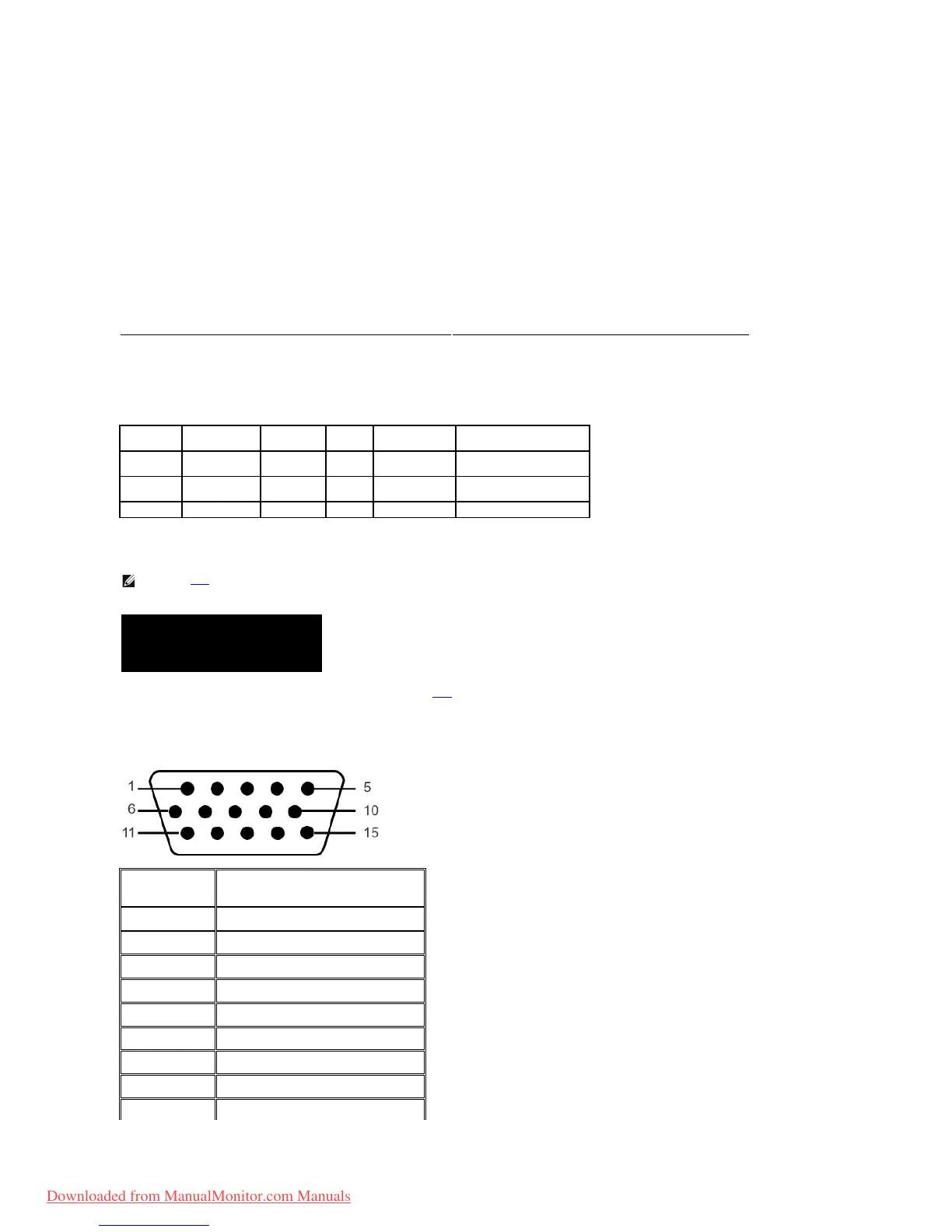

Pin Assignments
VGA Connector
Temperature:

Operating
5¢X to 35¢XC (41¢X to 95¢XF)
Nonoperating
Storage: 0¢X to 60¢XC (32¢X to 140¢XF)
Shipping: -20¢X to 60¢XC(-4¢X to 140¢XF)
Humidity:

Operating
10% to 80% (noncondensing)
Nonoperating
Storage: 5% to 90% (noncondensing)
Shipping: 5% to 90%(noncondensing)
Altitude:

Operating
3,657.6 m (12,000 ft) max
Nonoperating
12,192 m (40,000 ft) max
Thermal dissipation
138.44 BTU/hour (maximum)
129.92 BTU/hour (typical)
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video
Power
Indicator
Power Consumption
Normal
operation
Active
Active
Active
Green
40.6 W (maximum)*
38.1W (normal)**
Active-off
mode
Inactive
Inactive
Blanked
Amber
Less than 2 W
Switch off
-
-
-
Off
Less than 1 W
*WithAudio
**WithoutAudio
NOTE: The OSD functions only in the 'normal operation' mode. Otherwise one of the following
messages appears depending upon the selected input.
In Power Save Mode
Press computer power button
or any key on keyboard or move mouse
Pin
Number
15-pin Side of the
Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
Computer 5V/3.3V
