OSD Warning Messages


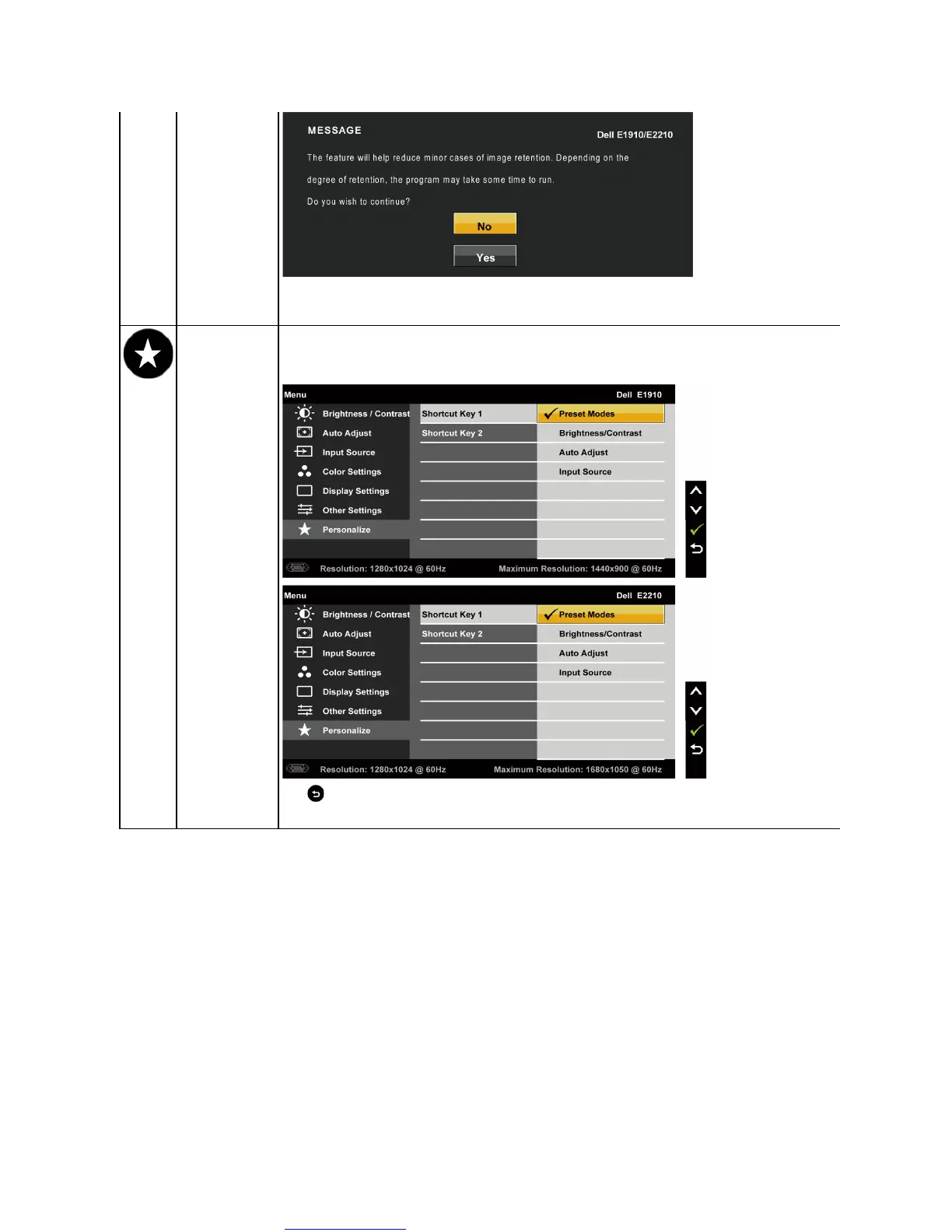

Factory Reset
ResetsallOSDsettingstothefactorypresetvalues.
Personalize
User can select from "Preset Modes", "Brightness/Contrast", "Auto Adjust", "Input Source" and set as shortcut key 1 and 2.



Back
Press to go back to the main menu.



When the monitor does not support a particular resolution mode you will see the following message:

Dell E2210 Specifications

General

3D	-
Panel type	TN
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Display technology	LED
Viewing angle, vertical	160 °
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1680 x 1050 (WSXGA+)
DVI-I ports quantity	0
Input current	1.6 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	31 W
Power consumption (standby)	1 W
Power consumption (typical)	28 W
Product color	Black
Market positioning	Business
Weight (imperial)	9.7 lbs
Package weight (imperial)	15.5 lbs
LED indicators	Stand-by
Package weight	7030 g
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Non-operating relative humidity (non-condensing)	5 - 90 %
Cables included	AC, DVI, VGA
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	163.9 mm
Width (with stand)	511.2 mm
Height (with stand)	406.7 mm
Depth (without stand)	- mm
Weight (without stand)	4400 g
