20 Setting Up the Monitor

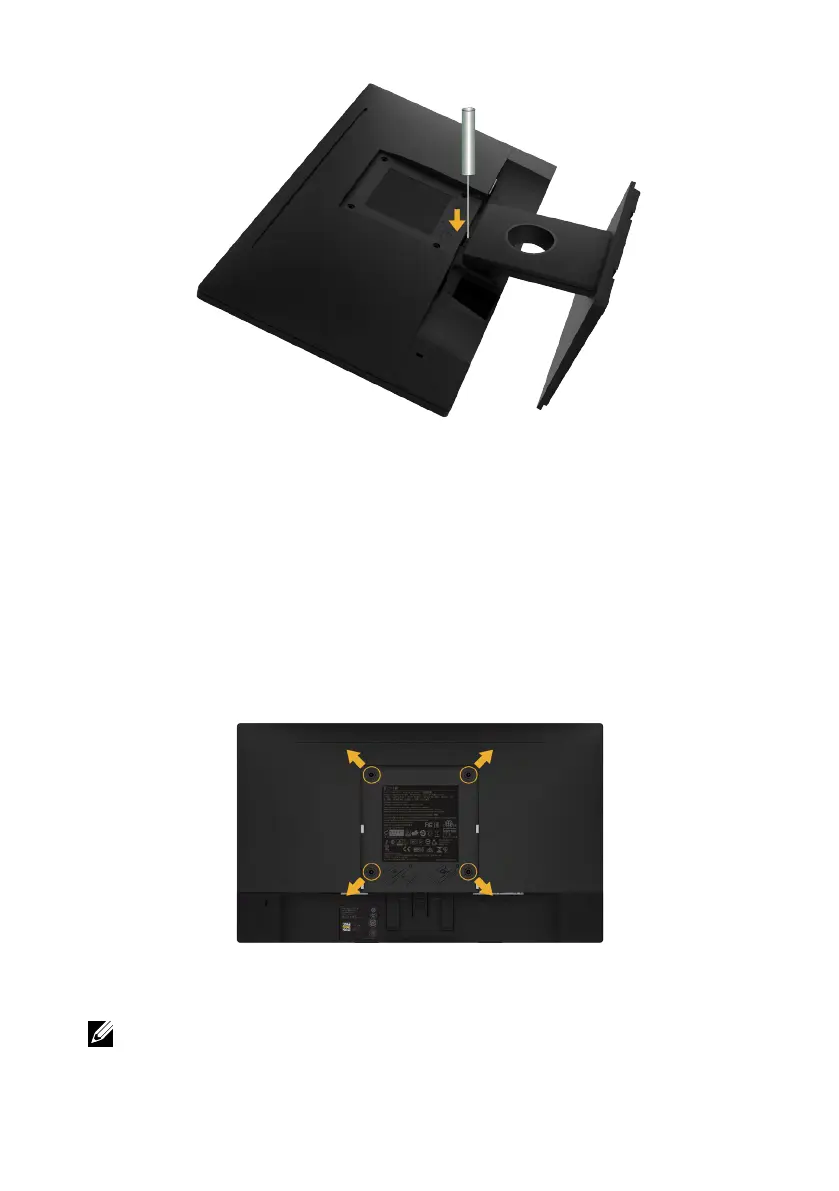

2. Remove the stand assembly to the monitor.
a. Use a long screwdriver to push the release latch located in a hole just above
the stand.
b. Once the latch is released, remove the base away from the monitor.
Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm). Refer to the instructions that come with the VESA-
compatible base mounting kit.
1. Place the monitor panel on a soft cloth or cushion on a stable flat table.
2. Remove the stand.
3. Use a screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the LCD.
5. Mount the LCD on the wall by following the instructions that came with the base
mounting kit.
NOTE: For use only with UL-listed wall-mount bracket with minimum weight/
load bearing capacity of 2.84 kg .
