Overview
The VxRail
™
E560 Series appliance is a hyperconverged appliance that supports:
● Up to two Intel Xeon Processor Scalable Family processors
● 10 x 2.5 inch hard drives or solid state drives (SSDs)
● 24 DIMM slots
● Two AC or DC redundant power supply units
NOTE: The appliance supports only internal, hot swappable hard drives.
NOTE: In this document, HDD generically refers to both HDD and SSD.
Topics:
• Front view
• Back view of the appliance
• Drive indicator codes
• NIC indicator codes
• Power supply unit indicator codes
• iDRAC Direct LED indicator codes
Front view
You can access the components such as power button, NMI button, appliance identification tag, appliance identification button,
and USB ports from the front of the appliance. The diagnostic LEDs are prominently located on the front panel. The hot
swappable hard drives are accessible from the front panel.

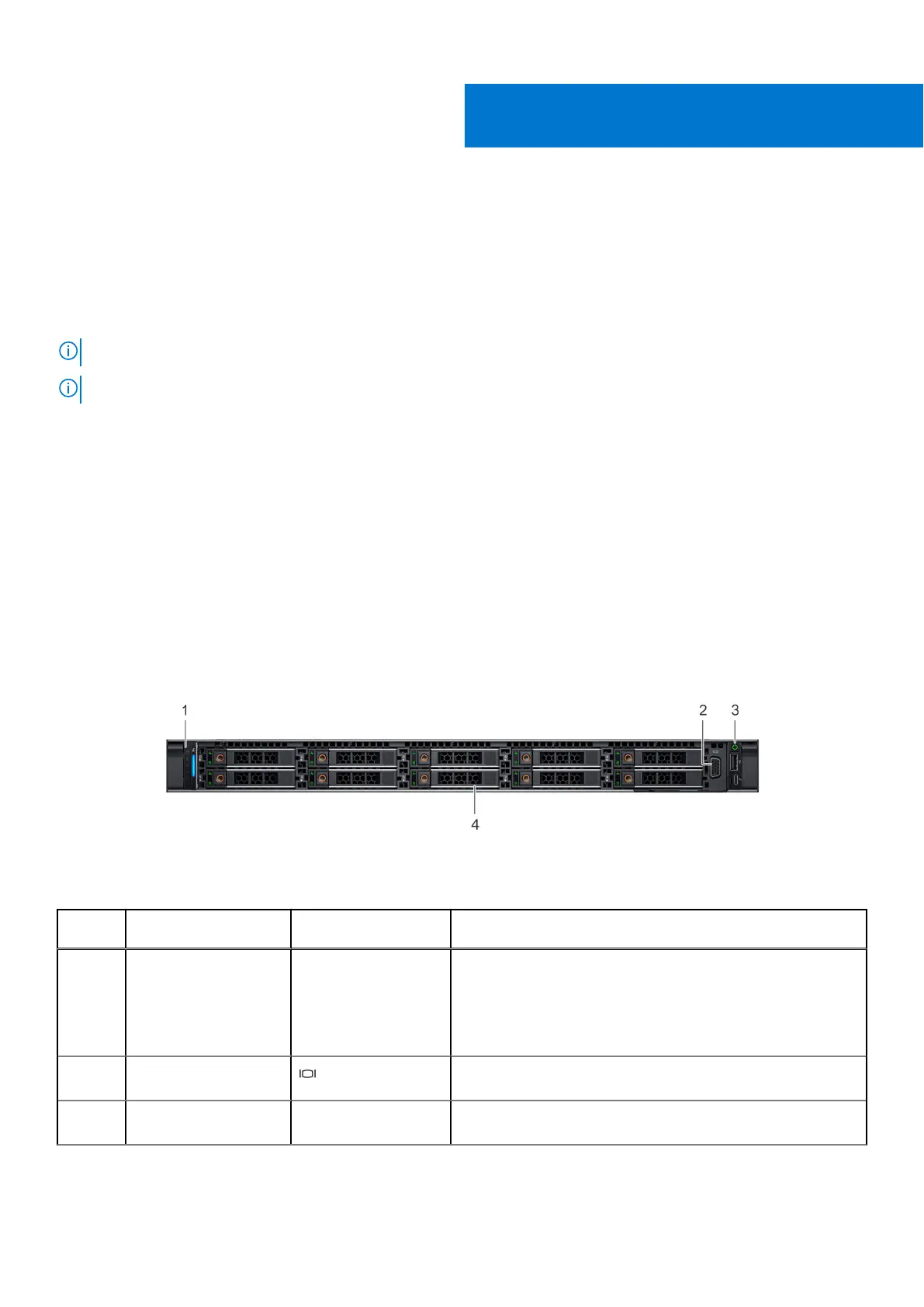

Figure 2. Front view of 10 x 2.5 inch hard drive chassis
Table 8. Front panel features
Item Ports, panels, and
slots
Icon Description
1 Left control panel N/A
Contains the appliance health and appliance ID, status LED.
● Status LED: Enables you to identify any failed hardware
components. There are up to five status LEDs and an overall
appliance health LED (Chassis health and appliance ID) bar.
For more information, see the Status LED indicators section.
2 VGA port Enables you to connect a display device to the appliance. For
more information, see the Technical specifications section.
3 Right control panel N/A Contains the power button, USB port, iDRAC Direct micro-USB,
and the iDRAC Direct status LED.
2
Overview 11
