Drive indicator codes
Each hard drive carrier has an activity indicator and a status indicator. The indicators provide information about the current
status of the hard drive. The activity LED indicates whether the hard drive is currently in use or not. The status LED indicates
the power condition of the hard drive.

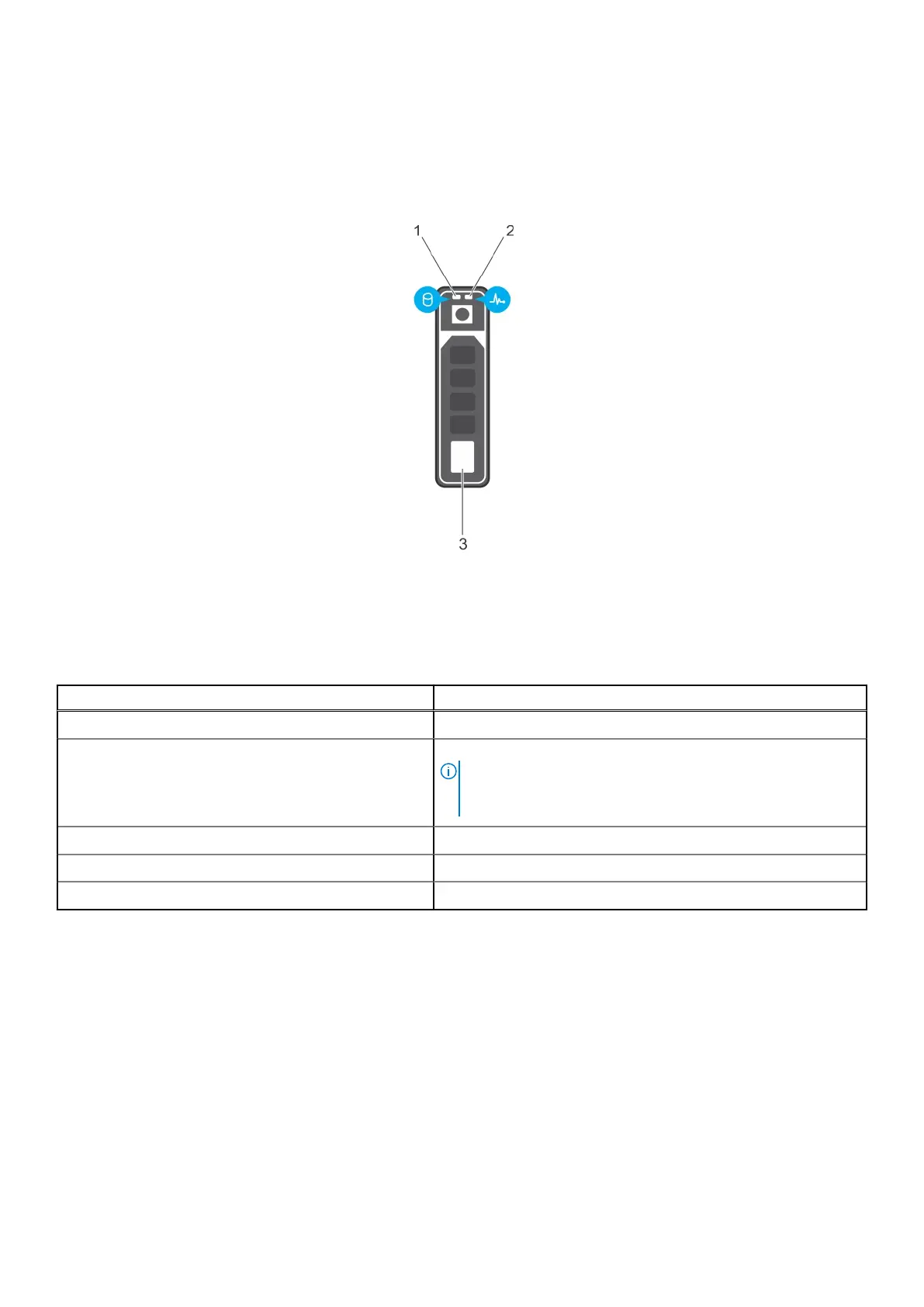

Figure 7. Drive indicators
1. drive activity LED indicator
2. drive status LED indicator
3. drive
Table 14. Drive indicator codes
Drive status indicator code Condition
Flashes green twice per second Identifying drive or preparing for removal.
Off Drive ready for removal.
NOTE: The drive status indicator remains off until all drives
are initialized after the appliance is turned on. Drives are not
ready for removal during this time.
Flashes green, amber, and then turns off Predicted drive failure.
Flashes amber four times per second Drive failed.
Solid green Drive online.
