Dell G3 15 3500 User Manual

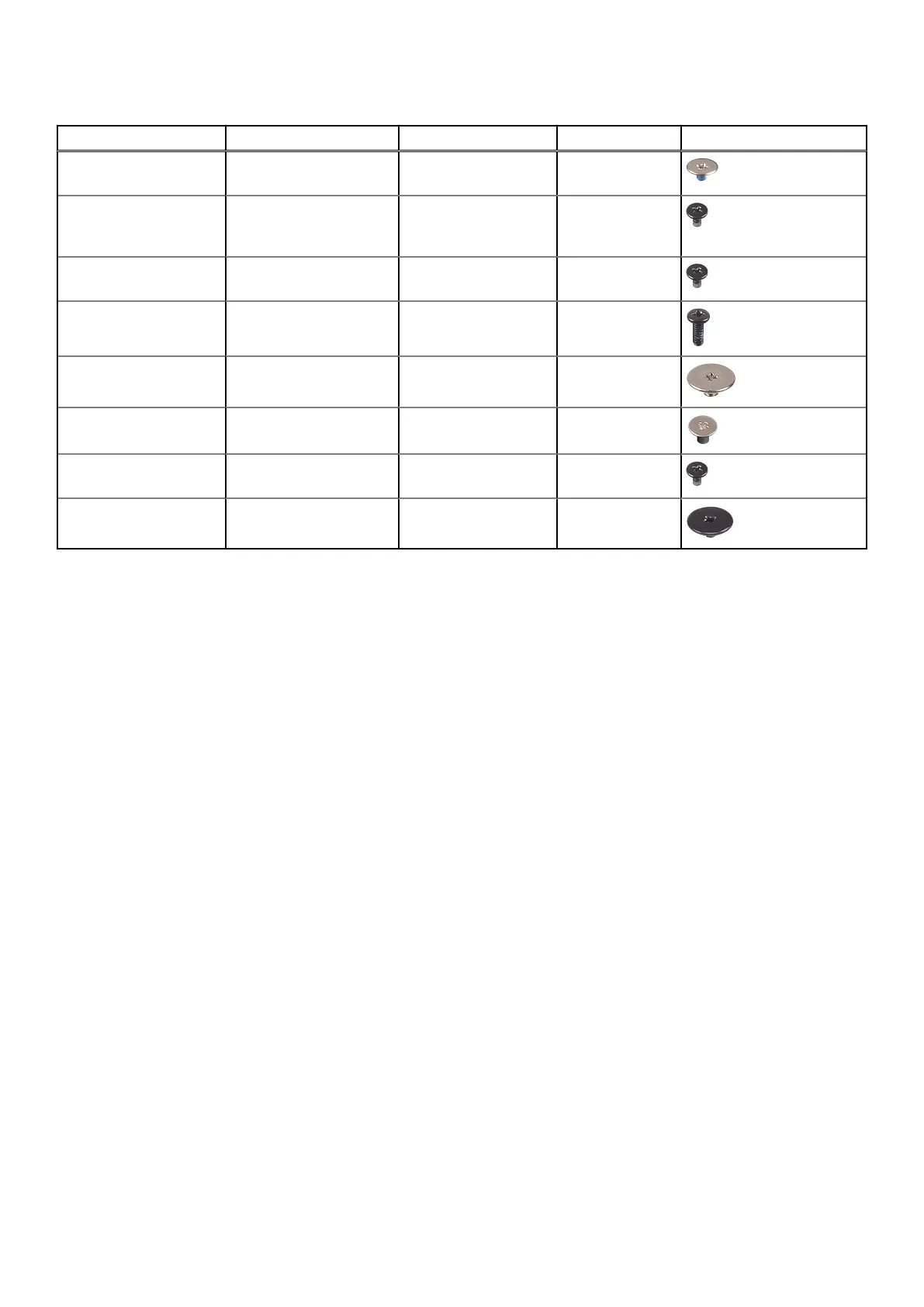

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Touchpad bracket Palm-rest and keyboard
assembly
M2 x 2 (big head) 7
Power button with
fingerprint reader
(optional)
Palm-rest and keyboard
assembly
M2 x 3 2
USB 3.1 Type-C port
bracket
System board M2 x 3 2
Hinge brackets Palm-rest and keyboard
assembly
M2.5 x 5 4
Hinge brackets Display panel M2.5 x 2.5 (big head) 12
Hinge brackets Display panel M2 x 2.5 2
I/O board Palm-rest and keyboard
assembly
M2 x 3 2
System board KB Support M2 x 2 (big head) 2
Major components of Dell G3 15 3500
The following image shows the major components of Dell G3 15 3500.
