Installing the touchpad
Prerequisites
If your are replacing a component, remove the existing component before performing the installation procedure.
About this task

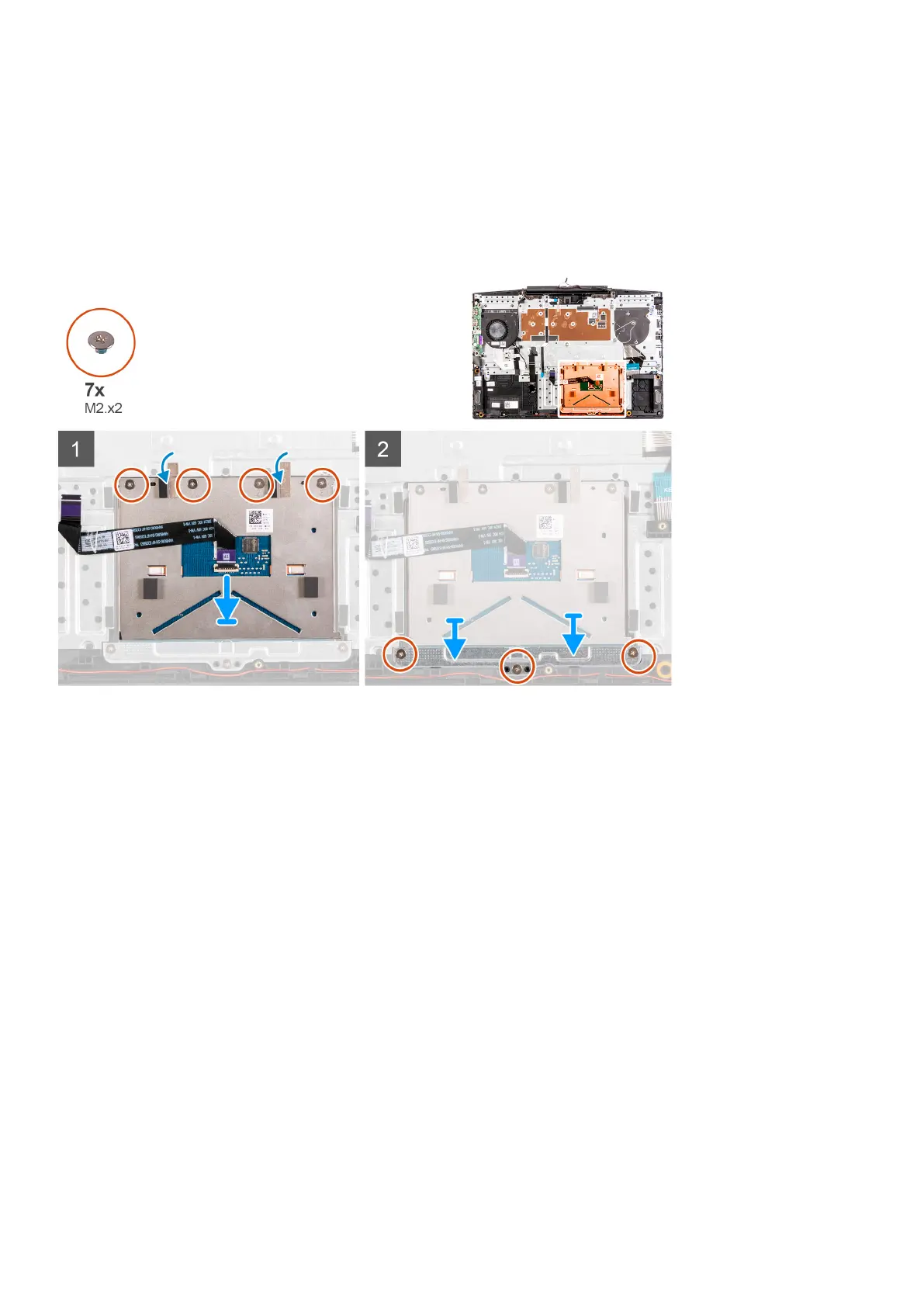

The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.
Steps
1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
2. Replace the four (M2x2) screws and adhere the tape that secures the touchpad to the palm-rest and keyboard assembly.
3. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.
4. Replace the three (M2x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
2. Install the power-adapter port.
3. Install the heat sink.
4. Install the left fan.
5. Install the right fan.
6. Install the coin-cell battery.
7. Install the battery.
8. Install the solid-state drive in M.2 slot two.
9. Install the solid-state drive in M.2 slot one.
10. Install the WLAN card.
11. Install the memory module.
12. Install the base cover.
13. Follow the procedure in After working inside your computer.
