c. If you have replaced the primary storage device that had the operating system installed, see Reinstall Windows 10 to
the Dell factory image using recovery media in the knowledge base article 000176966.
Removing the 2280 solid-state drive/Intel Optane memory module
in M.2 slot one
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: This procedure applies only to computers shipped with a 2280 solid-state drive installed in M.2 slot one.
NOTE: Depending on the configuration ordered, your computer may support either 2230 solid-state drive or 2280 solid-
state drive in M.2 slot one.

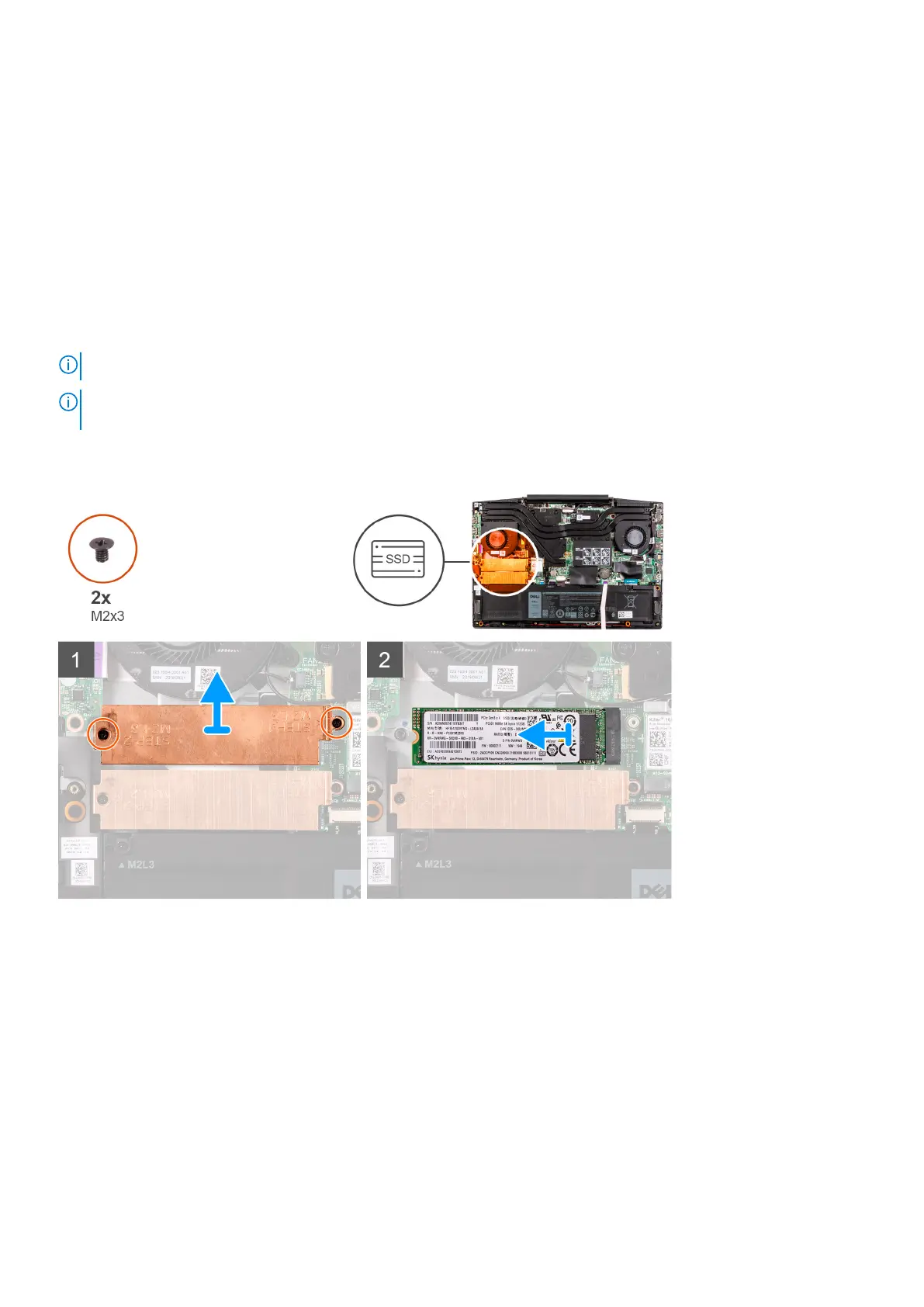

The following image indicates the location of the 2280 solid-state drive/Intel Optane memory module installed in M.2 slot one
and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x3) that secure the solid-state drive bracket to the system board and the palm-rest and
keyboard assembly.
2. Lift the solid-state drive bracket off the palm-rest and keyboard assembly.
3. Slide and lift the solid-state drive/Intel Optane memory module off the SSD1 slot on the system board.
Installing the 2280 solid-state drive/Intel Optane memory module
in M.2 slot one
Prerequisites
If your are replacing a component, remove the existing component before performing the installation procedure.
20
Removing and installing components
