USB and SIM Card Board
Dell™Inspiron™1011ServiceManual
Removing the USB and SIM Card Board
Replacing the USB and SIM Card Board

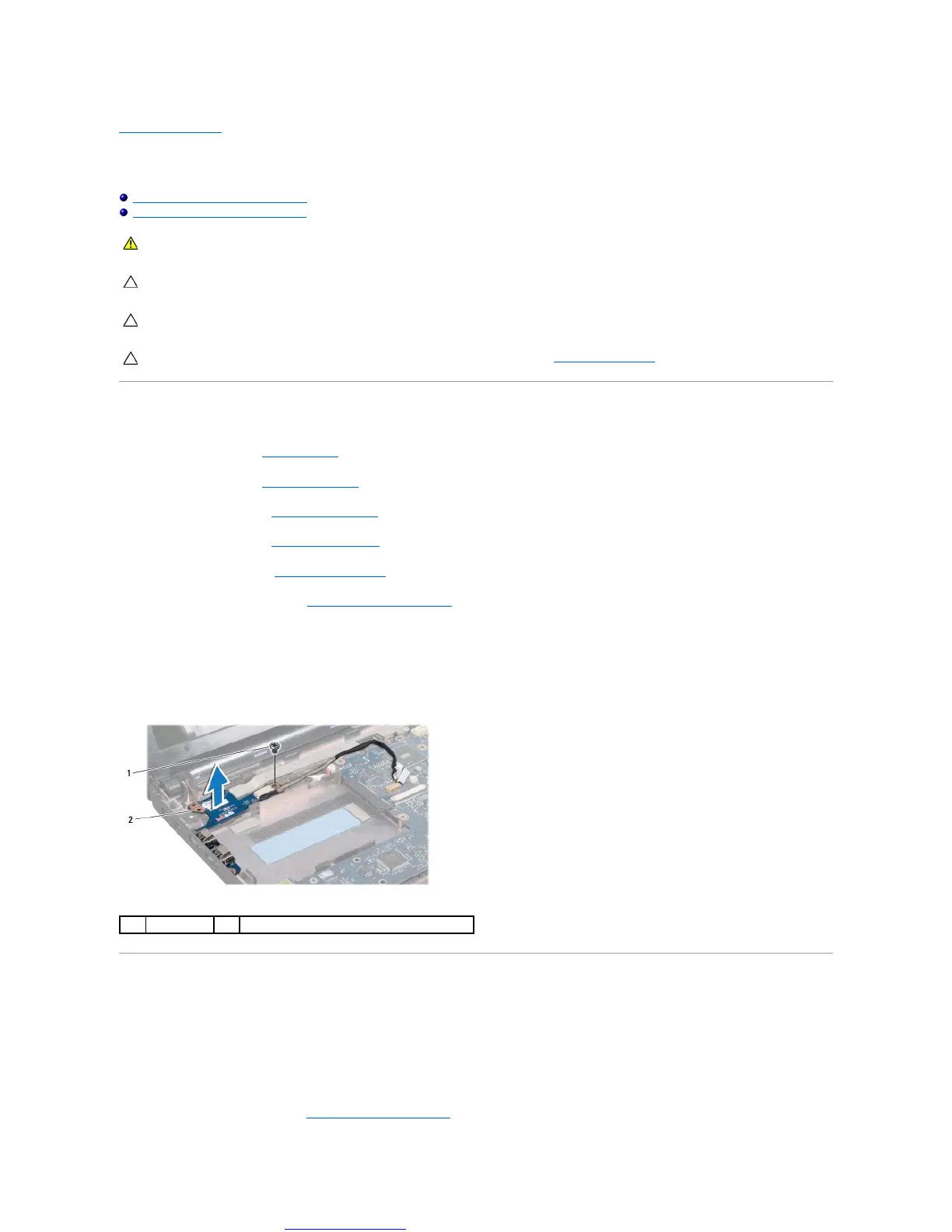

Removing the USB and SIM Card Board
1. Follow the instructions in Before You Begin.
2. Remove the battery (see Removing the Battery).
3. Remove the keyboard (see Removing the Keyboard).
4. Remove the palm rest (see Removing the Palm Rest).
5. Remove the hard drive (see Removing the Hard Drive).
6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).
7. Disconnect the USB and SIM card board cable from the system board connector.
8. Remove the screw that secures the USB and SIM card board to the computer base.
9. Lift the USB and SIM card board out of the computer base.
Replacing the USB and SIM Card Board
1. Align the holes on the USB and SIM card board to the protrusions on the computer base.
2. Replace the screw that secures the USB and SIM card board to the computer base.
3. Connect the USB and SIM card board cable to the system board connector.
4. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
