Steps

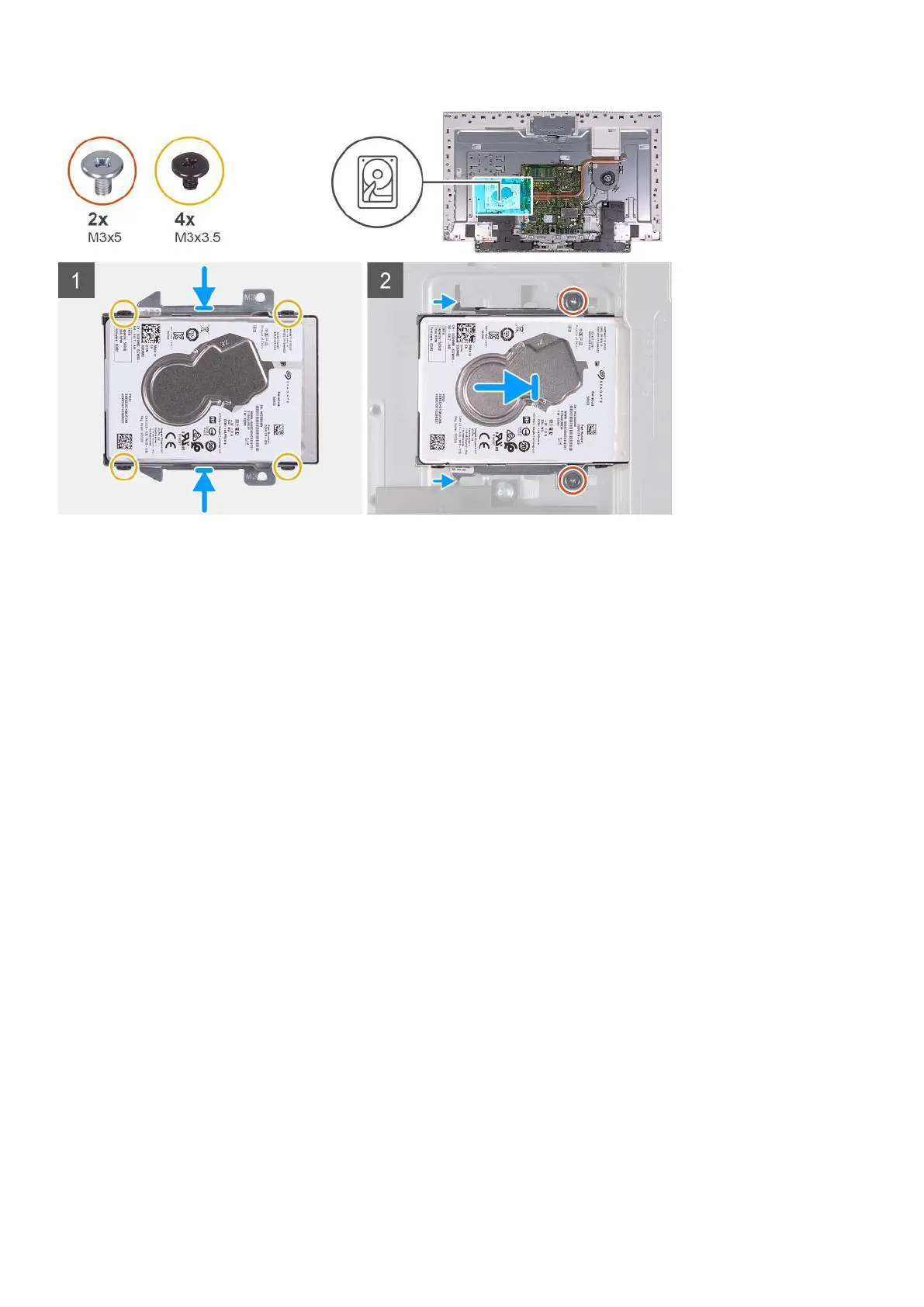

1. Align the screw holes on the hard drive with the screw holes on the hard-drive bracket.
2. Replace the four screws (M3x3.5) that secure the hard-drive bracket to the hard drive.
3. Slide the hard-drive assembly into the slot on the display-assembly base.
4. Replace the two screws (M3x5) that secures the hard-drive assembly to the display-assembly base.
Next steps
1. Install the stand.
2. Install the bottom cover.
3. Install the back cover.
4. Follow the procedure in After working inside your computer.
System-board shield
Removing the system-board shield
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
About this task
The following image indicates the location of the system-board shield and provides a visual representation of the removal
procedure.
20
Removing and installing components
