Steps

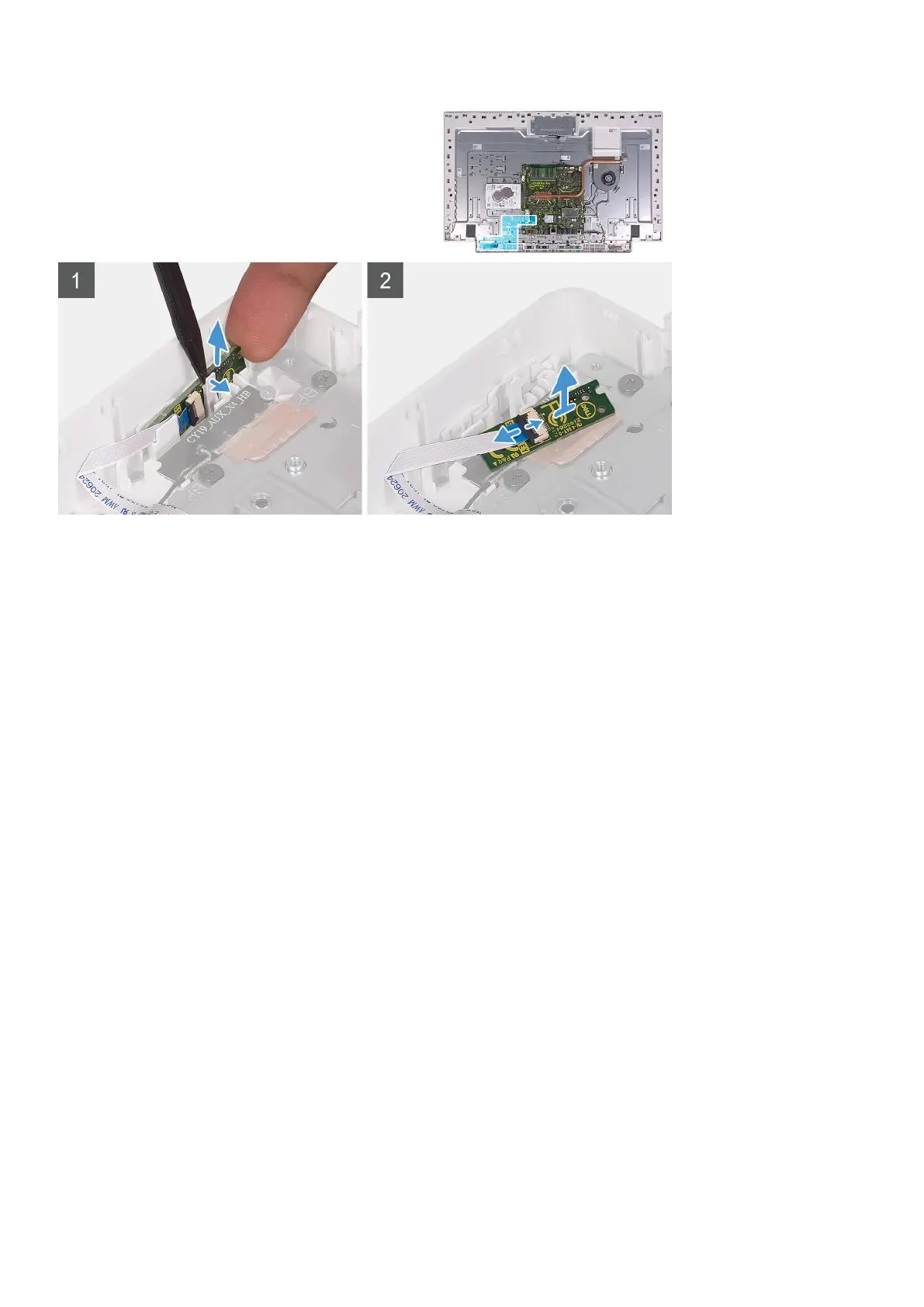

1. Open the notch on the side of the power-button board and lift the power-button board from the slot on the base panel.
2. Open the latch, disconnect the power-button board cable from the power-button board then lift off the power-button
board.
Installing the power-button board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the power-button board and provides a visual representation of the installation
procedure.
44
Removing and installing components
