Steps
1. Remove the 12 screws (M3x5) that secure the display panel to the display-assembly base.
2. Place the computer in an upright position.
3. Holding the top corner, push the display panel away from the display-assembly base using the push holes available on the
display-assembly base.
4. Route the display back-light, touch screen and display cable though the slots on the display assembly base.
5. Lift the display panel up from the display-assembly base.
Installing the display panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

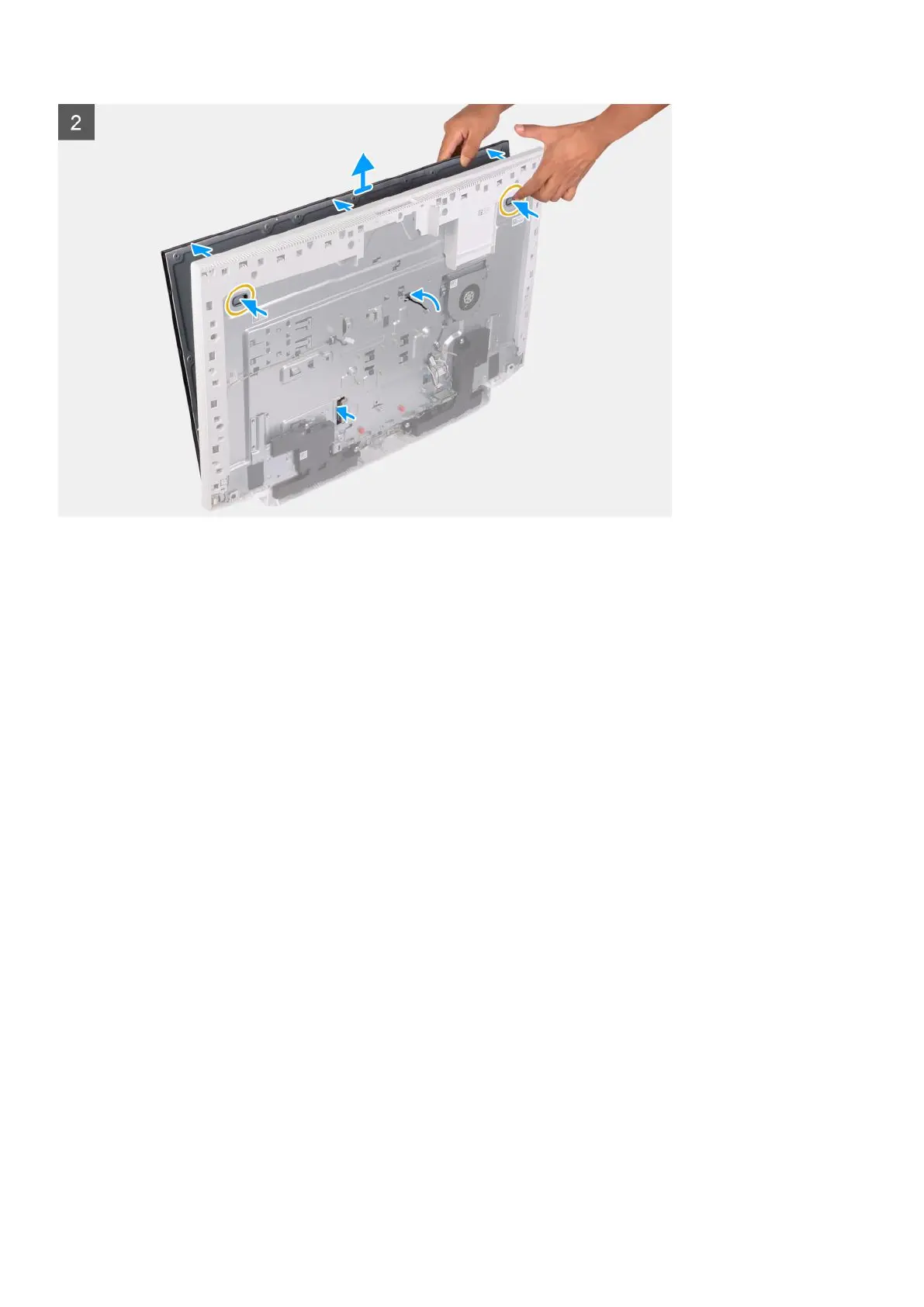

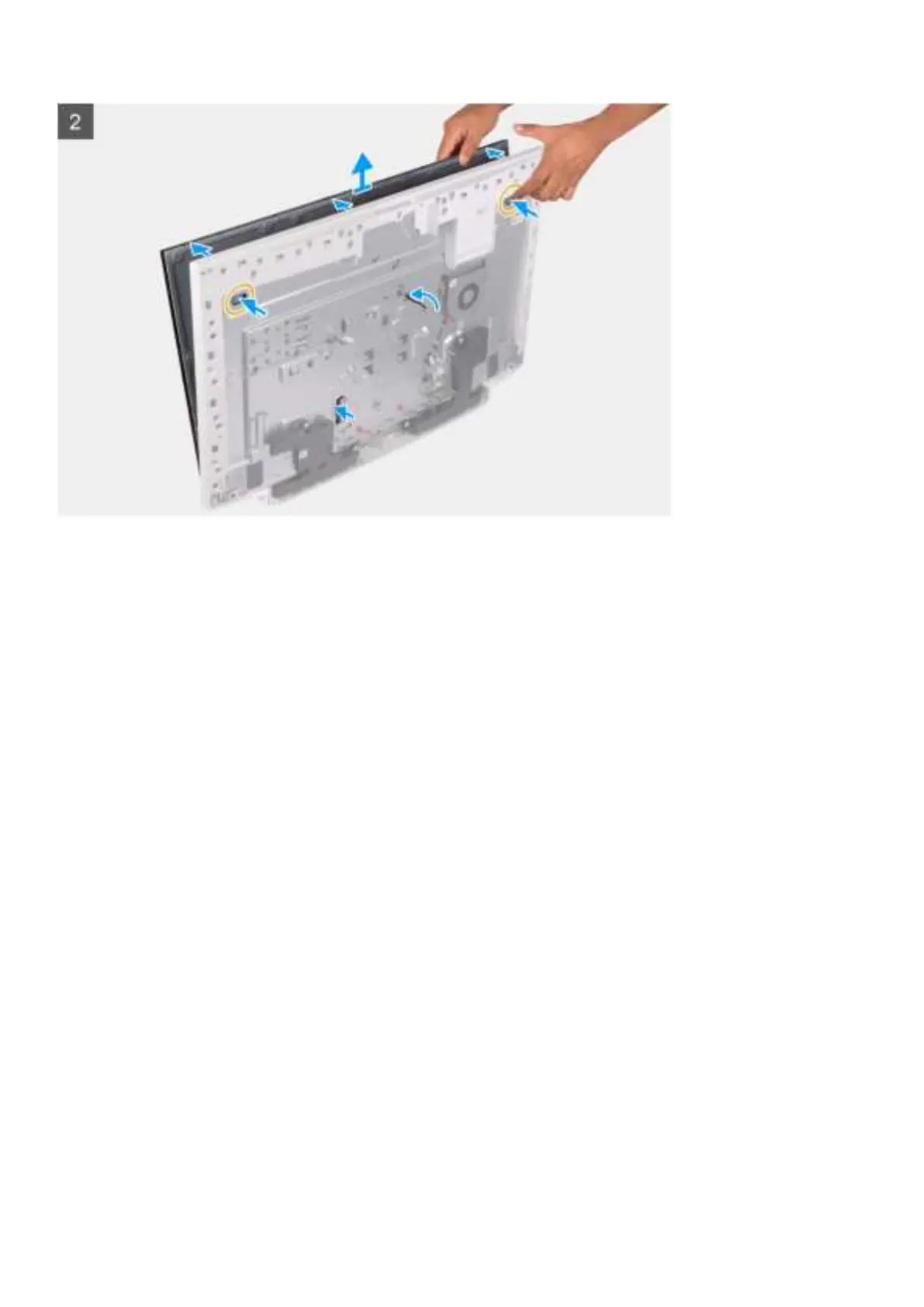

The following image indicates the location of display panel and provides a visual representation of the installation procedure.
