Dell Inspiron 3501 User Manual

Steps

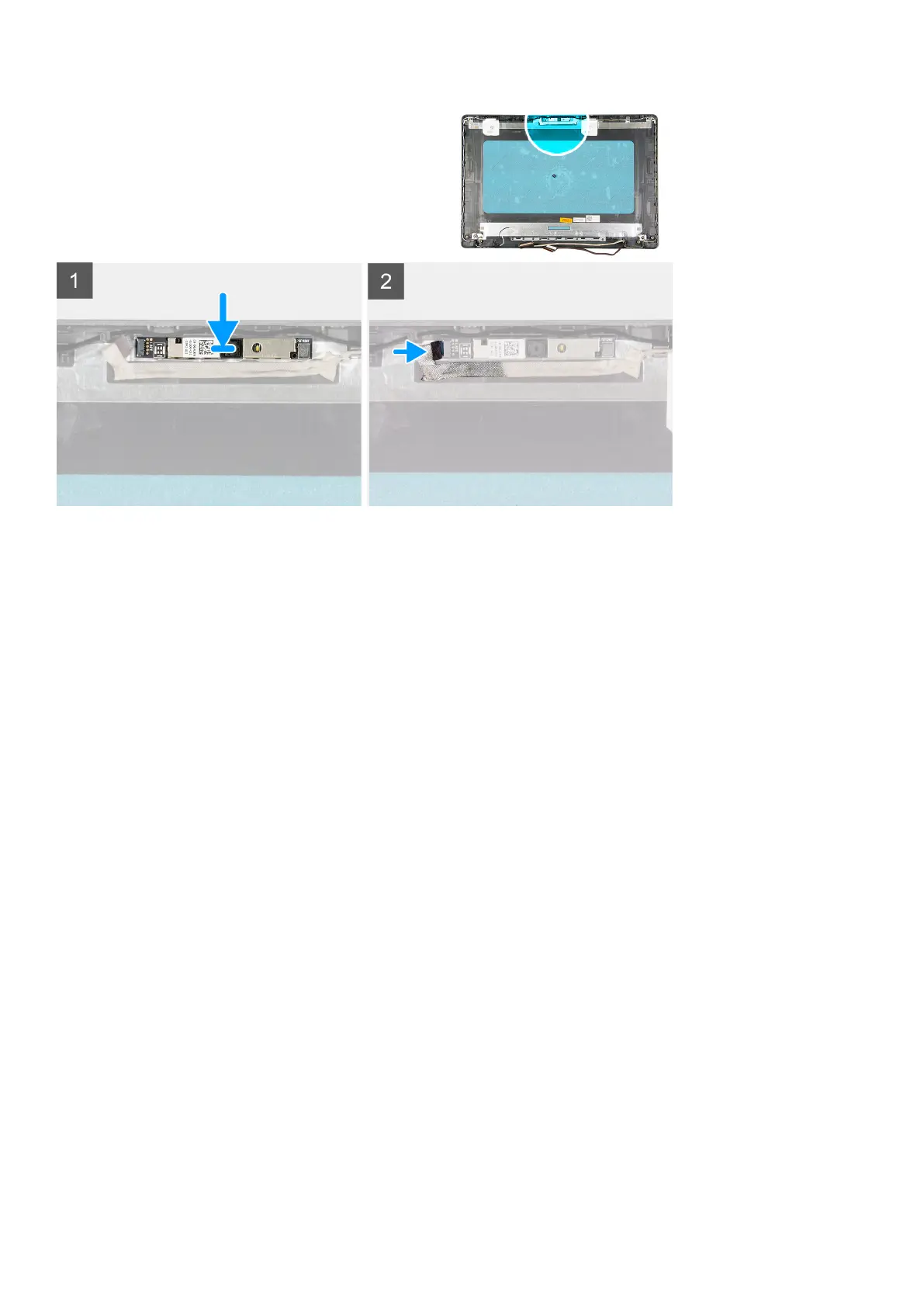

1. Adhere the camera in its slot on the display assembly.
2. Connect the camera cable to the camera.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the wireless card.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following images indicate the location of the touchpad and provides a visual representation of the removal procedure.
Removing and installing components
55

Dell Inspiron 3501 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Home
Battery	3-Cell Battery, 42 WHr (Integrated)
Display	15.6-inch FHD (1920 x 1080) Anti-glare LED-Backlit Non-touch Display
RAM	8GB DDR4 2666MHz
Storage	1TB HDD (5400 rpm)
Weight	1.83 kg
Ports	2 x USB 3.2 Gen 1, 1 x USB 2.0, 1 x HDMI 1.4, 1 x SD card reader, 1 x RJ-45, 1 x Audio jack
Wireless	802.11ac Wi-Fi, Bluetooth
Camera	720p at 30 fps HD camera
Audio	Stereo speakers
Dimensions	363.96 x 249 x 19.9 mm
Processor	Intel Core i3-1005G1
