Dell Inspiron 3501 User Manual

11. Remove the speakers.
12. Remove the I/O board.
13. Remove the power-button with optional fingerprint reader.
14. Remove the system board.
NOTE: The system board can be removed along with the heat sink.
15. Remove the power-adapter port.
About this task

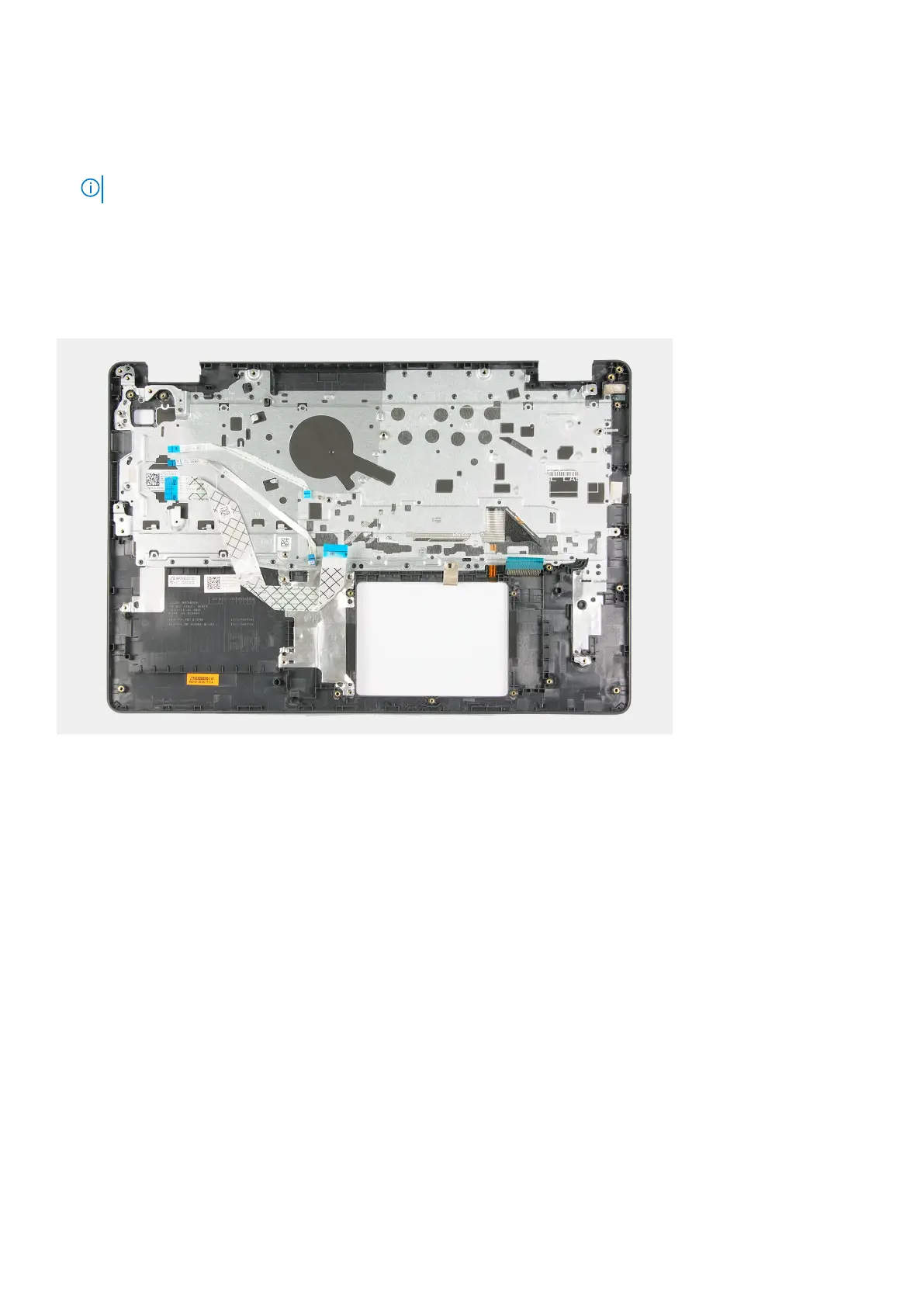

The following images indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
removal procedure.
For computers shipped with a Realtek ALC3204 audio controller
For computers shipped with a Cirrus Logic CS8409 audio controller
78
Removing and installing components

Dell Inspiron 3501 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Home
Battery	3-Cell Battery, 42 WHr (Integrated)
Display	15.6-inch FHD (1920 x 1080) Anti-glare LED-Backlit Non-touch Display
RAM	8GB DDR4 2666MHz
Storage	1TB HDD (5400 rpm)
Weight	1.83 kg
Ports	2 x USB 3.2 Gen 1, 1 x USB 2.0, 1 x HDMI 1.4, 1 x SD card reader, 1 x RJ-45, 1 x Audio jack
Wireless	802.11ac Wi-Fi, Bluetooth
Camera	720p at 30 fps HD camera
Audio	Stereo speakers
Dimensions	363.96 x 249 x 19.9 mm
Processor	Intel Core i3-1005G1
