Removing the Power-
Adapter Port
|
69
Procedure
1
Note the routing of the power-
adapter port cable and
r
emove it from the routing
guides on the computer base.
2
Lift the power-
ad
apter port, along with its cable, off the computer base.

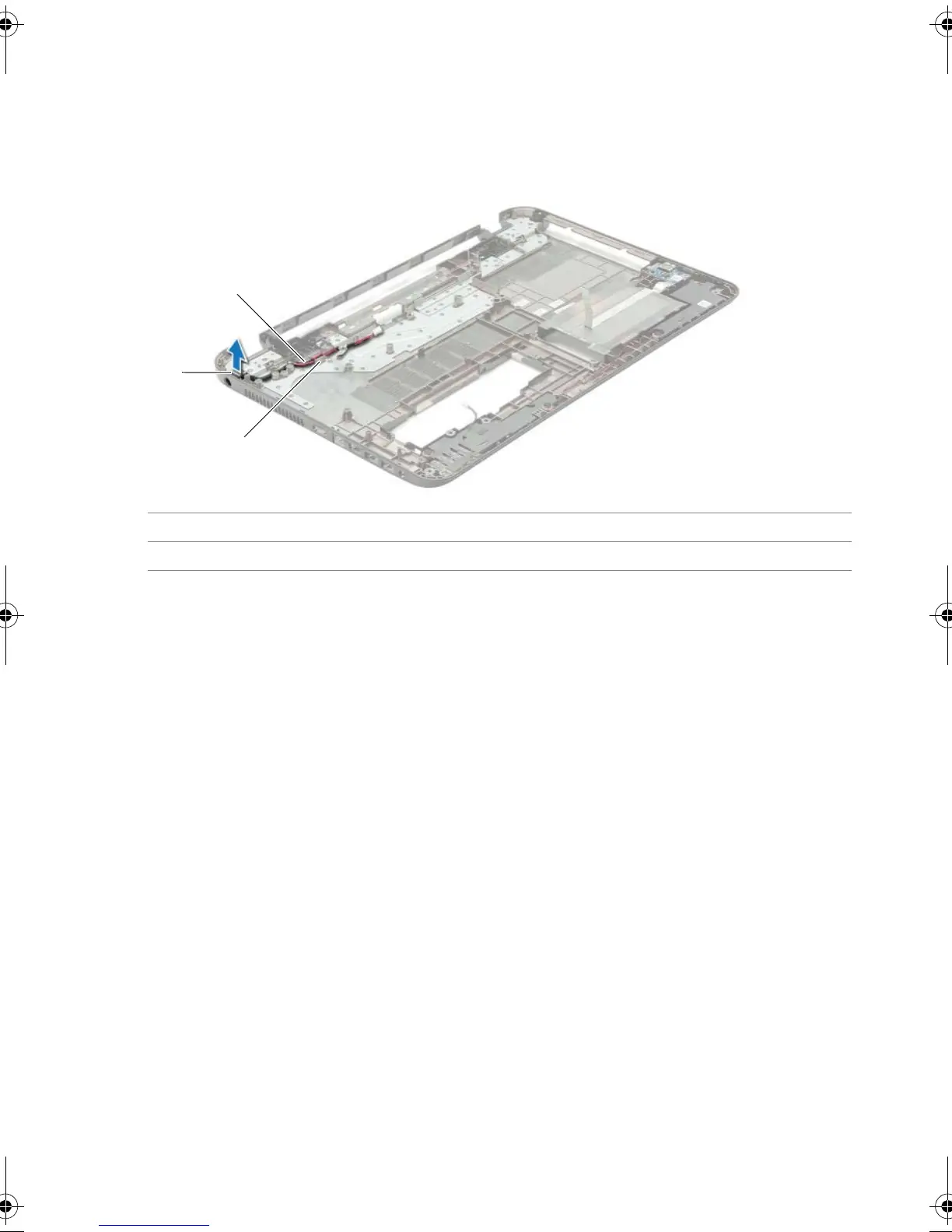

1
power-adapter port cable
2
power-adapter port
3
routing guides
3
1
2
book
.boo
k Page
69 Wednes
d
ay
, Octob
e
r 2,
2013
3:
11 PM
68
70
Table of Contents
Default Chapter
3
Table of Contents
3
Before Working Inside Your Computer
9
Before You Begin
9
Recommended Tools
9
Safety Instructions
10
After Working Inside Your Computer
11
Removing the Battery
12
Procedure
12
Replacing the Battery
13
Procedure
13
Removing the Optical Drive
14
Prerequisites
14
Procedure
14
Replacing the Optical Drive
16
Procedure
16
Postrequisites
16
Removing the Keyboard
17
Prerequisites
17
Procedure
17
Replacing the Keyboard
19
Procedure
19
Postrequisites
19
Removing the Base Cover
20
Prerequisites
20
Procedure
20
Replacing the Base Cover
21
Procedure
21
Postrequisites
21
Removing the Memory Module(S)
22
Prerequisites
22
Procedure
22
Replacing the Memory Module(S)
23
Procedure
23
Postrequisites
23
Removing the Hard Drive
24
Prerequisites
24
Procedure
24
Replacing the Hard Drive
26
Procedure
26
Postrequisites
26
Removing the Coin-Cell Battery
27
Prerequisites
27
Procedure
27
Replacing the Coin-Cell Battery
28
Procedure
28
Postrequisites
28
Removing the Palm Rest
29
Prerequisites
29
Procedure
29
Replacing the Palm Rest
32
Procedure
32
Postrequisites
32
Removing the Wireless Card
33
Prerequisites
33
Procedure
33
Replacing the Wireless Card
35
Procedure
35
Postrequisites
35
Removing the I/O Board
36
Prerequisites
36
Procedure
36
Replacing the I/O Board
37
Procedure
37
Postrequisites
37
Removing the System Board
38
Prerequisites
38
Procedure
39
Replacing the System Board
42
Procedure
42
Postrequisites
43
Removing the Fan
44
Prerequisites
44
Procedure
44
Replacing the Fan
45
Procedure
45
Postrequisites
45
Removing the Heat Sink
46
Prerequisites
46
Procedure
46
Replacing the Heat Sink
47
Procedure
47
Postrequisites
47
Removing the Hard-Drive Interposer Board
48
Prerequisites
48
Procedure
48
Replacing the Hard-Drive Interposer Board
49
Procedure
49
Postrequisites
49
Removing the Speakers
50
Prerequisites
50
Procedure
51
Replacing the Speakers
52
Procedure
52
Postrequisites
52
Removing the Display Assembly
53
Prerequisites
53
Procedure
54
Replacing the Display Assembly
55
Procedure
55
Postrequisites
55
Removing the Display Bezel
56
Prerequisites
56
Procedure
57
Replacing the Display Bezel
58
Procedure
58
Postrequisites
58
Removing the Display Hinges
59
Prerequisites
59
Procedure
60
Replacing the Display Hinges
61
Procedure
61
Postrequisites
61
Removing the Display Panel
62
Prerequisites
62
Procedure
63
Replacing the Display Panel
64
Procedure
64
Postrequisites
64
Removing the Camera Module
65
Prerequisites
65
Procedure
66
Replacing the Camera Module
67
Procedure
67
Postrequisites
67
Removing the Power-Adapter Port
68
Prerequisites
68
Procedure
69
Replacing the Power-Adapter Port
70
Procedure
70
Postrequisites
70
Flashing the BIOS
71
4
