A Tour of Your Computer 23
CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power
strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip
or electrical outlet may cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,
and pull firmly but gently to avoid damaging the cable.
Bottom View
BATTERY — When a battery is installed, you can use the computer without connecting the computer to an
electrical outlet. For more information, see "Using a Battery" on page 37.
MEMORY MODULE COVER — Covers the compartment that contains the memory modules. For more information,
see page 115.
BATTERY-BAY LATCH RELEASE — Releases the battery from the battery bay. See "Replacing the Battery" on
page 41.
FAN — The computer uses a fan to create airflow through the vents, which prevents the computer from
overheating.

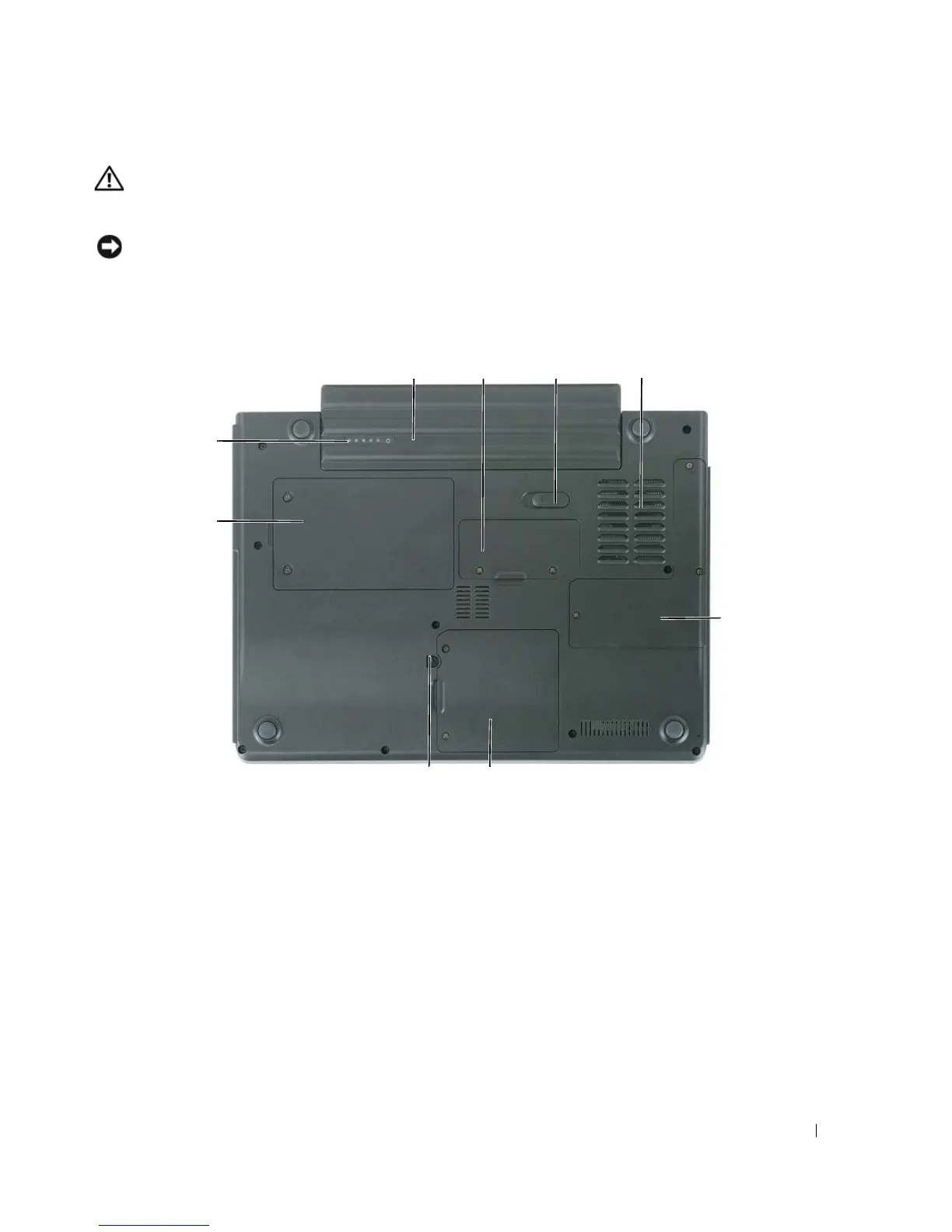

1 battery 2 memory module cover 3 battery-bay latch release
4 fan vent 5 processor and thermal
module cover
6 modem/Mini-Card/
wireless cover
7 optical-drive locking screw 8 hard drive 9 battery charge gauge
